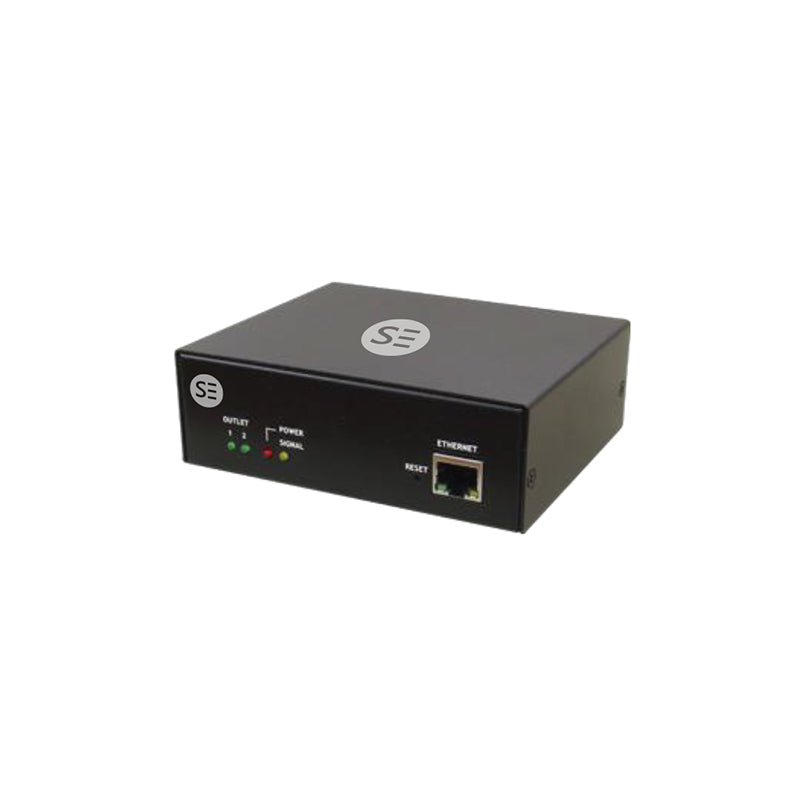

The Serveredge switched PDU enables the user to control and monitor the power remotely. The web based interface allows the user switch on/off functionality for power cycling of connected equipment remotely on the IEC C13 Output Port. It allows for a user defined alarm threshold for overloads and warnings.
PRODUCT FEATURE
* Remote power management (Power cycling/ Monitoring) of connected equipment
* Full-featured network management interface via Http, Https, SNMP, DHCP, UDP protocols
* Allows user with Individual outlet control for remote switch on/off (power cycling)
* Capable of Total Remote Power Monitoring by Meter, Web, SNMP
* Supports user defined alarm threshold for overloads, warnings are raised by sending emails, and traps information in case of a threshold breach.
* Email, Trap, Audible Alarm can be set up by user as alarms
* Compliant CE, FCC, RoHS and C-Tick
* Warranty: 2 Years
WARNING: It is recommended that no more than one device be power on each output port, not complying with this recommendation may result in a void of warranty.
PRODUCT SPECIFICATION
General |
|

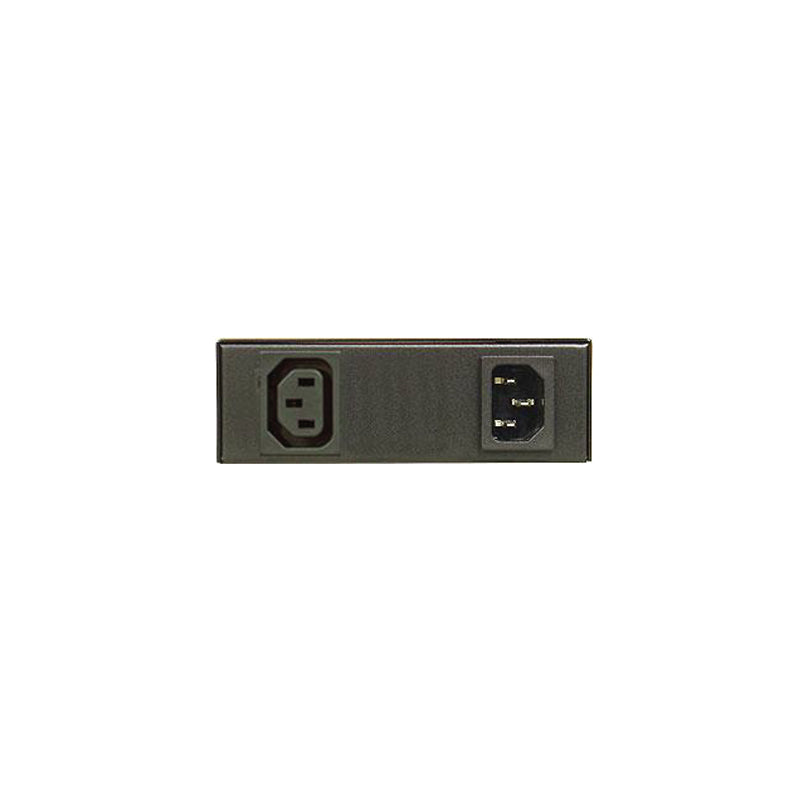

| Output | IEC320 C13 x 1 |
| Input |

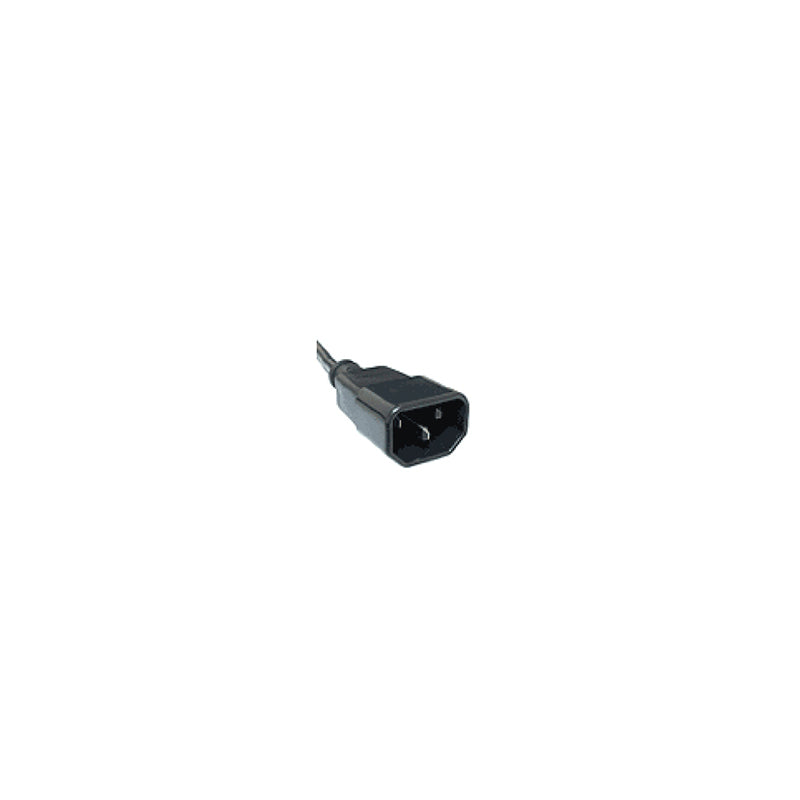

IEC320 C14 Inlet x 1; |
| Reset |
To reset the system back to default, press |
| Default IP | 192.168.0.200 |
| MAC Address | 00:06:18:75:38:1E |
Communication |
|
| Reset Indication | Yellow LED x 1 |
| Power Status | Red LED x 1 |
| Output Status | Green LED x 1 |
| Network | RJ45 for Ethernet x 1 |
Operation |
|
| Nominal Voltage | 230V |
| Voltage | 200V~240V full range |
| Frequency | 50/60Hz full range |
| Max. Output Current | 10 Amp |
| Temperature | 0 ~ 40 Celsius degree |
| Humidity | 0% ~ 90% |
| Size (mm) | 120 x 100 x 40 |
| Weight (kg) | 0.8 |
PACKAGING INCLUDES
| SEDG-1PSW-10A | 1 |
| Free Bundled Software | 1 |
| User Manual | 1 |
