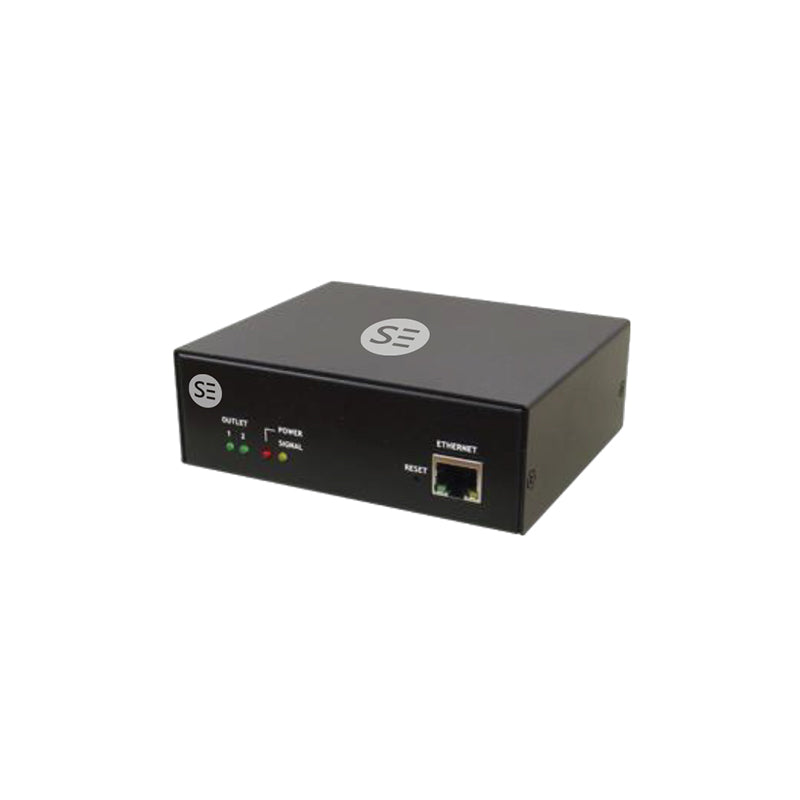

2 Port Switched PDU, (2) IEC320 C13 Output & (1) IEC320 C14 Input, 10A, 240V

SKU: SEDG-2PSW-10A

The Serveredge SEDG-1PSW-10A is a 2 port Switched Power Distribution Unit (PDU) that powers and protects your equipment in your rack cabinets.
2 Years
Manufacturer's Warranty



The Serveredge switched PDU enables the user to control and monitor the power remotely. The web based interface allows the user switch on/off functionality for power cycling of connected equipment remotely on each individual C13 Output Port. It allows for a user defined alarm threshold for overloads and warnings.



PRODUCT FEATURE




* Remote power management (Power cycling/ Monitoring) of connected equipment
* Full-featured network management interface via Http, Https, SNMP, DHCP, UDP protocols
* Allows user with Individual outlet control for remote switch on/off (power cycling)
* Capable of Total Remote Power Monitoring by Meter, Web, SNMP
* Supports user defined alarm threshold for overloads and warnings raised by sending emails, and traps information in case of a threshold breach.
* Email, Trap, Audible Alarm can be set up by user as alarms
* Compliant with CE, C-tick, FCC and RoHS
* Warranty: 2 Years




 WARNING: It is recommended that no more than one device be power on each output port, not complying with this recommendation may result in a void of warranty.




PRODUCT SPECIFICATION




General

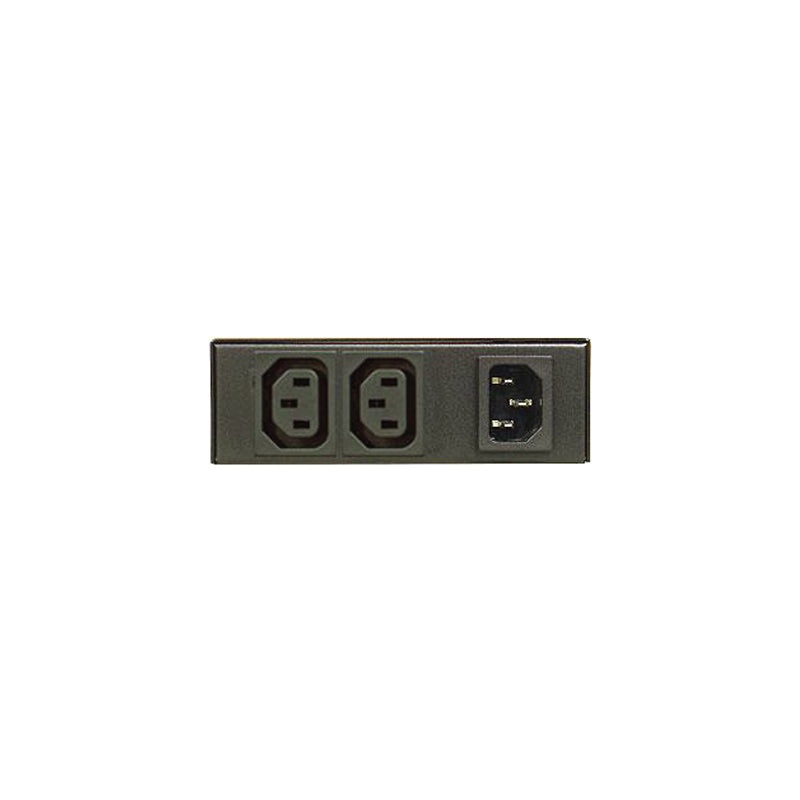

Output IEC320 C13 x 2
Input

IEC320 C14 Inlet x 1;

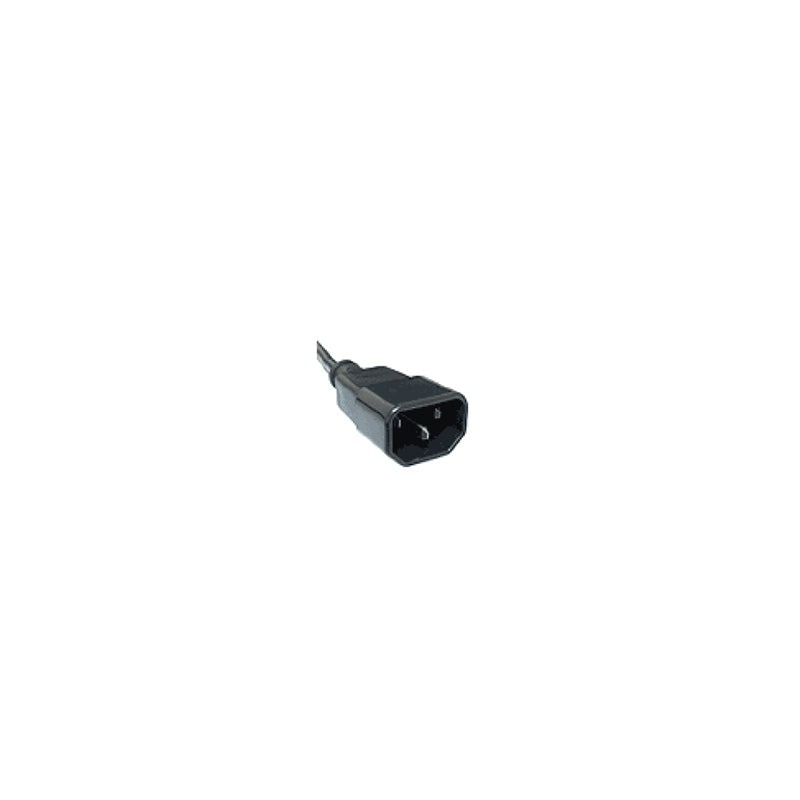

Enclosed IEC320 C13 to C14 Power Cord
1.8 Meters long

Reset

To reset the system back to default, press
and hold the reset button and release it after
the Signal LED flashed 6 times.

Default IP 192.168.0.200
MAC Address 00:06:18:75:38:1E



Communication

Reset Indication Yellow LED x 1
Power Status Red LED x 1
Output Status Green LED x 1
Network RJ45 for Ethernet x 1



Operation

Nominal Voltage 230V
Voltage 200V~240V full range
Frequency 50/60Hz full range
Max. Output Current 10 Amp
Temperature 0 ~ 40 Celsius degree
Humidity 0% ~ 90%
Size (mm) 120 x 100 x 40
Weight (kg) 0.8





PACKAGING INCLUDES



SEDG-1PSW-10A 1
Free Bundled Software 1
User Manual 1
