24 Port Switched PDU (21) IEC C13 Output, (3) IEC C19 Output & (1) IEC C20, 16A, 240V

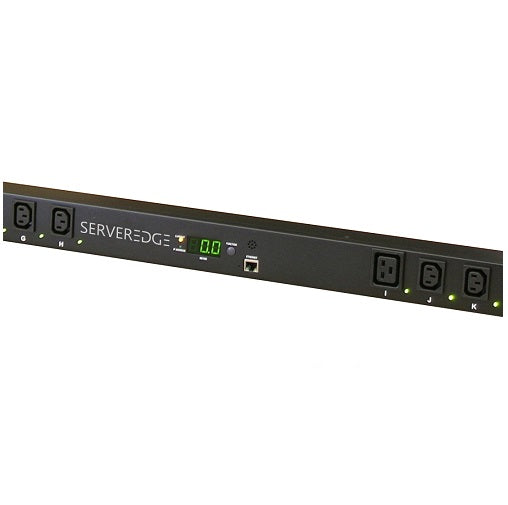

Serveredge Switched rack mountable PDU (SEDG-24PSW-C13C16-16A) provides 21 X IEC 13 outputs & 3 X IEC19 outputs to power all your rack equipment with a 16A IEC 20 input. The PDU is vertically mountable and save valuable rack space. The Serveredge switched PDU enables the user to control and monitor the power remotely. The web based interface allows the user switch on/off functionality for power cycling of connected equipment remotely on each individual output port. A true digital RMS meter allows real time current monitoring of the connected equipment with data logging and reporting. It allows for a user defined alarm threshold for overloads and warnings.

PRODUCT FEATURE

* Remote power management (Power cycling/ Monitoring) of connected equipment
* 21 X IEC 13, 3 X IEC C19 Output & IEC C20 Input with a 3m power Cord
* Full-featured network management interface via Http, Https, SNMP, DHCP, UDP protocols
* Allows user with Individual outlet control for remote switch on/off (power cycling)
* Capabale of Total Remote Power Monitoring by Meter, Web, SNMP, Free Bundle Software via the True RMS current meter
* Supports user defined alarm threshold for overloads and warning raised by sending emails and traps information in case of a threshold breach.
* Email, Trap, Audible Alarm can be set up by user as alarms

 WARNING: It is recommended that no more than one device be power on each output port, not complying with this recommendation may result in a void of warranty.

PRODUCT SPECIFICATION

PACKAGING INCLUDES
