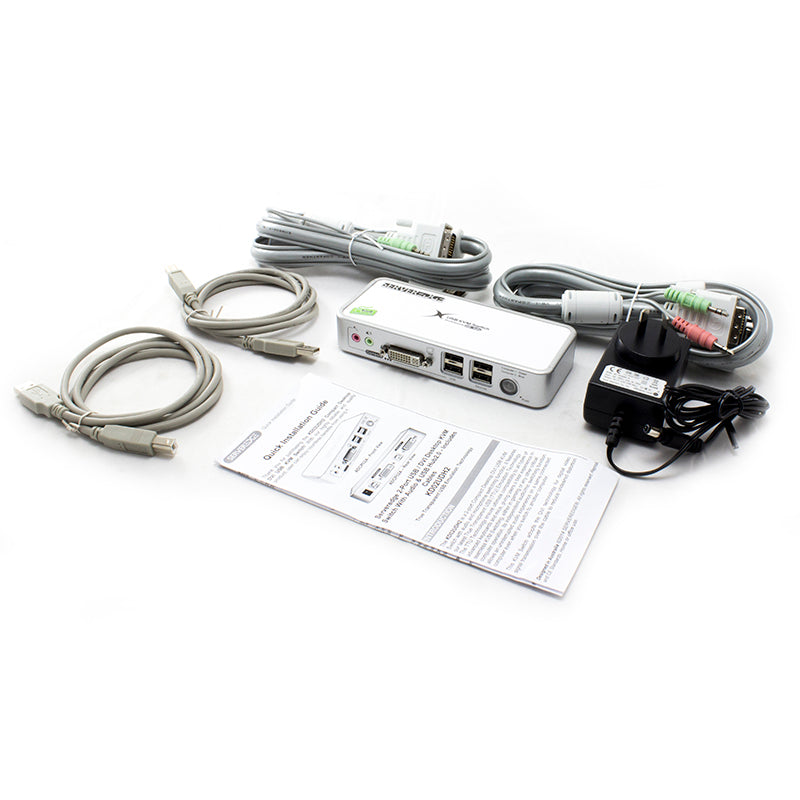

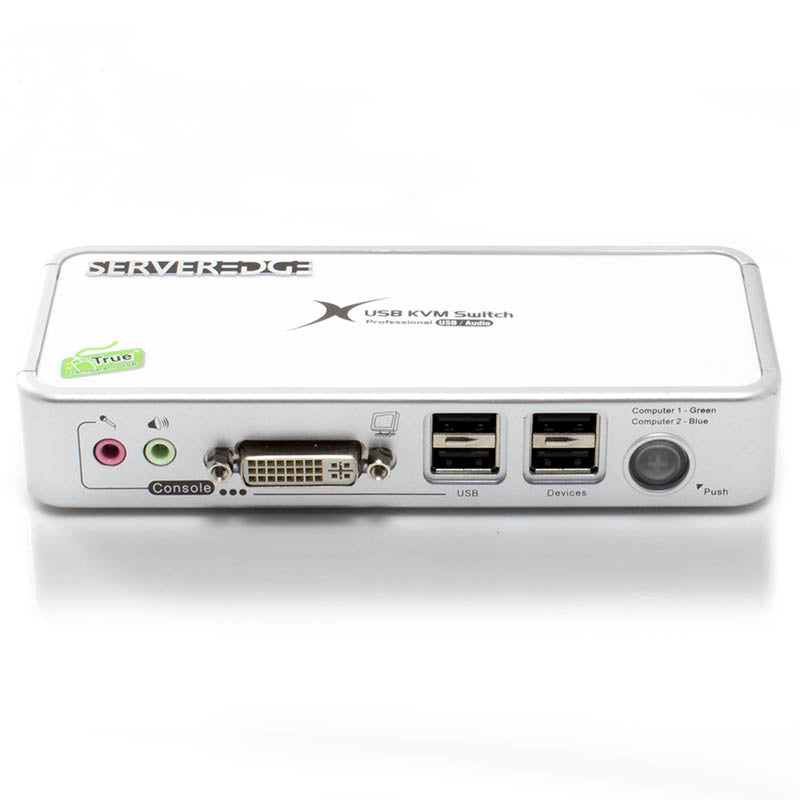

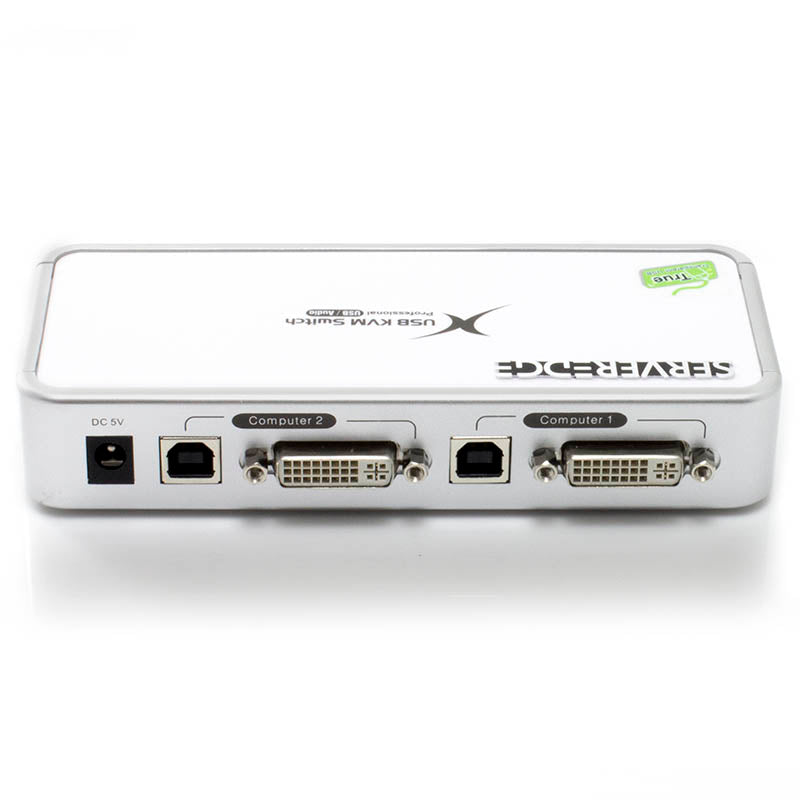

The Serveredge KD02UDH2 is a 2-port Slim Palmtop USB KVM Switch with audio and microphone switching function. It allows you to access, control, boot and reboot 2 DVI-enabled USB multimedia computers. The independent audio/mic switching function allows an uninterrupted audio experience on a same connected computer even when you switch to another computer.
PRODUCT FEATURE
* 2-port Compact Desktop DVI USB KVM Switch with Audio & Mic and 2 extra USB 2.0 device ports
* True Transparent USB (TTU) Emulation technology with an integrated ASIC
* Full driver support for all types of USB keyboard and mouse
* All time DDC emulation for video compatibility and stability under intensive switching
* TMDS and HDCP specifications complaint
* Audio and Microphone switching for uninterrupted multimedia experience across multiplatforms.
* USB 2.0 specification compliant
* Independent/simultaneous switching of both PC and audio/mic channel
* Multiplatform support for PCs and Macintosh
* User definable hotkeys
* Channel selection by push button and keyboard hotkeys
* LED indicators for easy status monitoring
* DVI Digital video resolution 1920 x 1200 / Analog video resolution 2048 x 1536
* USB interface power with optional DC 5V2A external power adapter
* Low power consumption using ASIC
* Warranty : 3-years
PRODUCT SPECIFICATION
Product Description |
2-Port DVI USB Compact KVM Switch w/ Audio, Mic & Hub |
| Number of Ports | 2 |
| Number of Console | 1 |
| Console Keyboard Connector | USB 2.0 Type A Female |
| Console Mouse Connector | USB 2.0 Type A Female |
| Console Video Connector | DVI-I Female |
| Console Audio/Mic Connector | 2 x 3.5mm Audio/Mic Jack Female |
| Console USB Hub Ports | 2 x USB 2.0 Type A Female |
| PC Keyboard Connector | 2 x USB Type B Female |
| PC Mouse Connector | Via PC Keyboard Connector |
| PC Video Connector | 2 x DVI-I Female |
| PC Audio/Mic Connector | Via Video Connector |
| PC selection | Push Button / Hotkeys |
| PC port LED | 1 (Green / Blue) |
| Analog Display Resolution | 2048 x 1536 |
| Digital Display Resolution | 1920 X 1200 |
| Keyboard & Mouse Emulation | Yes (TTU) |
| Auto Scan Delay Time | 5~100 sec |
| Operation Temperature | 0 ~ 40°C |
| Storage Temperature | -20 ~ 60°C |
| Humidity | 0~90% RH, Non-Condensing |
| Power type | 2.5mm Power Jack |
| Power Adapter | DC 5V/2A |
| Weight | 170g |
| Dimension(L×W×H) | 154 x 65 x 27mm |
| Safety / Emission | FCC, CE |
