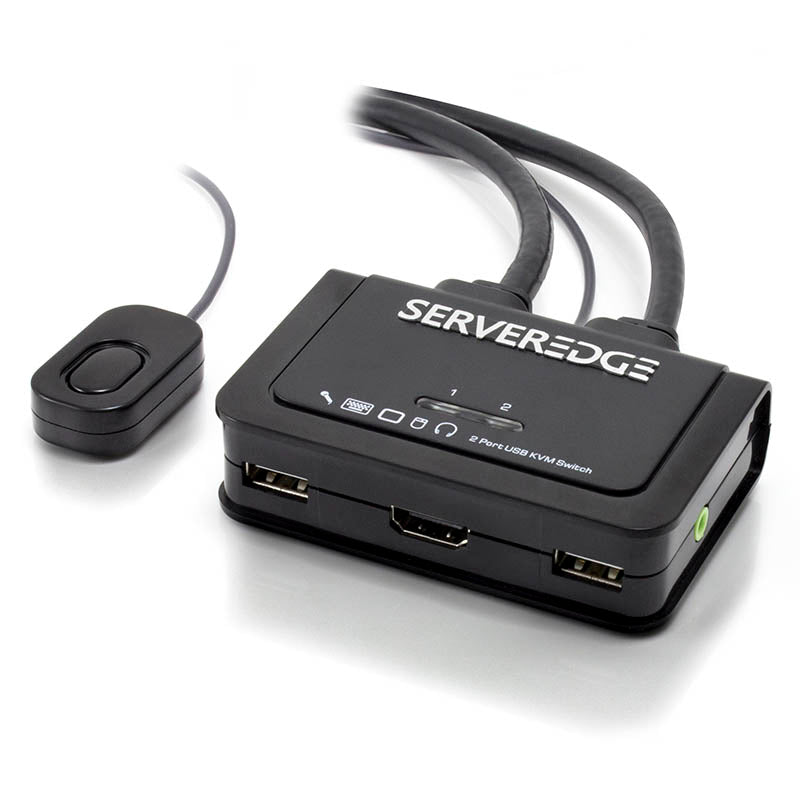

The Serveredge KP02UHA is a 2-port compact HDMI USB “Cable KVM Switch” with 2 sets of fixed KVM cables and a wired QuickSwitch! button for easy connection to your two computers. It allows you to access, control, boot and reboot two HDMI and USB-enabled multimedia computers with only one USB keyboard, mouse, HDMI-enabled multimedia display and an extra set of speakers. For easy and fast switching between two computers, you can use either keyboard hotkeys, the QuickSwitch! button or the Switching Software Client installed on your PCs!
PRODUCT FEATURE
* 1 x wired QuickSwitch button for instant switching between two computers

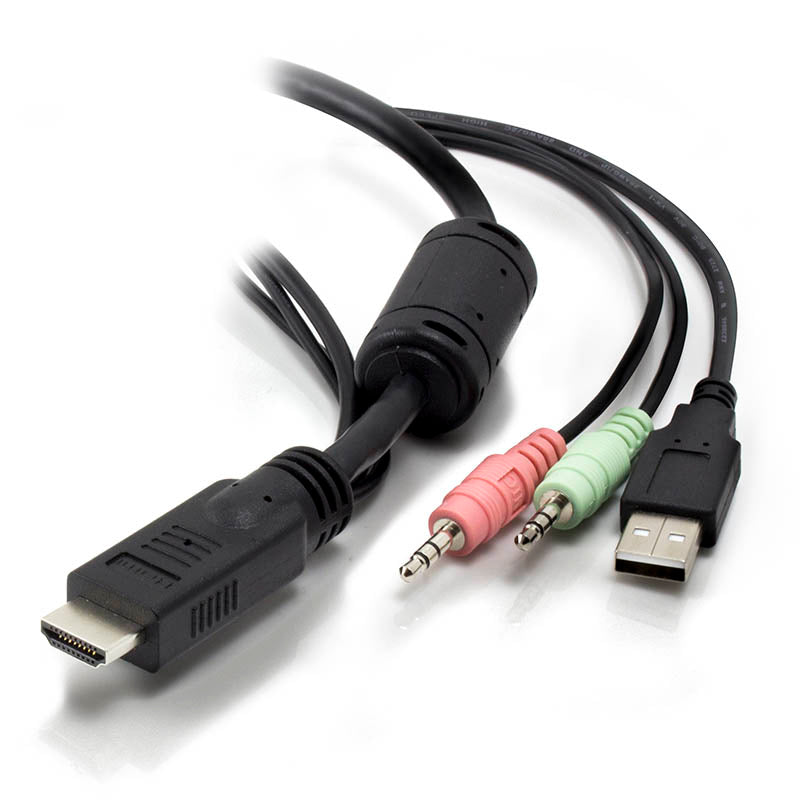

* 2 x fixed HDMI USB KVM audio / mic Combo cables
* Windows and Mac switching software support
* USB 2.0 hub ports for keyboard, mouse or other high-speed USB devices
* HDMI digital video up to 1080p / Full HD
* Independent / simultaneous switching of PC and audio/mic ports
* User-definable hotkeys and universal hotkeys for computer switching
* Active Sync Replication for DDC emulation
* LED indicators for easy status monitoring
* Warranty : 3-years
PRODUCT SPECIFICATION
Product Description |
2-Port HDMI USB Cable KVM Switch w/ Audio & Mic |
| Number of Ports | 2 |
| Number of Console | 1 |
| Console Keyboard Connector | USB 2.0 Type A Female |
| Console Mouse Connector | USB 2.0 Type A Female |
| Console Video Connector | HDMI Female |
| Console Audio/Mic Connector | 2 x 3.5mm Audio/Mic Jack Female |
| PC Keyboard Connector | 2 x USB Type A Male |
| PC Mouse Connector | Via PC Keyboard Connector |
| PC Video Connector | HDMI |
| PC Audio/Mic Connector | 2 x 3.5mm Audio/Mic Jack Male |
| PC selection | QuickSwitch Button / Hotkeys / Switching Software (Win/Mac) |
| PC port LED | 2 x Green |
| Analog Display Resolution | 1920 X 1080 Full HD |
| Cables | 2 x 0.9m |
| Keyboard & Mouse Emulation | Yes |
| Operation Temperature | 0 ~ 40°C |
| Storage Temperature | -20 ~ 60°C |
| Humidity | 0~90% RH, Non-Condensing |
| Power type | USB Bus Powered |
| Weight | 357g |
| Dimension(L×W×H) | 87 x 59 x 25mm |
| Safety / Emission | FCC, CE |
