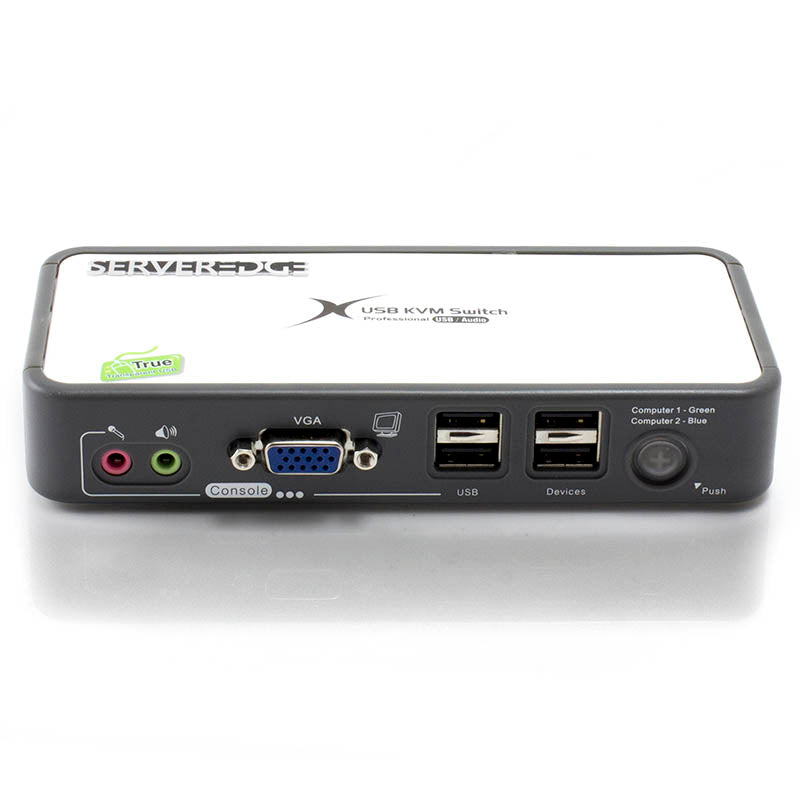

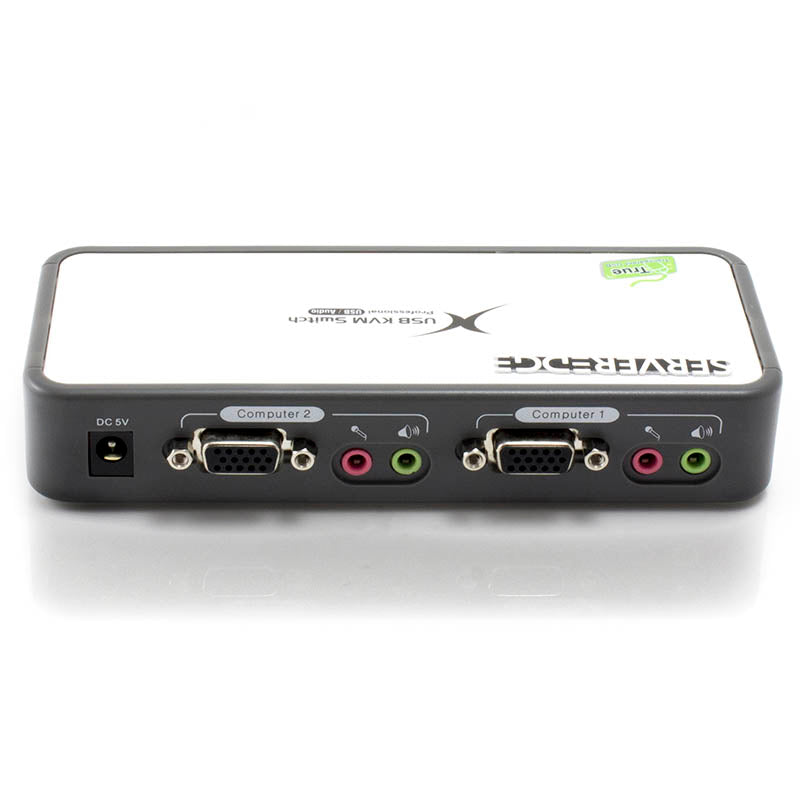

The Serveredge KD02UVH2 is a 2-port USB desktop KVM Switch with Audio and Microphone switching function. It also provides two USB 2.0 hub ports for high-speed USB 2.0 devices sharing. It allows you to control 2 USB-enabled multimedia computers and two USB 2.0 devices using only USB keyboard, mouse, monitor and a set of speakers and microphone. You can select the computers, USB device hub port control and audio/mic channel independently, using either front-panel buttons or keyboard hotkeys. This stylish Compact Desktop KVM Switch family give more than something of an ordinary desktop KVM Switch: It has everything worthy and noble inside their colorful apparels—goodies such as the True Transparent USB (TTU) keyboard/mouse Emulation and All-time DDC video emulation! With both technologies, you can simply sit back and forget about everything nasty about keyboard, mouse and video glitches due to incompatibility.
PRODUCT FEATURE
* 2 extra USB 2.0 device port for high-speed USB device sharing
* True Transparent USB emulation technology for any keyboard and mouse
* All-time DDC emulation for ultimate video compatibility
* Independent peripheral switching configurable by hotkeys
* LED indicators for easy status monitoring
* Low power consumption using ASIC
* Warranty : 3-years
PRODUCT SPECIFICATION
Product Description |
2-Port VGA USB KVM Switch w/ Audio, Mic & Hub |
| Number of Ports | 2 |
| Number of Console | 1 |
| Console Keyboard Connector | USB 2.0 Type A Female |
| Console Mouse Connector | USB 2.0 Type A Female |
| Console Video Connector | VGA HDB15 Female |
| Console Audio/Mic Connector | 2 x 3.5mm Audio/Mic Jack Female |
| Console USB Hub Ports | 2 x USB 2.0 Type A Female |
| PC Keyboard Connector | 2 x USB Type B Female |
| PC Mouse Connector | Via PC Keyboard Connector |
| PC Video Connector | 2 x VGA HDB15 Female |
| PC Audio/Mic Connector | 4 x 3.5mm Audio/Mic Jack Male |
| PC selection | Push Button / Hotkeys |
| PC port LED | 1 (Green / Blue) |
| Analog Display Resolution | 2048 x 1536 |
| Keyboard & Mouse Emulation | Yes (TTU) |
| Auto Scan Delay Time | 5~100 sec |
| Operation Temperature | 0 ~ 40°C |
| Storage Temperature | -20 ~ 60°C |
| Humidity | 0~90% RH, Non-Condensing |
| Power type | 2.5mm Power Jack |
| Power Adapter | DC 5V/2A |
| Weight | 160g |
| Dimension(L×W×H) | 154 x 65 x 27mm |
| Safety / Emission | FCC, CE |
