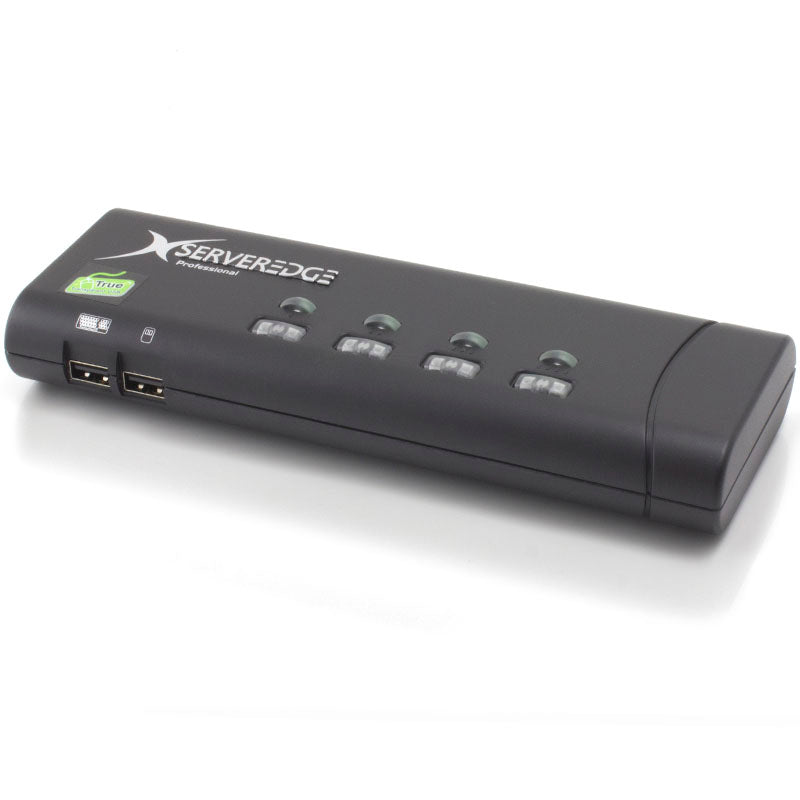

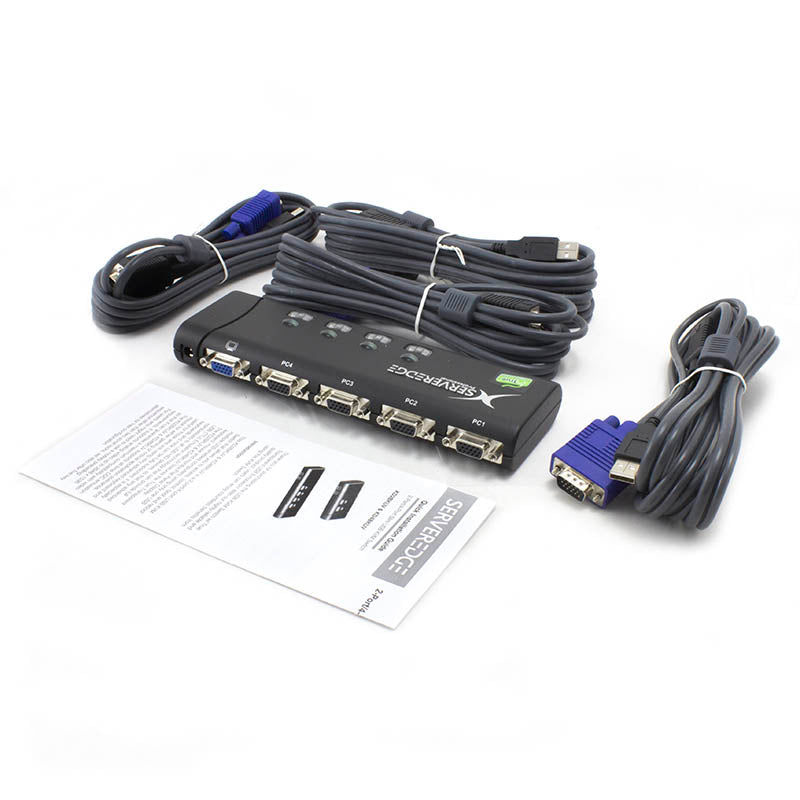

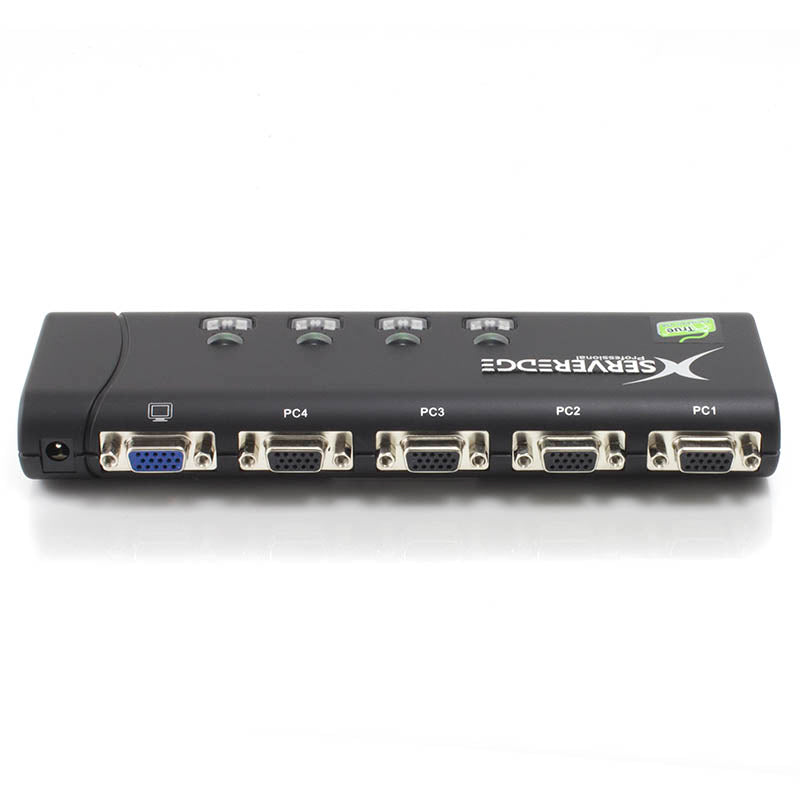

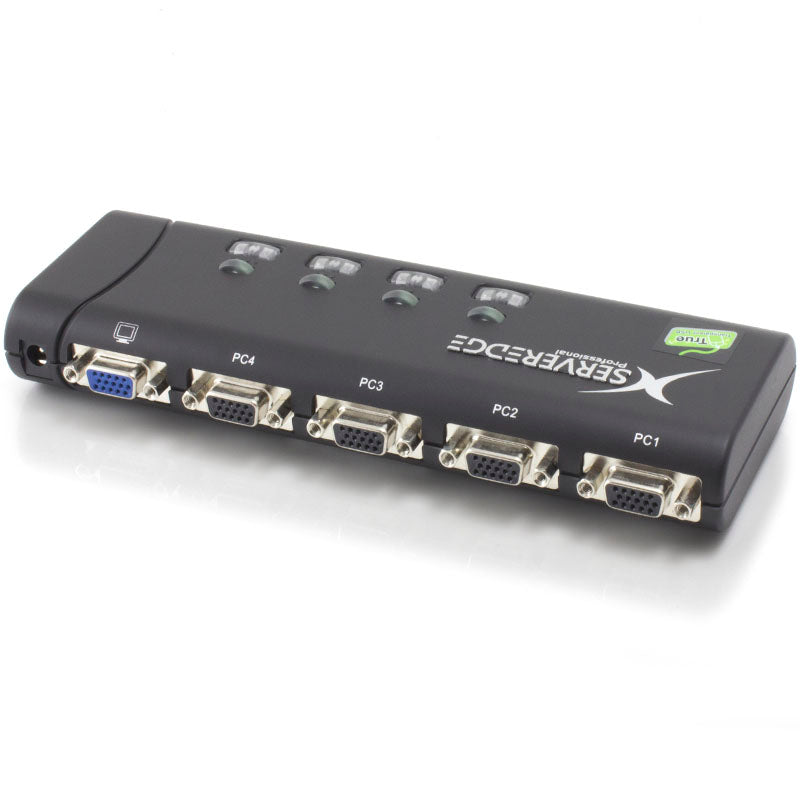

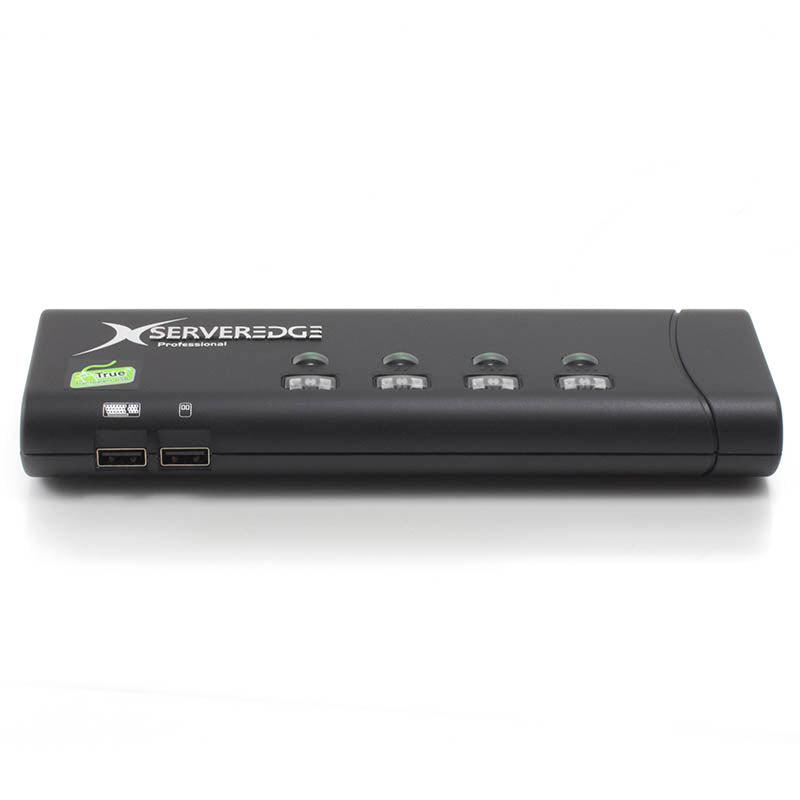

The Serveredge KD4BKUV is a 4-port Slim USB KVM Switch that features the latest TTU (True Transparent USB) Emulation Technology for advanced types of keyboards and mice, as well as all time DDC emulation for ultimate video compatibility with all graphic display scenarios with the newer types of Operating System such as Windows Vista / Windows 7. The KD4BKUV can help you control, boot and reboot 4 computers using only one set of keyboard, mouse and monitor display. Its slim size offers a form factor that fits snugly into your desktop landscape. The KD4BKUV features integrated HDB15 connectors for computer connections, using special integrated KVM cables, thus relieving more desktop space that are free of cable clutters.
PRODUCT FEATURE
* Serveredge 4-port Slim USB KVM Switch
* True Transparent USB (TTU) Emulation technology with an integrated ASIC
* Full driver support for all types of USB keyboard and mouse
* All time DDC emulation for video compatibility and stability under intensive switching
* Multi-platform support PCs and Macintosh
* Support all major operating systems such as Windows, Linux, Macintosh, Sun OS, etc.
* User definable hotkeys
* Integrated HDB15 connector for computer connection
* Channel selection by push buttons and keyboard hotkeys
* Low power consumption using ASIC
* LED indicators for easy status monitoring
* Analog video resolution up to 2048 x 1536
* Warranty : 3-years
PRODUCT SPECIFICATION
Product Description |
4-Port Slim USB KVM Switch |
| Number of Ports | 4 |
| Number of Console | 1 |
| Console Keyboard Connector | USB 2.0 Type A Female |
| Console Mouse Connector | USB 2.0 Type A Female |
| Console Video Connector | VGA HDB15 Female |
| PC Keyboard Connector | Via Video Connector |
| PC Mouse Connector | Via Video Connector |
| PC Video Connector | 4 x VGA HDB15 Female |
| PC selection | Push Button / Hotkeys |
| PC port LED | 4 x Green |
| Analog Display Resolution | 2048 x 1536 |
| Keyboard & Mouse Emulation | Yes (TTU) |
| Operation Temperature | 0 ~ 40°C |
| Storage Temperature | -20 ~ 60°C |
| Humidity | 0~90% RH, Non-Condensing |
| Power type | USB Bus Powered |
| Weight | 180g |
| Dimension(L×W×H) | 206 x 67 x 27.5mm |
| Safety / Emission | FCC, CE |
