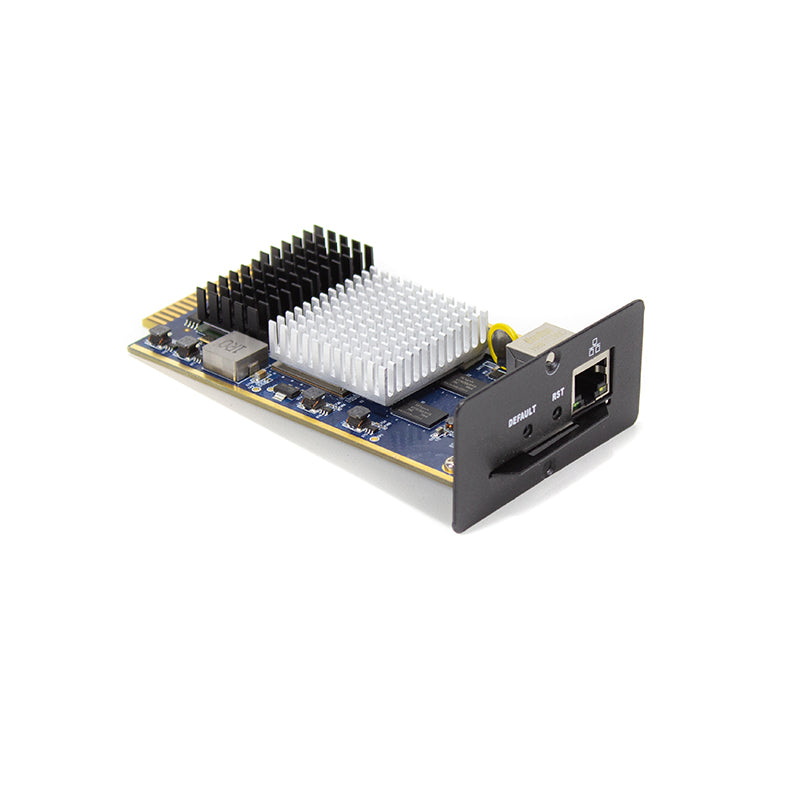

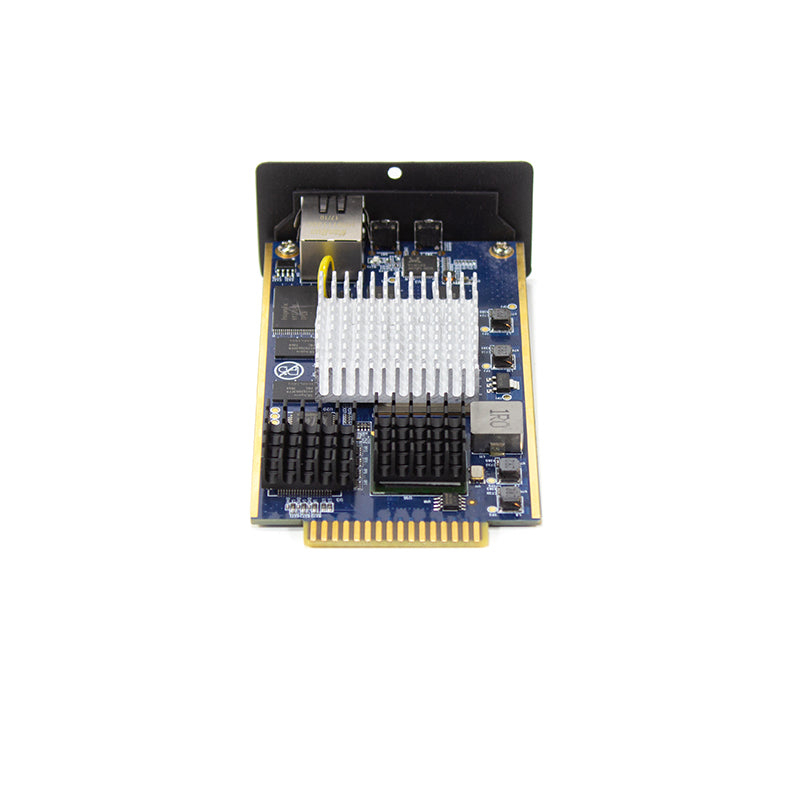

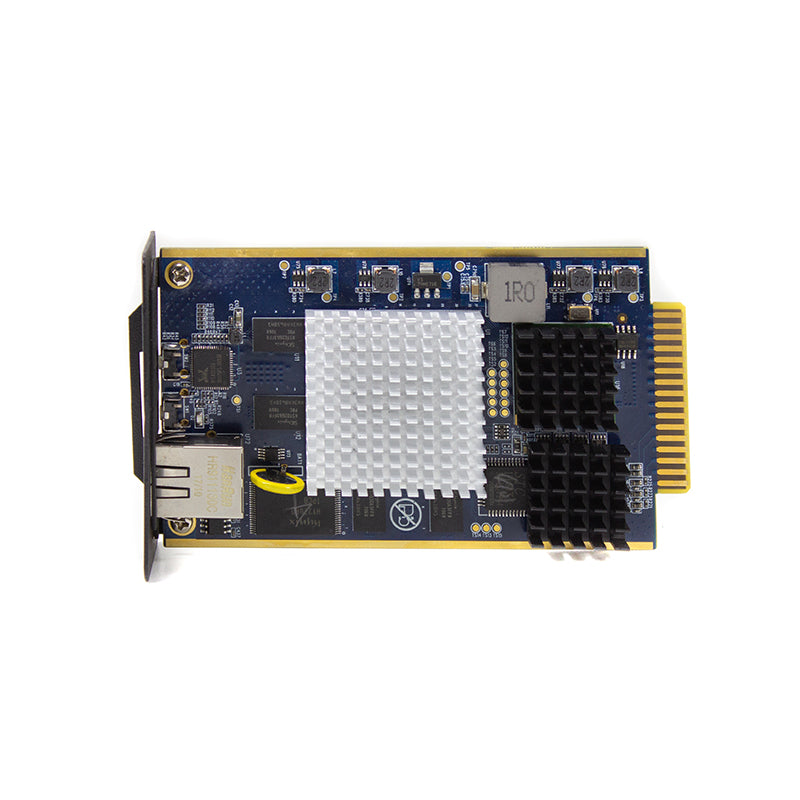

Serveredge KVM Over IP Module for BIOS Level Access - Compatible with all Serveredge LCD KVM
PRODUCT FEATURES
- Our products adopt KVM over IP technology and make full use of existing Ethernet network to replace dependence of special cables and signal systems.
- Based on IP connection eliminates the distance analog KVM system and other restrictions, And therefore achieve flexible centralized management.
- BIOS level connection is no limited by operating system, and applicable to various server, PC system and operating system.
- Support remote key combination to send.
- 10M, 100M, 1000M network transmission.
- Remote resolution can reach to 1920x1080@60HZ. Support screen zoom function with arbitrary proportion.
- Base on WEB UI, convenient for customer to access under different operation system.
- Support remote online update.
SPECIFICATIONS
|
Product number |
KI-4101 |
|
|
Control Port |
Keyboard |
RJ45 port x 1 |
|
Mouse |
||
|
Video |
||
|
Input Port |
Keyboard |
HD15F/integration port x 1 |
|
Mouse |
||
|
Video |
||
|
Power Supply Port |
DC-5.5*2.1 |
|
|
Reset |
Network Re-connect |
|
|
Default |
Initialize IP module default IP address, administrator name and initial password |
|
|
LED Indicator |
Power indicator |
|
|
Max Resolution |
1920 x 1080@60Hz |
|
|
Power Supply |
DC 12V 1000mA |
|
|
Operating Temperature |
0-50˚C |
|
|
Storage Temperature |
-20℃-60℃ |
|
|
Housing |
metal |
|
|
Weight |
0.5KG |
|
|
Dimensions(L x W x H ) |
162*78*30mm |
|
GUARANTEE/WARRANTY
Serveredge products are manufactured at the highest standards using highest quality materials at an affordable price. This Serveredge product come with a 25-year warranty for that extra piece of mind. Subject to Serveredge Terms and Conditions*
