The Serveredge Gigabit Media Converter SED-1000MLC (550m) allows you to transparently connect your Gigabit copper cabling system (10Base-T, 100Base-TX or 1000Base-T) with the fibre optic cabling system (1000Base-FX). This media converter provides a long distance connection between legacy 10BaseT, 100BaseTX networks and the 1000Base Gigabit Ethernet networks. The SED-1000MLC (550m) incorporates advances features such as Auto-Negotiation, Auto-MDIX, Link Pass-Through, Fibre Fault Alert & loop back.
This unit can be used as a standalone unit or as a slide-in module in a Media Converter Chassis.
PRODUCT FEATURE

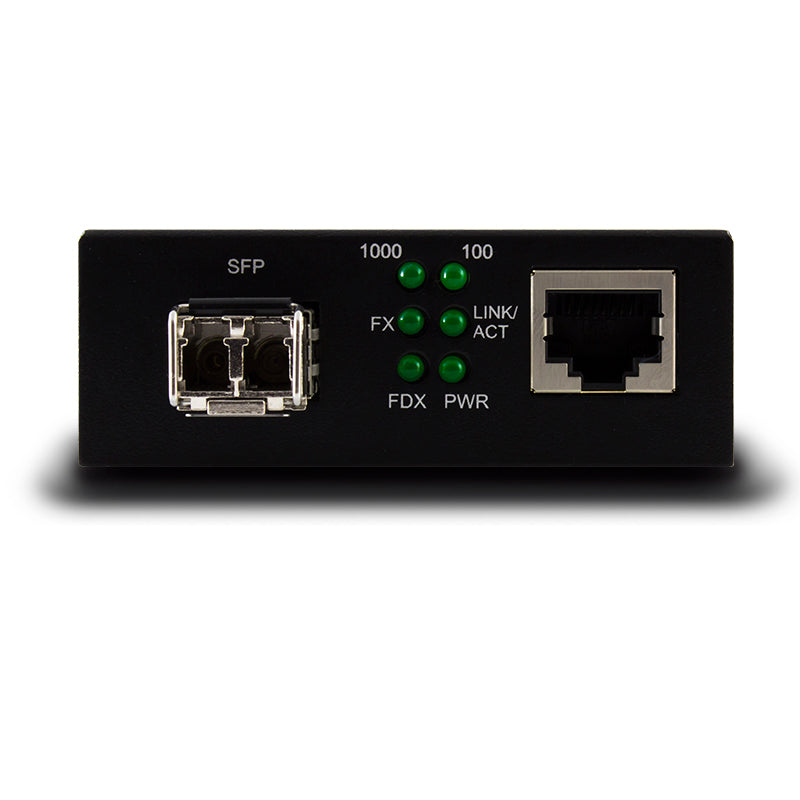

* Built-in twisted-pair port 10/100/1000 switch
* Auto-Negotiation RJ45 Connector with Auto-MDIX
* LC/UPC Connector
* LEDs for functions, links & activity
* Link fault signaling for use with managed switches
* 1024 Mac address capacity
* Store and forward architecture
* Wall or Chassis Mountable
* Compliant to FCC part 15 Class A, CE Mark, CTick
PRODUCT SPECIFICATION
Latency: < 4.2 μs (LIFO)
Throughput @ 100Base: 148,810 pps (64-byte packets)
Throughput @ 1000Base: 1,488,110 pps (64-byte packets)
FIBRE INTERFACE, MULTIMODE MODELS
Type: Laser Diode
Wavelength: 850 nm nominal
Maximum Output Power: - 4.0 dBm
Minimum Output Power: - 9.5 dBm
Sensitivity: -13.5 dBm
Maximum Input Power: - 13.5 dBm
Link Power Budget: 4.0 dB
PHYSICAL CHARACTERISTICS

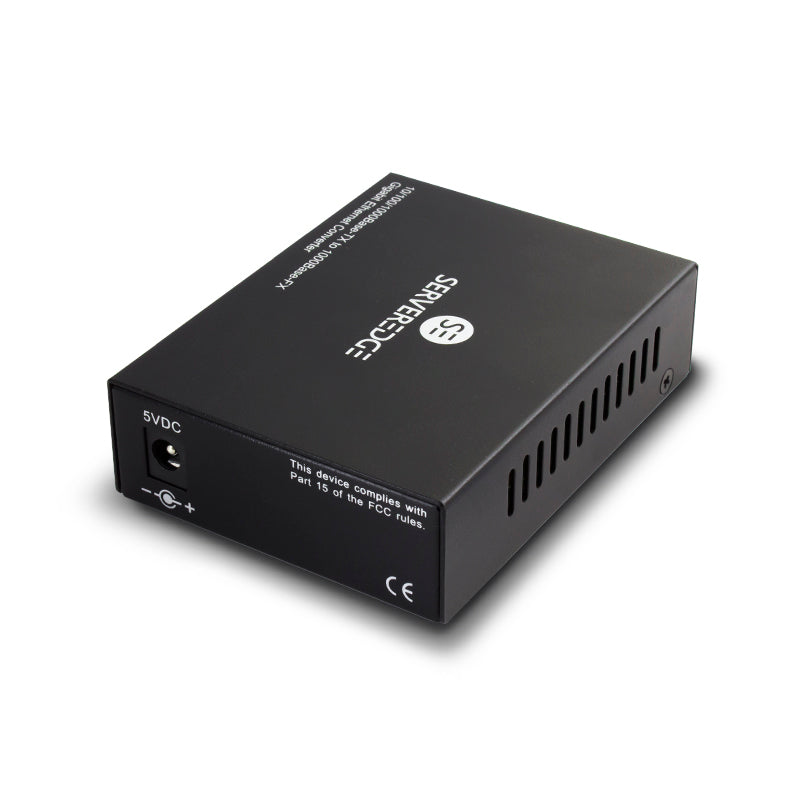

Case dimensions: 120mm x 86mm x 26.8mm
Weight: 400 grams
ENVIRONMENTAL CHARACTERISTICS
Operating Temperature: 0°C ~ 45°C)
Storage Temperature: -10°C ~ 65°C)
Relative Humidity: 5% ~ 90%, non-condensing
POWER

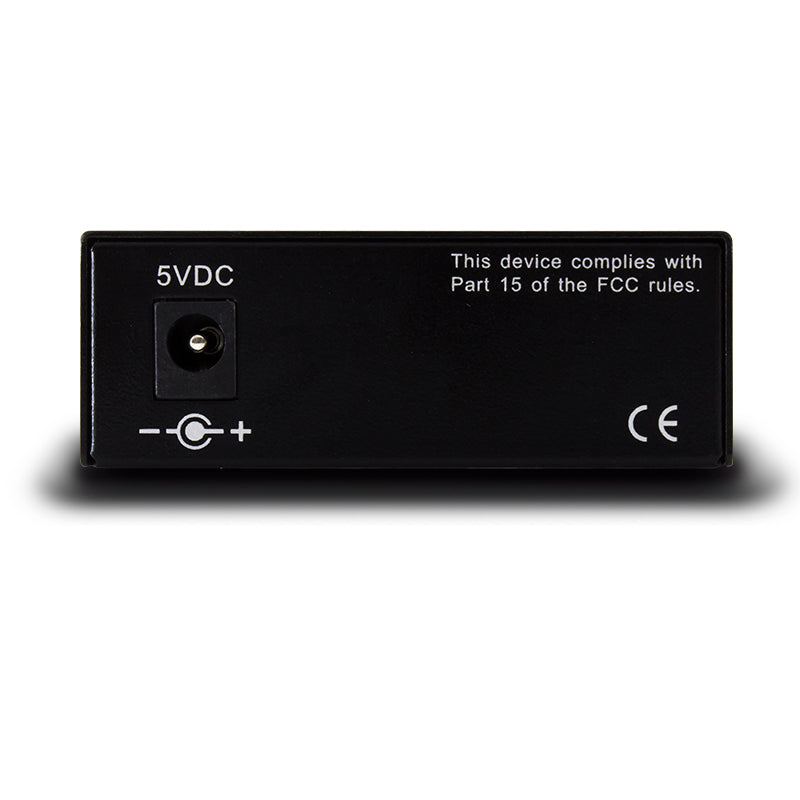

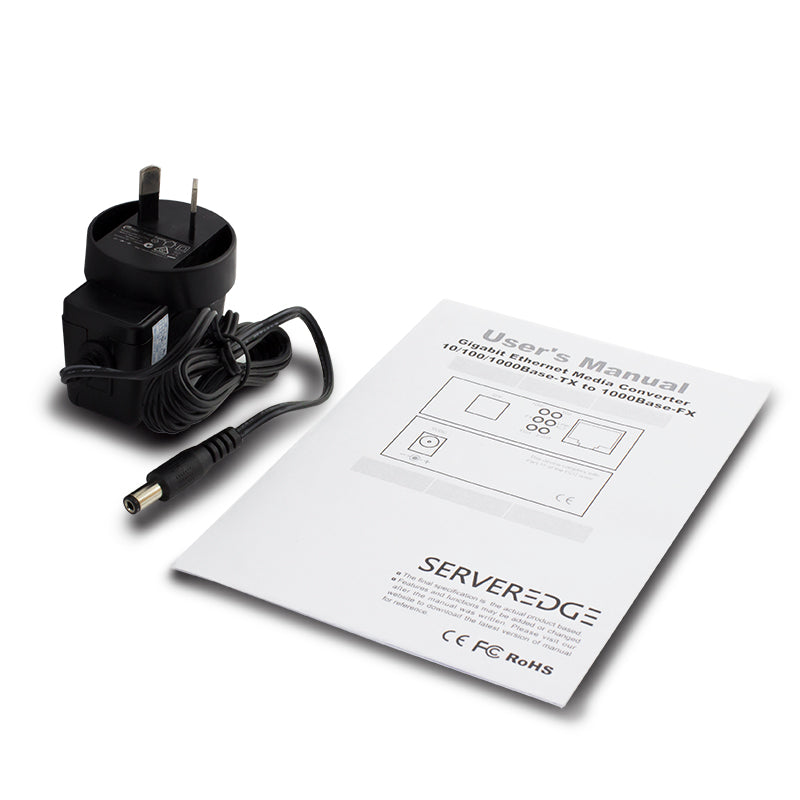

External power adapter: 5V ~ 2A
Power Consumption: 5 Watts Maximum
