The Serveredge basic PDUs are the most efficient way to power protect your rack mount equipments. Serveredge PDUs are built to both Australian & International standards and requirements, so that your equipment can deliver the most optimum performance while using minimum of your valuable rack space. The PDUs have a Metal Alloy casing which makes them durable for rack mount use in vertical applications.
PRODUCT FEATURES
• Output Ports: (12) 3 Pin AUS GPO
• Overload Protection

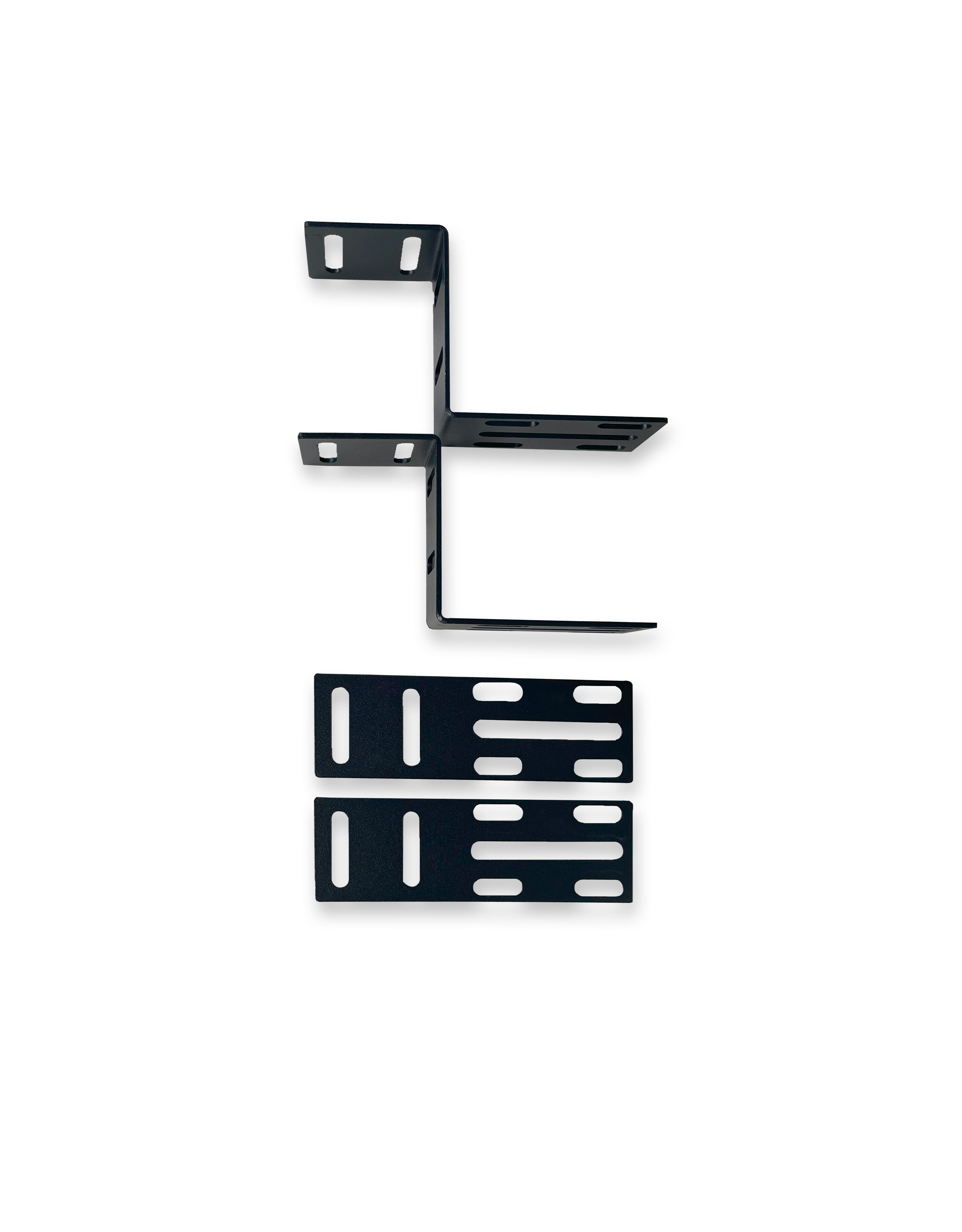

• Supplied with a PDU-BKT Vertical Mounting Bracket Kit
• Vertical Mounting capabilities saves valuable rack space.
• Input Power Source: IEC C20 Plug, 16A
• Power Indicator Light.
• Warranty: 2 Years Manufacturers Warranty
PRODUCT SPECIFICATIONS
| Configuration | 0RU, Vertical |
| Colour | Black |
| Maximum Depth | 68mm |
| Maximum Height | 50mm |
| Maximum Width | 745mm |
Output |
|
| Output | 12 x 3 Pin AUS GPO |
Input |
|
| Input | 1 x IEC C20 |
| Cable-length | 2m |
| Maximum input current | 16A |
| Voltage | 240V |
Conformance and Compliance |
|
| EESS Conformity |
PACKAGING INCLUDES
| SEDG-12PV-GPO-16A |
YOU'RE REVIEWING:
12 Port Basic Vertical PDU, (12) 3 Pin AUS GPO Output (1) IEC C20 Plug Input,16A,240V
