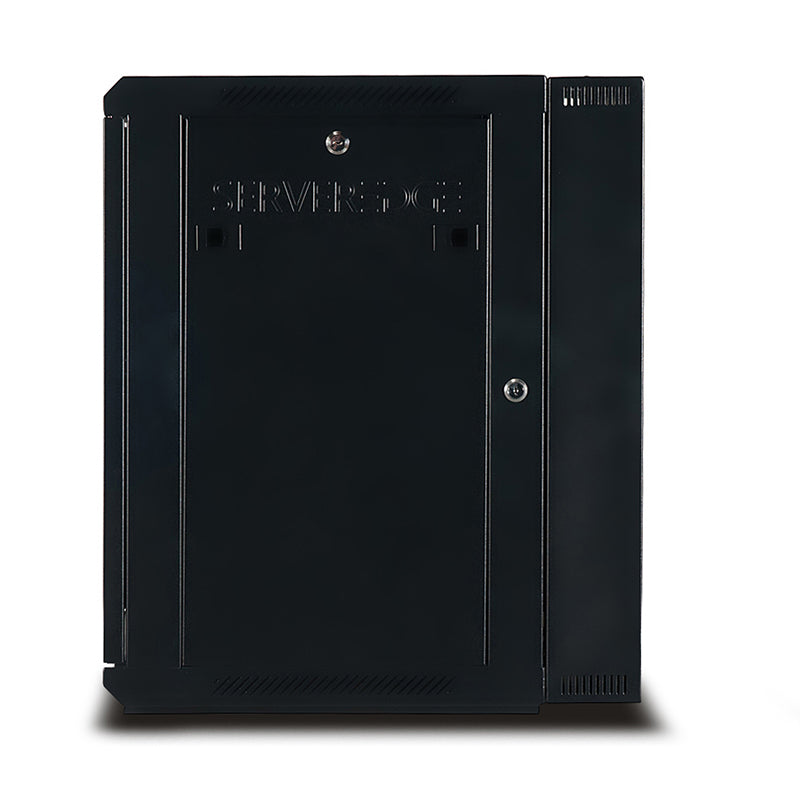

Serveredge Wall mount Swing Frame Cabinets and Enclosures are the ideal storage solution for the standard rack mount equipments in applications with limited floor space. Constructed with a hinged wall mounting bracket & a sturdy welded frame these racks can accommodate equipments up to 80 Kgs. The vertical mounting rails are adjustable and can accommodate any standard rack mount equipment. Swing Frame feature of this rack allows easy access to the rack mounted equipments through its easy removable enclosure that is hinged to swing frame from the wall mounting brackets. Serveredge wall mount swing frame enclosures also features perforated lockable removable side panel assuring generous airflow to keep equipment operating safely. The top and bottom panels of the enclosure include convenient cable routing ports. These wall mount swing cabinets ships fully assembled and comes with a 25-year manufacturer’s product warranty.
PRODUCT FEATURE
* Designed for limited space environments where equipment needs to be secure and out of the way
* Adjustable front vertical rack mount rails
* Locking, reversible front door and locking, removable side panels

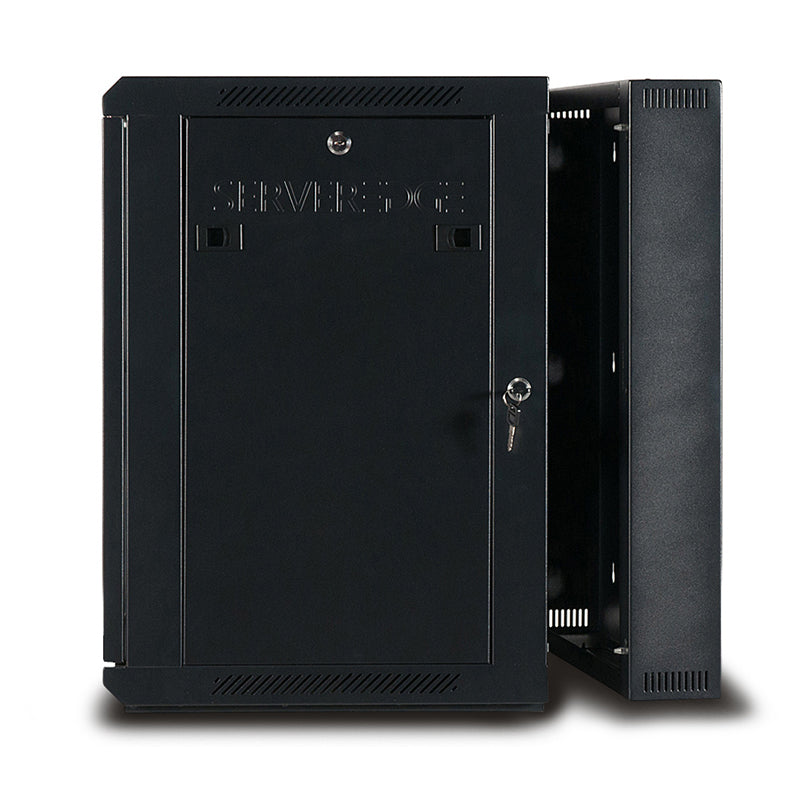

* Hinged cabinet swings away from wall bracket for easy equipment
* Fully assembled for quick installation
* Confirm to Standard ANSI/EIA RS-310-D, IEC297-2, DIN4191; PART1, DIN4194; PAT7, GB/T3047M 2-92
* Warranty : 25-year
PRODUCT SPECIFICATION
| Installed whole system maximum rack depth (mm) | 600 |
| Rack Height | 12RU |
| Shipping Dimensions (WDH/mm) | 650 X 750 X 687 |
| Shipping weight (kg) | 37 |
| Unit Dimensions (WDH/mm) | 600 X 700 X 637 |
| Unit weight (kg) | 33 |
| Colour | Black |
| Weight Capacity - Stationary (kg) | 80 |
| Grounding lug | Front and Back Door Frames |
PACKAGING INCLUDES
| Free Standing Rack | 1 |
| M6 screws | 20 |
| M6 cage nuts | 20 |
| M6 washers | 20 |
| Fixed Shelf | 1 |
| Keys | 2 |
| Owner's Manual | 1 |
