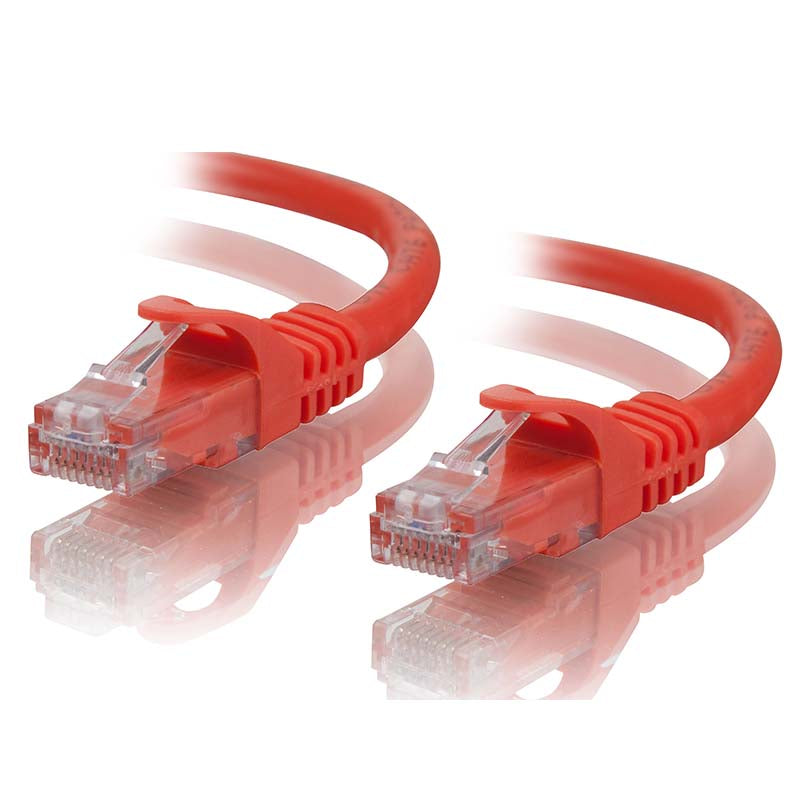

Cat5e snagless patch cables are ideal for transferring large volumes of voice, data, video and communications signals. These cables helps to improve the networks speeds by reducing impedance loss and network return loss. Each of the individual pairs of cables are bonded together to help maintain the twist-spacing throughout the line right up to the termination point. This design minimizes Near-End Crosstalk (NEXT) levels between them which leads to improved performance, low insertion loss and higher data rates. 24 AWG Copper cables and Gold plated connectors ensure crystal transmission and the custom designed snagless boot protects the cable from any damages during installation.
PRODUCT FEATURE
* CAT5e cables are A-Tick compliant with ACMA requirements
* Supports 10 Base-T, 100 Base-T, and 1000 Base-T Network
* Constructed from high quality cable and a shortened body plug, this design minimizes Near-End Crosstalk (NEXT) levels
* Available in assorted colours to easily colour-code your network installation
* Meets and exceeds all CAT5e TIA/EIA-568-C.2 standards 5 micron gold-plated connectors to ensure clear transmissions
* Snagless moulded connectors to protect the RJ45 retaining clips from damage during installation
* Lifetime Warranty
PRODUCT SPECIFICATION
* Wiring Scheme: T568A
* Standard: Category 5e TIA/EIA-568-C.2
* Connector: 50 micron gold-plated RJ45
* Temperature Rating: 60°C
* Voltage Rating: 30V
* Approvals: RoHS Compliant
* Package Type: Polybag
* Jacket: PVC
* Connector Type: 8P8C (RJ45)
* Conductor Type: 24AWG (7/0.20) Stranded Bare Copper
AVAILABLE LENGTHS
| Part No. |
Length |
| C5-0.5-ORANGE | 0.5m |
| C5-01-ORANGE | 1m |
| C5-02-ORANGE | 2m |
| C5-03-ORANGE | 3m |
| C5-05-ORANGE | 5m |
| C5-10-ORANGE | 10m |
