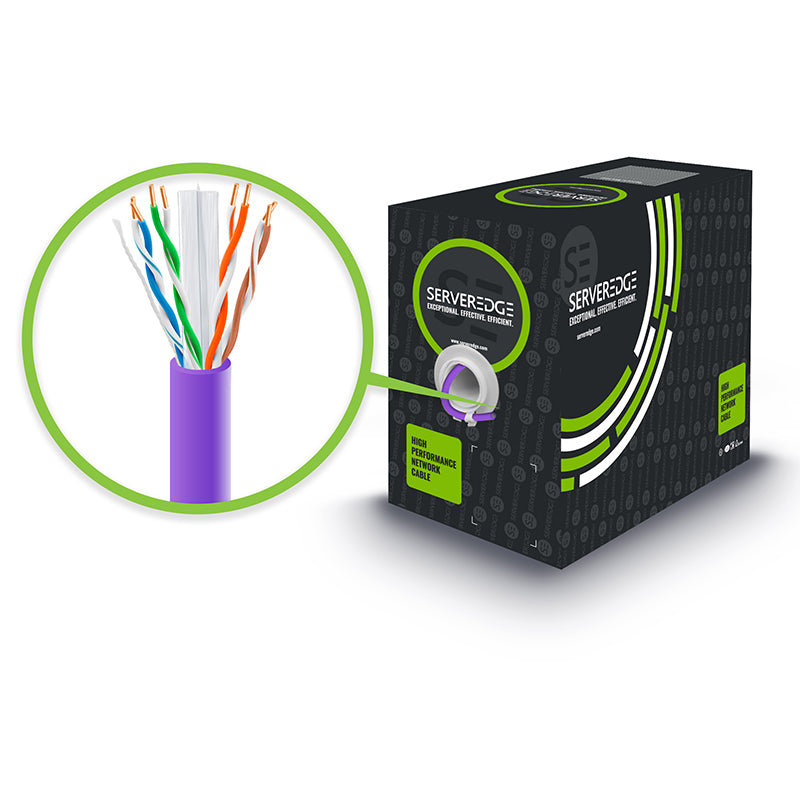

Serveredge CAT6 305m Network Cable - UTP, Solid, PVC, 23AWG can be used to connect a variety of devices in a high-speed network. The cable is twisted in pairs, separated by an integrated pair divider, and protected by a PVC jacket. It is packaged in an easy to use pull box carton. The cable meets and exceeds all CAT6 TIA/EIA standards, and drastically reduces both impedance and structural return loss (SRL). The cable is made from the highest quality copper to maximize performance and minimize Near-End Crosstalk (NEXT).
PRODUCT FEATURE
* Supports all applications designed to operate over Category 6 or lower rated systems
* Sequential measurement markings on jacket
* Packaged in an easy to use pull box carton
* Ideal for running inside walls
* Comes in a variery of colours
PRODUCT SPECIFICATION
Sheath material: PVC
Wall thickness of sheath: 0.50mm
Rip cord under sheath: Yes
Insulation material: High-density polyethylene
Insulation thickness: 0.23mm
Conductor material: Soft annealing bare copper wire
Cable construction: 4 twisted pairs stranded together
Cable colours: White/Blue, White/Orange, White/Green, White/Brown
Twisted pair lay length: ≤38mm
Standards Compliance
• ISO/IEC 11801 Ed. 2.2 (Class E)
• IEC 61156-5:2009 (Category 6)
• ANSI/TIA-568-C.2 (Category 6)
• Supports up to 1000BASE-T application
