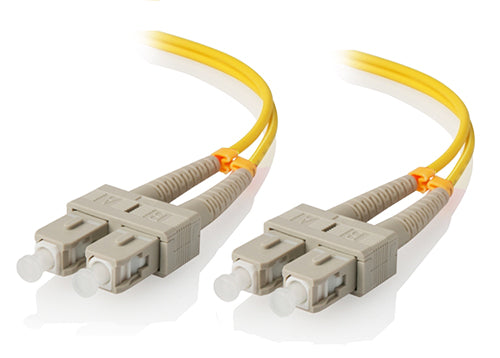

3m SC-SC Single Mode Duplex LSZH Fibre Cable 09/125 OS1

SKU: SCSC-03-OS1

Lifetime
Manufacturer's Warranty


The Single mode OS1 cables are designed to support very high transfer speed, the cables are capable of supporting up to 1 gigabit applications over very long distances. The cables meet or exceed industry standard specifications; each cable is individually tested for maximum reliability and comes with performance reports.





PRODUCT FEATURE

* Single Mode OS1 fibre optic cable

* Low Smoke Zero Halogen Jacket for minimal toxic emissions in case of fire

* 100% optically tested and provided with test reports



PRODUCT SPECIFICATION


* Connector Type: SC, SC

* Wavelengths: 09 µm (OS1)/125 µm

* Attenuation: At 1310 nm: <0.5 dB per km / At 1550 nm: <0.5 dB per km

* Insertion loss: <0.3 dB per 300 m @ 1550 nm or 1300 nm

* Fiber: Glass

* Number of fibers: 2

* Jacket: LSZH (Low Smoke Zero Halogen)

* Cable outer diameter: 3mm +/-0.2mm

* Safety: ETL/c-ETL
