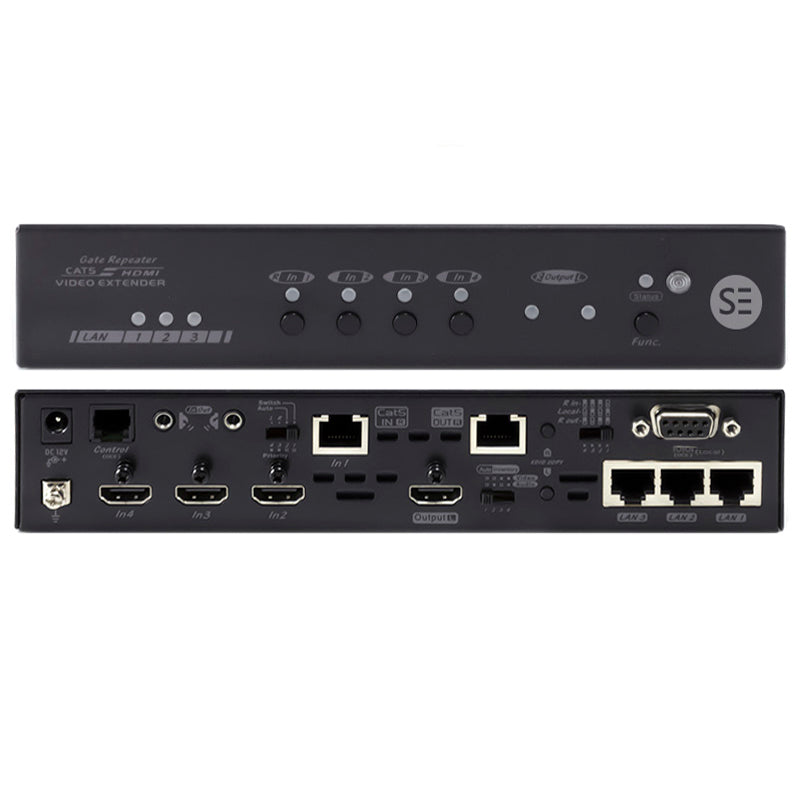

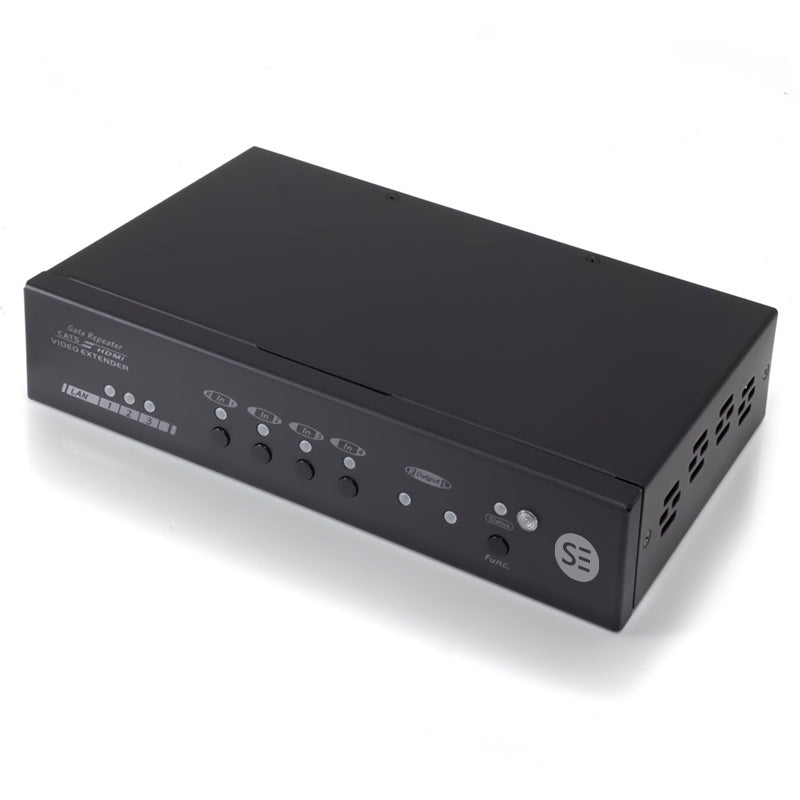

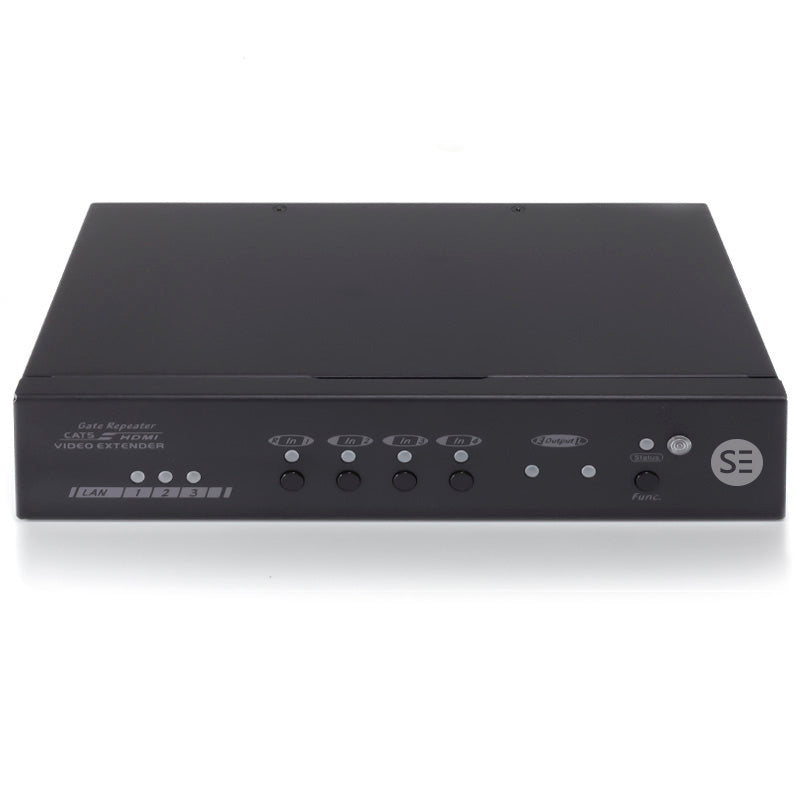

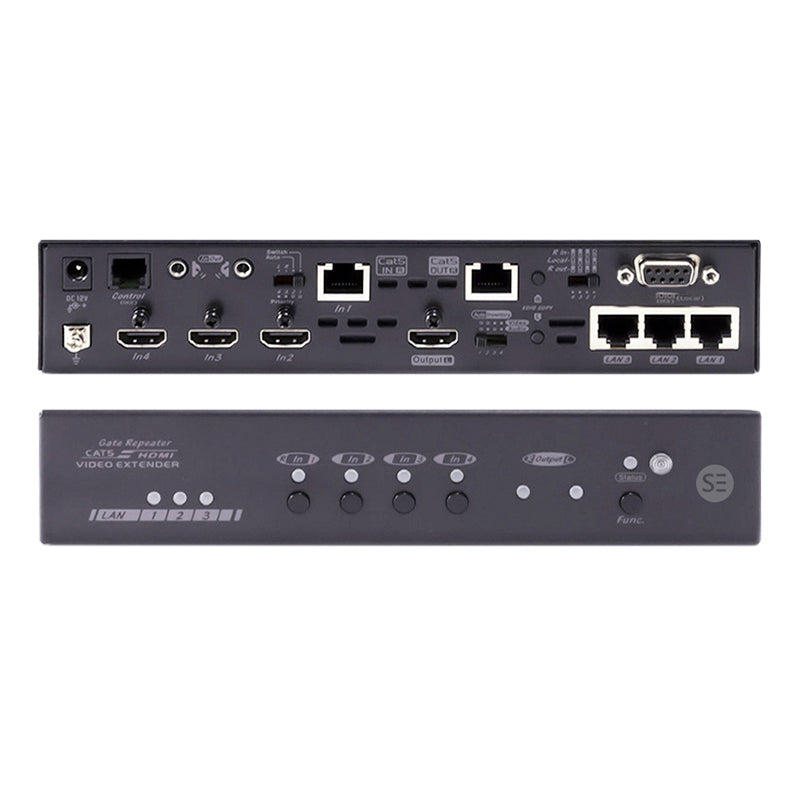

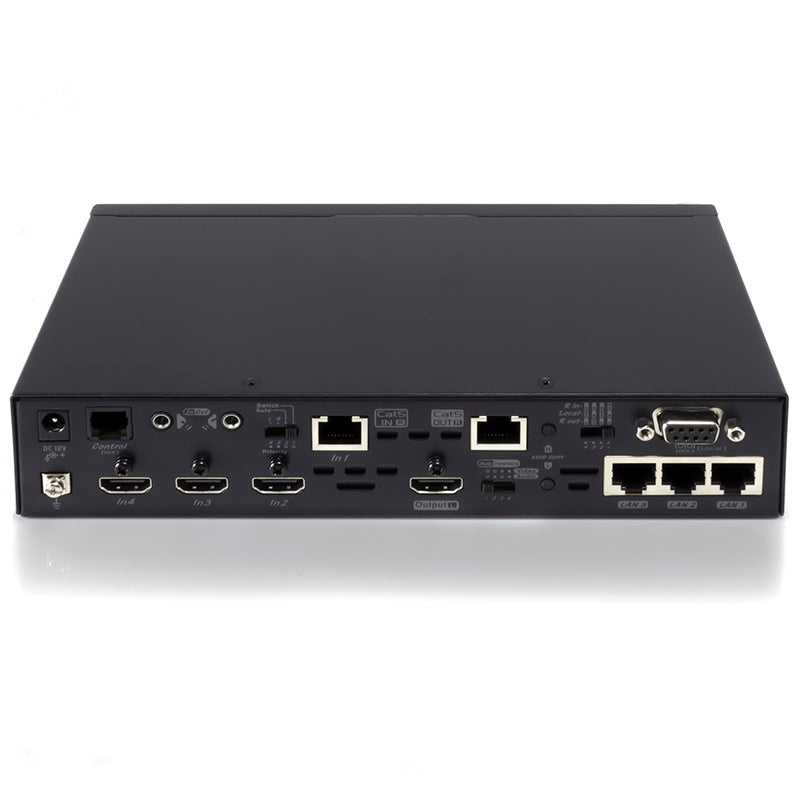

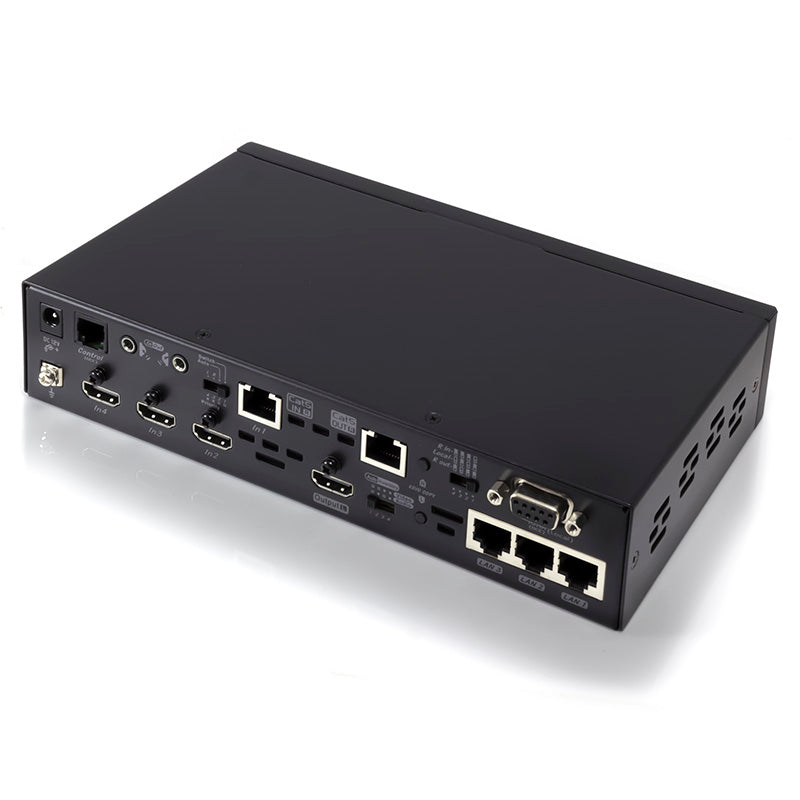

The Serveredge SW4I-03457-100 is a 4 x 1 switcher with one HDBaseT input, three HDMI inputs, mirrored HDMI and HDBaseT outputs enabled with automatic input selection and automatic display control capability. It transmits AV signals along with Ethernet, power, Bi-Directional IR and control over a single cable to displays up to 100 meters from the switcher. Control options include automatic input selection, front-panel buttons, and compatibility with IR and RS-232.
PRODUCT FEATURE
Auto-Switching
Selects active input when sources are connected or if there is a change in source power status. Eliminates need for complex control system in small AV systems.
Flexible control options for compatibility with 3rd-party control systems. RS-232 controlled from HDBaseT connection reduces integration time and costs. Front panel Input Select button and Remote for easy switching between sources. Input source sequence is also selectable.
4×1 HDBaseT™ Switcher
Features three HDMI inputs plus a HDBaseT input and one HDMI and one HDBaseT outputs.
4K2K
Support resolutions up to UHD (3840 x 2160), Full HD 1080p, 2048 x 1152, Deep Color and HD Audio formats.
Exclusive EDID Functions
Multi-functions for EDID setting, like EDID Copy and EDID Pre-setting, ensuring accurate output display. Can learn Audio and Video EDID separately for multimedia / Home Theater system integration. Read and store the EDID from the connecting display to the video extension
Warranty : 1 Year
PRODUCT SPECIFICATION
| Video Input | (Remote) RJ-45 x 1, (Local) HDMI x 3 |
| Video Output | (Remote) RJ-45 x 1, (Local) HDMI x 1 |
| IR Extension | (Transceiver x 1 + Receiver x 1) x 2 |
| Serial Extension | DB9-F x 1 |
| LED Indicator | Status LED : 1 Input / Ouptut LED : 4 + 2 |
| Slide Switch | Audio/Video EDID Setting : Audio / Video / Inventory EGO (Advanced Autosensing) Setting : Priority / Auto-sensing / Switch Serial Linking Setting : Link Mode x 4 |
| Push Button | Function : x 1 Source Selection : x 1 EDID Copy : (Local x 1 + Remote x 1) x 2 |
| Video Resolution (max.) | UHD (3840 x 2160) |
| Extension Distance | 100M |
| Power Supply | DC 12V |
| Enclosure | Metal |
| H x W x D (mm) | 34 x 190 x 125 |
| Weight (g) | 1020~1070 |

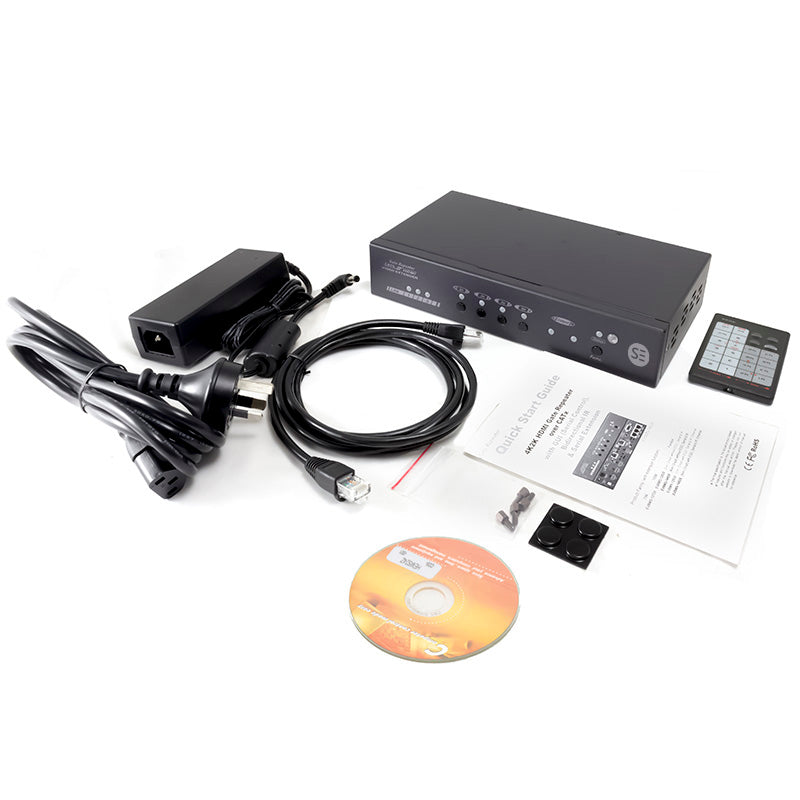

PACKAGING INCLUDES
| SW4I-03457-100 | 1 |
| Power Adapter Set | 1 |
| IR Remote Controller | 1 |
| CD (User’s Manual + Software Utility) | 1 |
| Quick Start Guide | 1 |
| CATx Cable (1.5M) | 1 |
| Grounding Wire | 1 |
| Foot Pad Set | 1 |
