The Serveredge HDMI HDBaseT Extender over CAT5e/6/6a transmits uncompressed digital HDMI signal, Serial (RS232), IR, and Ethernet up to 100 metres over a single CAT5e/6/6A cable using HDBaseT technology. Each video extender consists of a local unit that connects to an HDMI source and a remote unit that connects to an HDMI display.
This Serveredge extender is HDCP complaint and requires single Power supply at either transmitter or receiver end.
PRODUCT FEATURE
* Remotely locate the keyboard, mouse and monitor up to 100 meters away from a computer
* Send HDMI signal to multimedia display over CAT5e/6 cable of up to 100 meters
* Transmit full uncompressed HD video and audio over cable 100BaseT Ethernet Pass-Thru; simultaneously distribute HDMI and Ethernet streaming video from source to display
* Low cost standard CAT5e/6 LAN cable; advanced and inexpensive all-in-one connectivity technology
* HDCP compliant and Blu-ray ready
* Support Deep Color, HD-3D video and HD Audio formats
* Support resolution up to Full HD 1080p / 4Kx2K (3840 x 2160) Bi-directional LAN & Serial
* Support Phantom Power -- single power supply at either one end of two units (Tx & Rx)
* Compact size; easy to set up; simple to install
* Ideal for hospitality (hotels, conference rooms), digital signage (airports, shopping malls), surveillance cameras, whole-home networking and point-to-point consumer applications
* 2-year warranty
PRODUCT SPECIFICATION

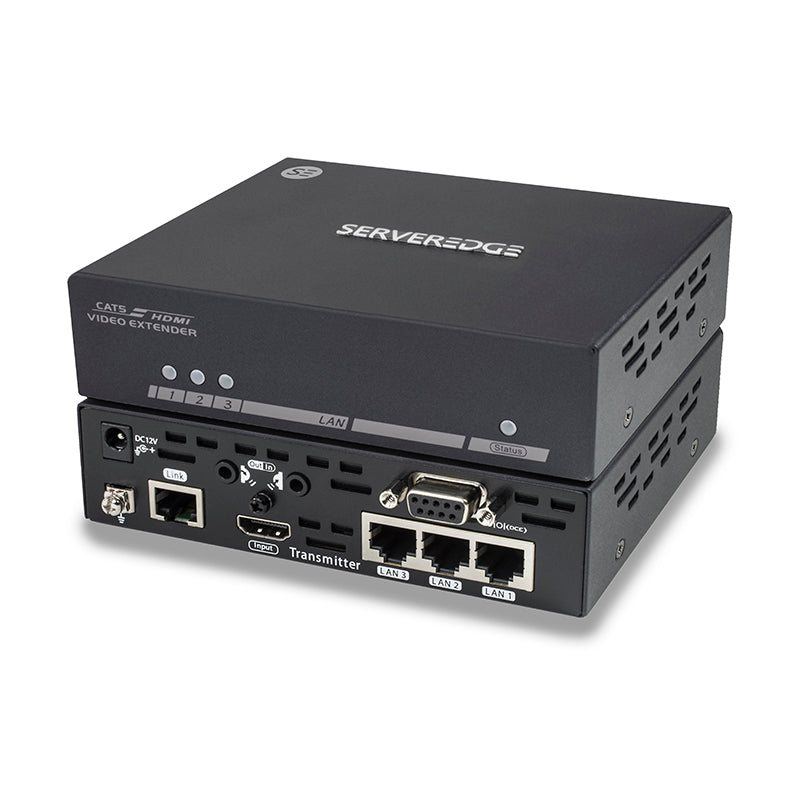

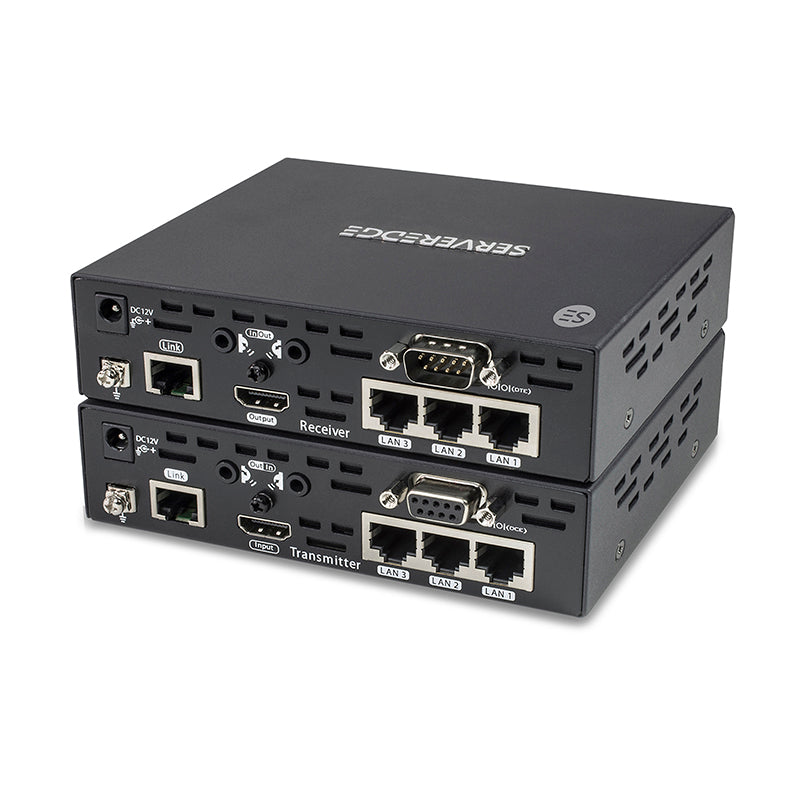

Transmitter UnitSEDG-HDUEX-100EXTL |

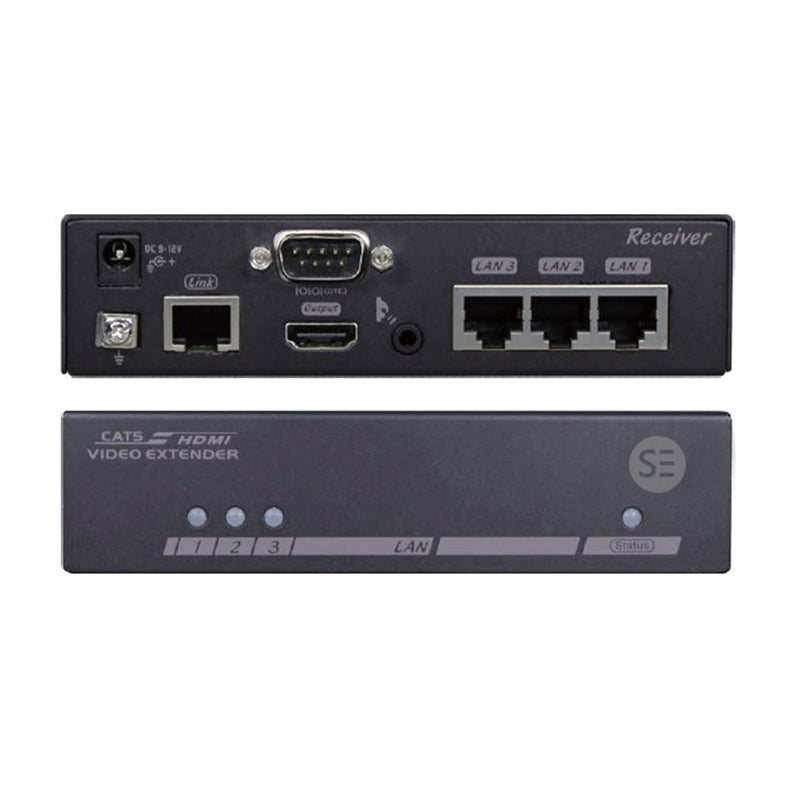

Receiver UnitSEDG-HDUEX-100EXTR |
|
| Input → Output : |
HDMI x 1 → RJ-45 x 1 |
HDMI x 1 → RJ-45 x 1 |
| LED (Status LED) : | Dual Color x 1 | Dual Color x 1 |
| LED (LAN LED) : | Single Color x 3 | Single Color x 3 |
| Video Resolution (max)* | UHD (3840 x 2160 @ 30Hz) | |
| Extension Distance* |
Full HD 1920 x 1080 @ 100M |
|
| Power Supply | DC 12V (Phantom Power) | |
| Enclosure | Metal | |
| Ethernet Port | RJ45 x 3 (10/100 Mbps) | |
| Serial Port |
DCE, DB9-F 115kbps (max.) |
DTE, DB9-M 115kbps (max.) |
| IR Extension | IR Tranceiver | IR Receiver |
| Weight (gram) | 410~420 | |
| H x W x D (mm) | 140 x 85 x 34 | |
*Above video resolution and extension distance are based on a single CATx 24AWG solid cable without cascade. STP cabling is recommended for environments with high EMI or RFI. For the best performance results, using stranded cabling or other thinner cables, and coiling of excess cable lengths should be avoided.

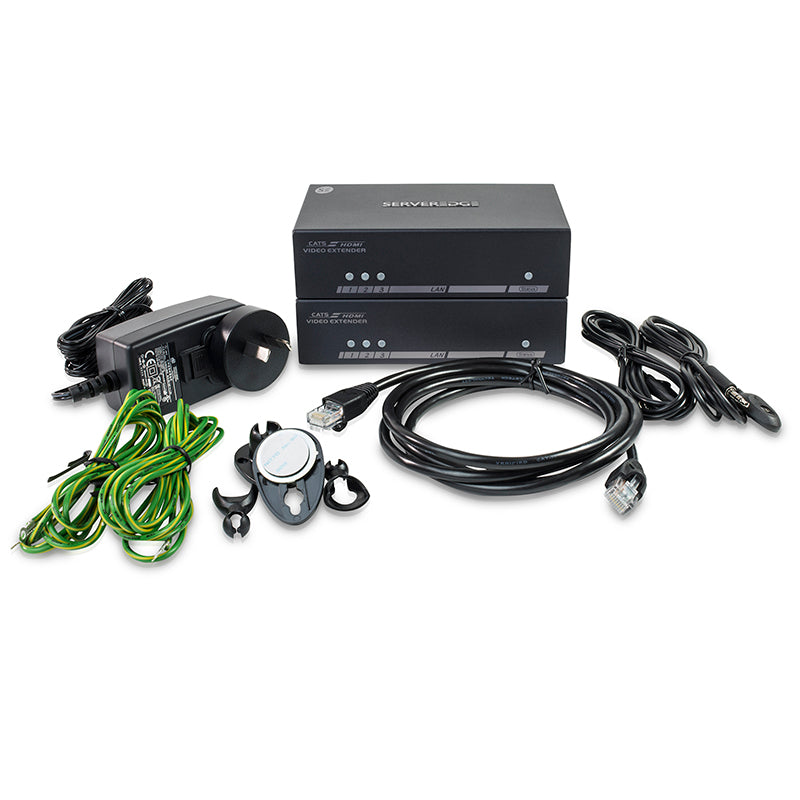

PACKAGING INCLUDES
| Extender Transmitter Unit | 1 |
| Extender Receiver Unit | 1 |
| Power Adapter Set (option: Power Adapter with necessary AC Cord/Plug-in Power Adapter) | 1 Set/Pc |
| Mini-USB to USB-A Cable | 1 |
| User's Manual | 1 |
| Foot Pad Set | 2 |
