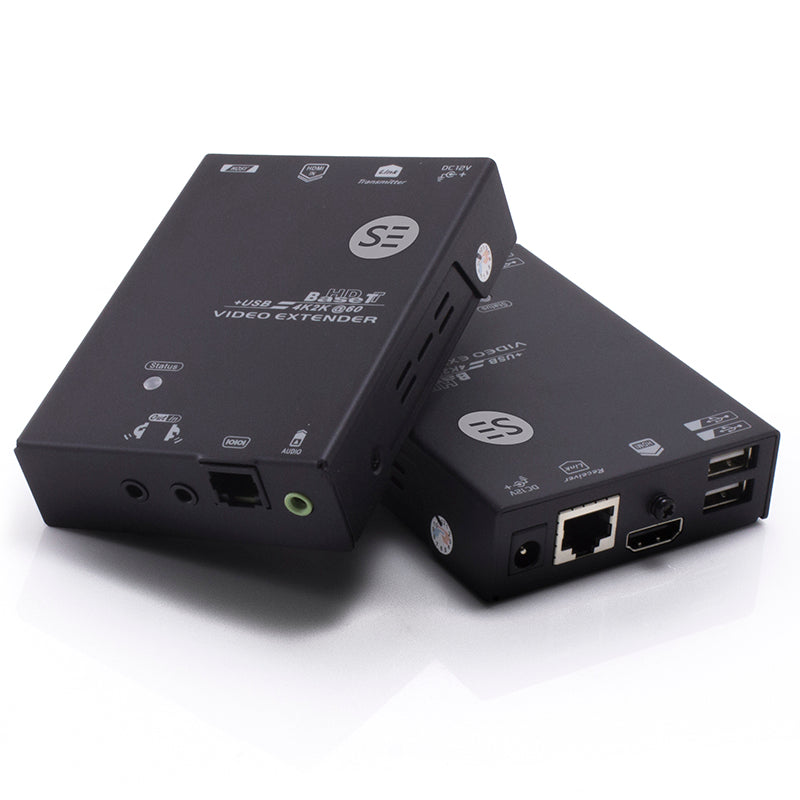

The Serveredge 3D HDMI HDBaseT Extender transmits full uncompressed 3D UHD HDMI signal, 4 USB signals and independent audio (analog stereo and Toslink (SPDIF)) over CAT5e/6/6a cable of up to 100 meters. It supports UHD (3840 x 2160) up to 90 meters and Full HD (1920 x 1080) up to 100 meters.
This Serveredge extender is HDCP complaint and requires single Power supply at either transmitter or receiver end.
PRODUCT FEATURE
* Send HDMI and 4 USB signal to multimedia display up to 100 meter
* Transmit full uncompressed HD video and independent audio (analog stereo and Toslink (S/PDIF)) over CAT5e/6/7 cable
* Bi-directional IR extension
* USB Port is compatible for most of popular USB devices (USB KM, USB printers, USB Scanner, external hard disk drives ....)
* Support resolutions up to 4Kx2K @60 (4:2:0) and HD Audio Formats
* Compatible with most of the popular screen resolution to XGA, SXGA, UXGA, WSXGA… Full HD, WUXGA, UHD system
* Low cost standard CAT5e/6/7 LAN cable
* HDTV, 3D HDTV compatible
* HDCP compliant and Blu-ray ready
* Compact size; easy to set up; simple to install
* Ideal for hospitality (hotels, conference rooms), digital signage (airports, shopping malls), surveillance cameras, whole-home networking and point-to-point consumer applications
* 2-year warranty
PRODUCT SPECIFICATION
Transmitter UnitSEDG-HDUEX-100EXTL |
Receiver UnitSEDG-HDUEX-100EXTR |
|
| Interface | HDMI x 1 Analog Stereo x 1 RJ-12 x 1 IR Transceiver x 1 IR Receiver x 1 USB Host x 1 |
HDMI x 1 Analog Stereo x 1 RJ-12 x 1 IR Transceiver x 1 IR Receiver x 1 USB Host x 1 |
| Interconnection | RJ-45 x 1 | RJ-45 x 1 |
| LED (Link / Video status) | Multi-Colour x 1 | Multi-Colour x 1 |
| Video Resolution (max)* | UHD (3840 x 2160 @ 30Hz) UHD (3840 x 2160 @ 60Hz YCbCr 4:2:0) Full HD (1920 x 1080 @ 60Hz) |
|
| Extension Distance* | UHD 3840 x 2160 @ 90M Full HD 1920 x 1080 @ 100M |
|
| Power Supply | DC 12V (Phantom Power) | |
| Enclosure | Metal | |
| Weight (gram) | 311~340 | |
| H x W x D (mm) | 24 x 75 x 102 | |
*Above video resolution and extension distance are based on a single CATx 24AWG solid cable without cascade. STP cabling is recommended for environments with high EMI or RFI. For the best performance results, using stranded cabling or other thinner cables, and coiling of excess cable lengths should be avoided.

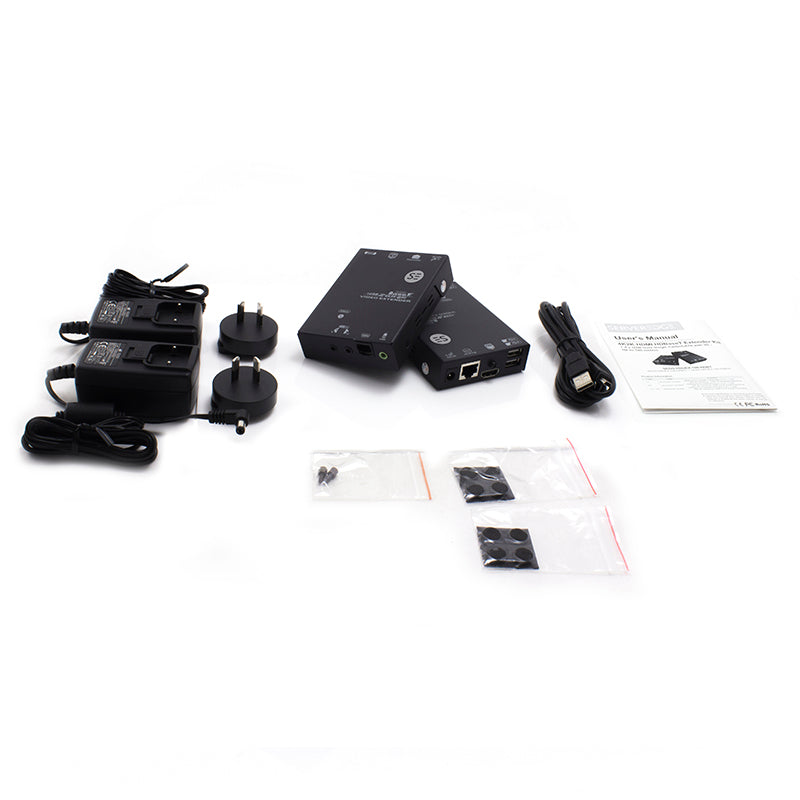

PACKAGING INCLUDES
| Extender Transmitter Unit | 1 |
| Extender Receiver Unit | 1 |
| Power Adapter Set (option: Power Adapter with necessary AC Cord/Plug-in Power Adapter) | 1 Set/Pc |
| Mini-USB to USB-A Cable | 1 |
| User's Manual | 1 |
| Foot Pad Set | 2 |
