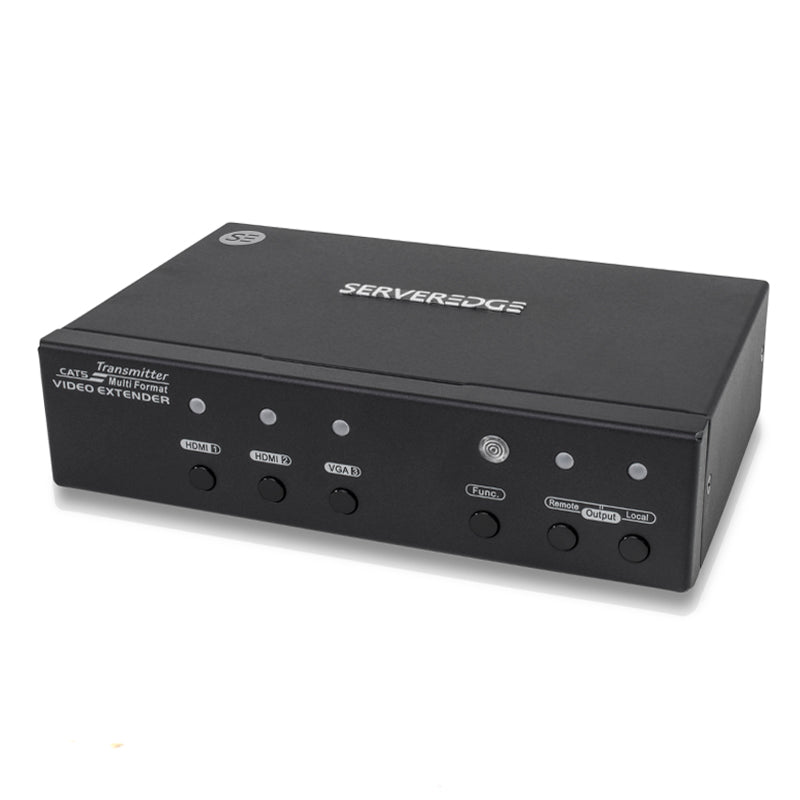

The Serveredge HD2V-EX-100-HDBT is a Multi Input Switcher Transmitter (Tx) with (2) HDMI, (1) VGA, Audio, IR, Control Inputs with (1) HDBaseT, Local HDMI Output and Audio Out. It features two HDMI inputs and a VGA input with 3.5mm audio connector. The unit combines the benefits of a switcher with built-in auto-switching and the advantages of extended-distance HDBaseT signal transmission over a single cable. The switcher enables automatic display on/off, auto-switching, third-party control, plus other control features.
The optional Graphical User Interface (GUI) function makes control easy and more effective. The well-designed GUI can free users from giving complex commands. It allows you to name and portray your source and display icons for a user-friendly operation.
Multi-functions for EDID setting, like EDID Copy and EDID Pre-setting, ensuring accurate output display. Enable the unit to separately learn Audio and Video EDID for multimedia/ Home theatre system integration it can also read and store the EDID from the connecting display to the video extension.
It supports resolutions up to UHD (3840 x 2160)and Full HD (1920 x 1080) and is compatible with most of the popular screen resolution. This Serveredge HD2V-EX-100-HDBT extender kit is HDCP compliant and only requires single power supply at either transmitter or receiver end. It features compact size for easy set up and install.
PRODUCT FEATURE
3×1 HDBaseT™ switcher
Features two HDMI inputs plus a VGA input with 3.5mm audio connector, which allows advanced HDMI display devices to be used with legacy VGA sources
Transmits HDMI signals up to 100m @ 1080p and 70m @ 4K/UHD using CAT6a/7 cable. Uses easy-to-integrate category cable for low-cost, reliable system installation
Auto-switching
Selects active input when sources are connected or if there is a change in source power status. Eliminates need for complex control system in small AV systems
Flexible control options for compatibility with 3rd-party control systems. RS-232 controlled from HDBaseT connection reduces integration time and costs. Front panel Input Select button and Remote for easy switching between sources. Input source sequence selectable
Graphical User Interface (GUI)
Allows you to name and portray your source and display icons for a user-friendly operation. Makes control easy and more effective
Warranty : 2 Years
PRODUCT SPECIFICATION

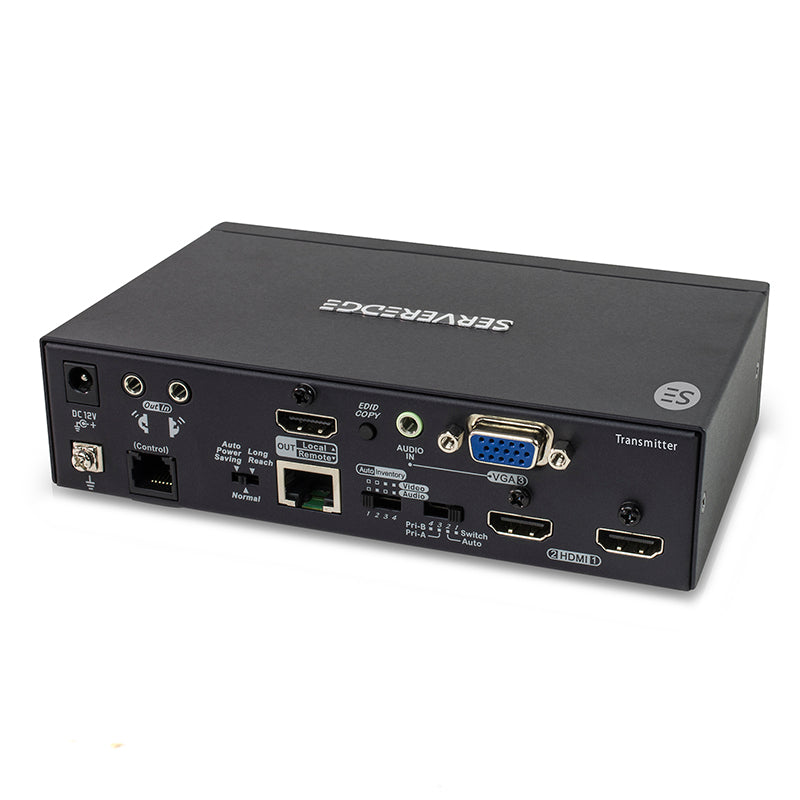

| Input | HDMI x 2, VGA + Analog Stereo x 1 |
| Output | HDMI x 1 + Analog Stereo x 1 |
| Connection | RJ-45 x 1 |
| LED Indicator (Power/Status) | Source x 3, Remote x 1, Local x 1 |
| Push Button | Port Select x 3, Function x 1, Remote x 1, Local x 1, EDID copy x 1 |
| IR Extension | IR Transceiver x 1, IR Receiver x 1 |
| Signal Configuration (Video/Audio) | Auto/Inventory |
| Mode Configuration | Switch/Auto/Pri-A/Pri-B |
| Link Port Configuration | Auto Power Saving/Normal/Long Reach |
| Video Resolution (Max.)* | UHD (3840 x 2160) for HDMI Full HD (1920 x 1080) for VGA |
| Extension Distance* | HDMI Full HD (1920 x 1080) @ 100M UHD (3840 x 2160) @ 70M VGA Full HD (1920 x 1080) @ 100M |
| Enclosure | Metal |
| Power Supply | DC 12V |
*Above video resolution and extension distance are based on a single CATx 24AWG solid cable without cascade. STP cabling is recommended for environments with high EMI or RFI. For the best performance results, using stranded cabling or other thinner cables, and coiling of excess cable lengths should be avoided.

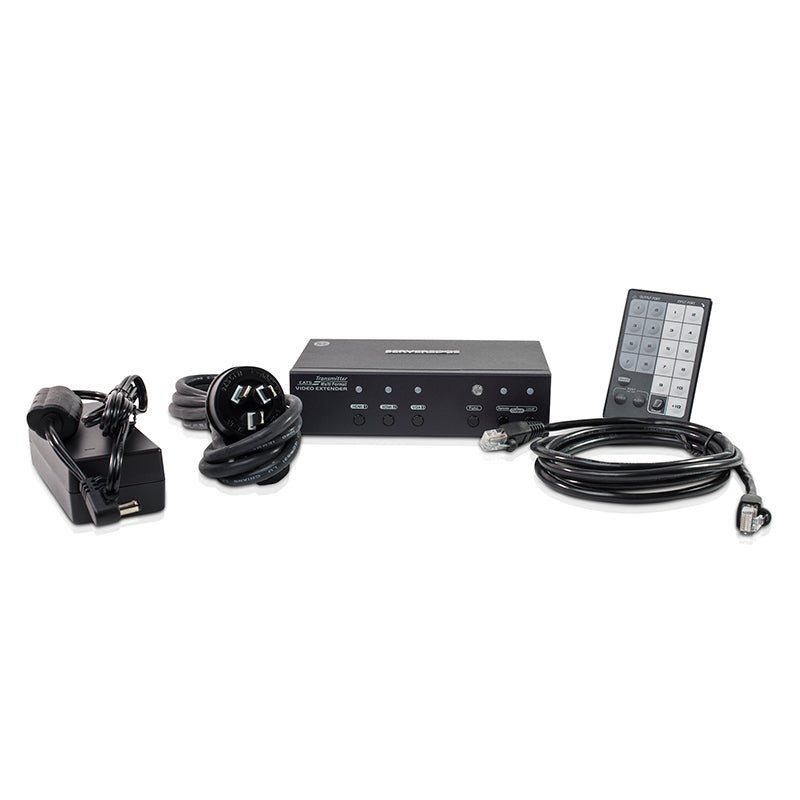

PACKAGING INCLUDES
| HDMI Extender Transmitter Unit | 1 |
| Power Adapter Set (option: Power Adapter with necessary AC Cord/Plug-in Power Adapter | 1 |
| CAT5 Cable | 1 |
| User's Manual | 1 |
| Foot Pad Set | 1 |
