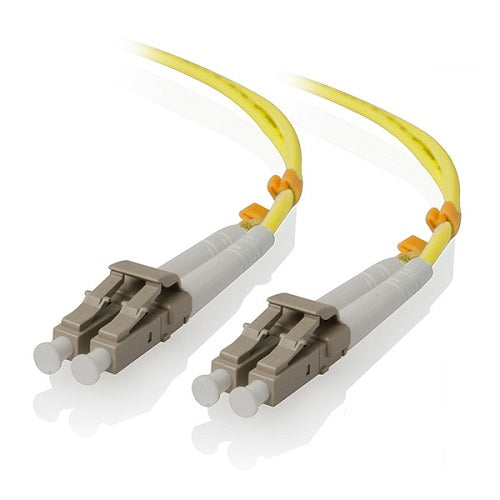

The Single mode OS2 cables are designed to support very high transfer speed and have universal loose tube construction, the cables are compliant to fibre type B1.3 in IEC 6 793-2-5-7 G652d capable of supporting up to 1 gigabit applications over very long distances.
PRODUCT FEATURE
* Single Mode OS2 fibre optic cable
* Available in various lengths starting from 0.5m to 50m
* Compliant to fibre type B1.3 in IEC 6 793-2-5 & G652d
* Low Smoke Zero Halogen Jacket for minimal toxic emissions in case of fire
* 100% optically tested and provided with test reports
PRODUCT SPECIFICATION
* Connector Type: LC, LC
* Wavelengths: 09/125 µm
* Insertion loss: <0.3 dB per 300 m @ 1550 nm or 1300 nm
* Fiber: Glass
* Number of fibers: 2
* Jacket: LSZH (Low Smoke Zero Halogen)
* Cable outer diameter: 3.0 mm
AVAILABLE LENGTHS
| Part No. |
Length |
| LCLC-0.5-OS2 | 0.5m |
| LCLC-01-OS2 | 1m |
| LCLC-1.5-OS2 | 1.5m |
| LCLC-02-OS2 | 2m |
| LCLC-2.5-OS2 | 2.5m |
| LCLC-03-OS2 | 3m |
| LCLC-05-OS2 | 5m |
| LCLC-10-OS2 | 10m |
| LCLC-15-OS2 | 15m |
| LCLC-20-OS2 | 20m |
| LCLC-50-OS2 | 50m |
