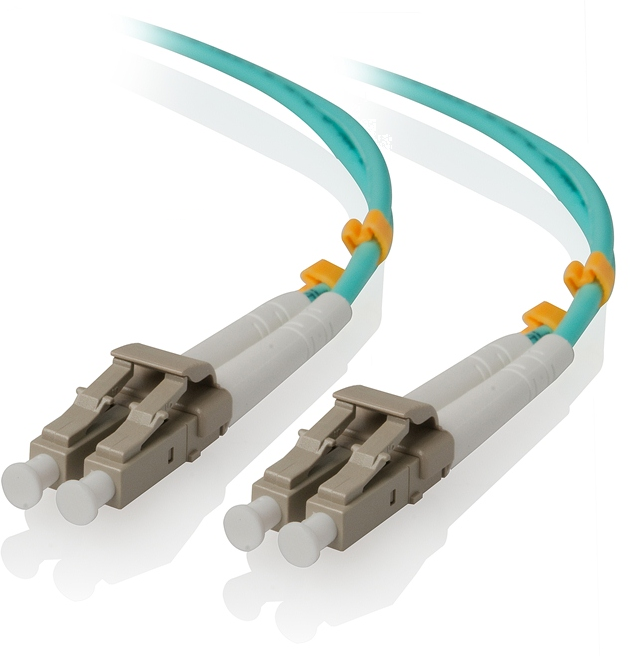

The Multi Mode OM4 cables are designed to support high transfer speed, the cables are capable of supporting up to 1 gigabit applications at the same time being backward compatible with OM3 and OM2 infrastructure. The cables meet or exceed industry standard specifications; each cable is individually tested for maximum reliability and comes with performance reports.
PRODUCT FEATURE
* Multi Mode OM4 fibre optic cable
* Available in various lengths starting from 0.5m to 20m
* Low Smoke Zero Halogen Jacket for minimal toxic emissions in case of fire
* 100% optically tested and provided with test reports
PRODUCT SPECIFICATION
* Connector Type: LC, LC
* Wavelengths: 50 µm (OM3)/125 µm
* Attenuation: At 850 nm: <3.0 dB per km / At 1300 nm: <1.2 dB per km
* Insertion loss: <0.5 dB per 300 m @ 850 nm or 1300 nm
* Fiber: Glass
* Number of fibers: 2
* Jacket: LSZH (Low Smoke Zero Halogen)
* Cable outer diameter: 3mm +/-0.2mm
* Safety: ETL/c-ETL
AVAILABLE LENGTHS
| Part No. |
Length |
| LCLC-0.5-OM4 | 0.5m |
| LCLC-01-OM4 | 1m |
| LCLC-1.5-OM4 | 1.5m |
| LCLC-02-OM4 | 2m |
| LCLC-03-OM4 | 3m |
| LCLC-05-OM4 | 5m |
| LCLC-07-OM4 | 7m |
| LCLC-10-OM4 | 10m |
| LCLC-15-OM4 | 15m |
| LCLC-20-OM4 | 20m |
