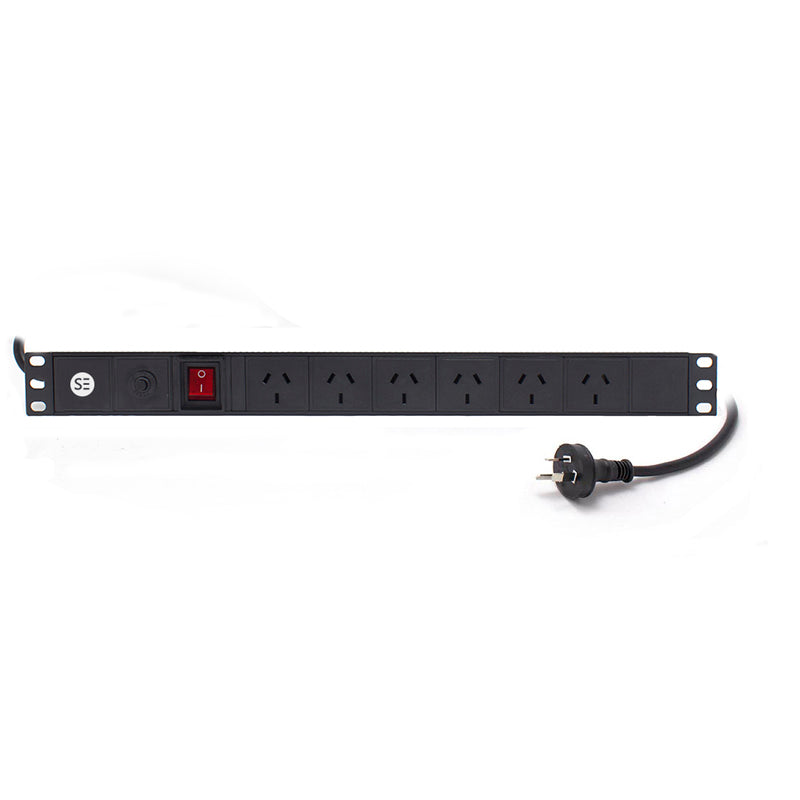

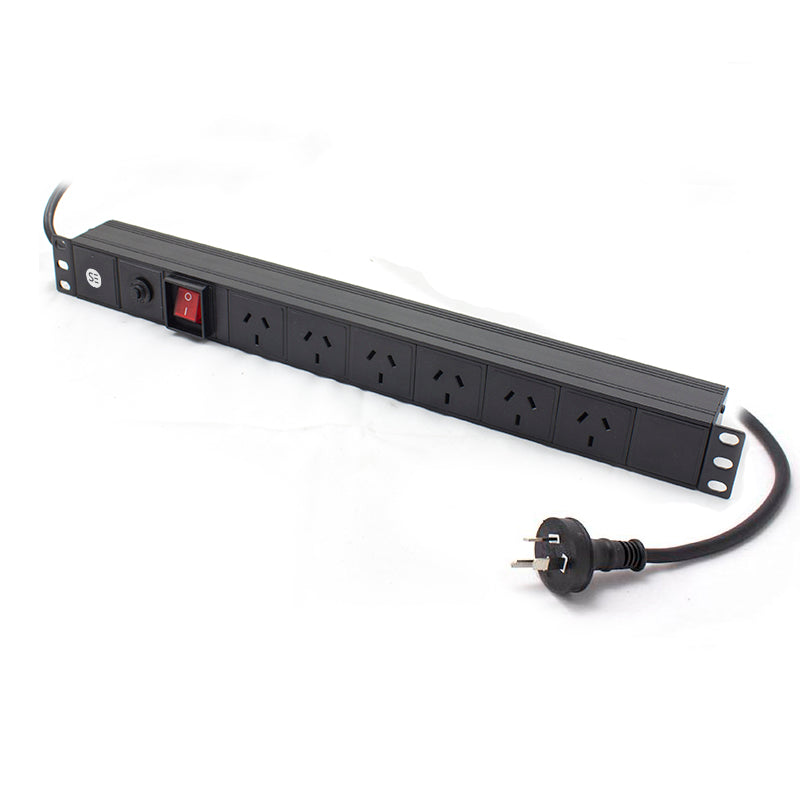

The Serveredge basic PDUs are the most efficient way to power protect your rack mount equipments. Serveredge PDUs are built to both Australian & International standards and requirements, so that your equipment can deliver the most optimum performance while using minimum of your valuable rack space. The PDUs have a Metal Alloy casing which makes them durable for rack mount use and also allows both vertical and horizontal applications.
* Optional 100mm recessed brackets included
PRODUCT FEATURES
• Output Ports: (6) 3 Pin AUS GPO
• Overload Protection
• Horizontal & Vertical Mounting capabilities saves valuable rack space.
• Optional 100mm recessed brackets included
• Input Power Source: 3 Pin AUS Plug, 10A
• Power Indicator Light.
* Warranty: 2 Years Manufacturers Warranty
PRODUCT SPECIFICATIONS
| Configuration | 1RU, Horizontal |
| Colour | Black |
| Maximum Depth | 44.6mm (optional 100mm recessed brackets included) |
| Maximum Height | 45mm |
| Maximum Width | 482.6mm |
Output |
|
| Output | 6 x 3 Pin AUS GPO |
Input |
|
| Input | 1 x 3 Pin Aus Plug |
| Cable-length | 2m |
| Maximum input current | 10A |
| Voltage | 240V |
Conformance and Compliance |
|
| EESS Conformity |
PACKAGING INCLUDES
| SEDG-6P-GPO | 1 |
| Regular removable bracket | 1 |
| 100mm recessed removable bracket | 1 |
