The KR08DHU is a rack mountable KVM switch with the DVI video interface designed to control 8 PCs from a single keyboard, mouse and monitor console. It also provides support for multimedia keyboard, audio & mic. The KVM enables computer selection via both front panel push buttons & hotkeys.
*Cables required to connect the monitor and the computers are sold separately.
Suitable Cables: DVI-DL-02-MM, DVI-DL-03-MM, USB2-02-AB, USB2-03-AB, MM-AD-02, MM-AD-02
PRODUCT FEATURE
* One USB console controls up to eight DVI interface computers and two additional USB 2.0 devices
* Unique DVI-I/ Audio/ Mic interface

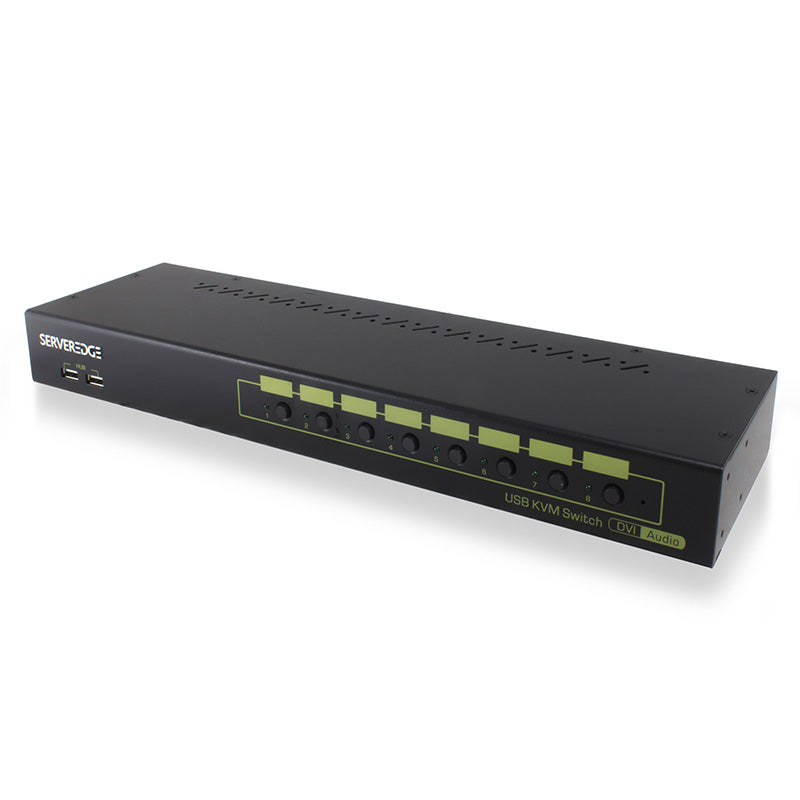

* Computer selection via front panel pushbuttons & hotkeys

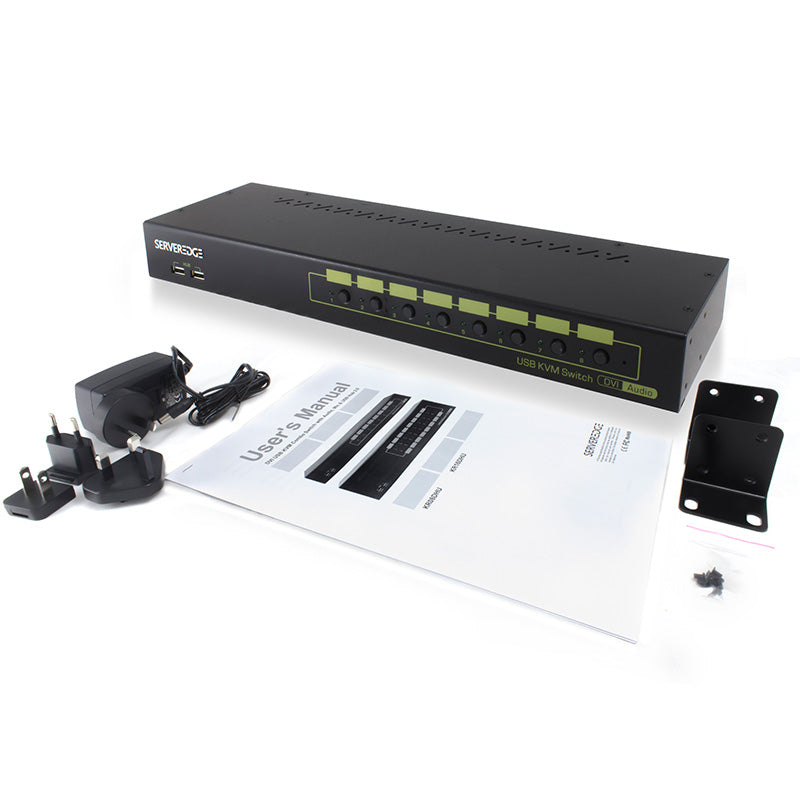

* Includes rackmount kit for easy installation into server rack cabinet
* Active Sync Replication (A.S.R.) for DDC emulation
* Warranty : 1 Year
PRODUCT SPECIFICATION
| Number of Ports | 8 |
| Number of Consoles | 1 |
| Console Keyboard Connector | USB Type A Female |
| Console Mouse Connector | USB Type A Female |
| Console Video Connector | DVI-I Female |
| Console Audio/Mic Connector | 2 x 3.5 mm Audio/ Mic Jack Female |
| Console USB Hub Ports | 2 x USB Type A Female |
| PC Mouse Connector | Via PC Keyboard Connector |
| PC Video Connector | 8 x DVI-I Female |
| PC Audio/Mic Connector | 16 x 3.5 mm Audio/ Mic Jack |
| PC selection | Push Buttons/ Hotkeys |
| PC port LED | 8 (Green) |
| PC Keyboard Connector | 8 x USB Type B Female |
| Keyboard & Mouse Emulation | Yes |
| Operation Temperature | 0 ~ 40 ℃ |
| Storage Temperature | -20 ~ 60 ℃ |
| Humidity | 0 ~ 90 % RH, Non-condensing |
| Power Adapter | DC 9V |
| Weight | 2.4 kg |
| Dimension(L×W×H) | 406 x 100 x 44mm |
| Digital Display Resolution | 1920 x 1200 |
| Analog Display Resolution | 2048 x 1536 |
