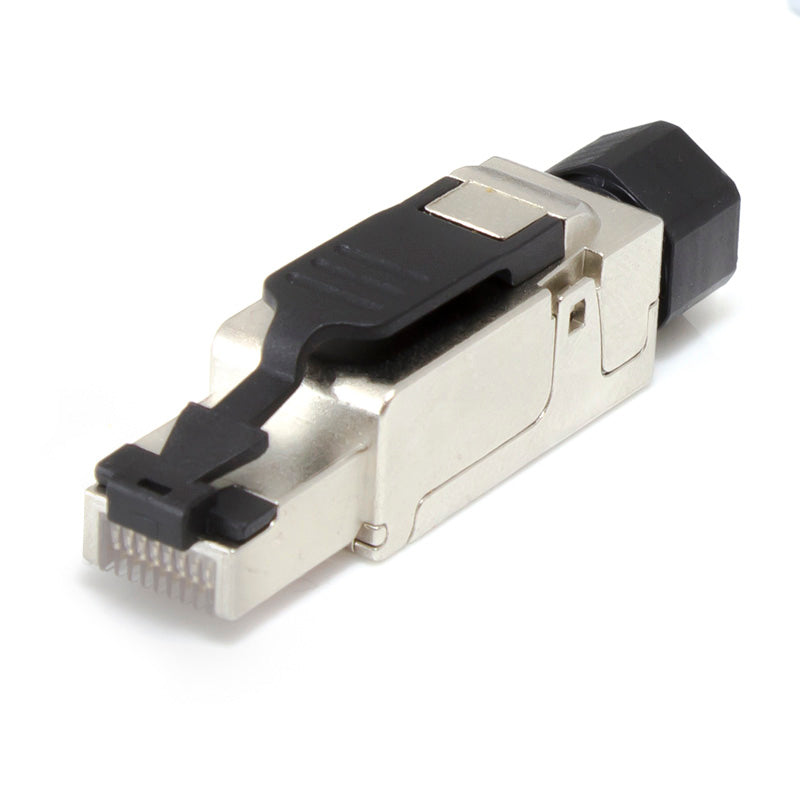

The Serveredge Cat6A Shielded Industrial Field Connector with 568A type load bar is designed to terminate CAT6A cables with a large diameter 23AWG - 26 AWG. It is quick and easy to terminate and offers reliable performance.
SPECIFICATIONS
TRANSMISSION PERFORMANCE |
|
Meet all requirements specified in connecting hardware requirement of: |
|
ISO/IEC 11801,Category 6A |
|
ANSI/TIA-568-C.2, Category 6A |
ELECTRICAL |
|
|
Electrical Insulation Resistance |
500 MO min. @ 100V d.c |
|
Dielectric Withstanding Voltage |
1000V D.C or A.C Peak, Contact to Contact; 1500V D.C or A.C Peak, Contact to Shield @ 60Hz for 1 Minute. |
MECHANICAL |
|
|
IDC Wire Gauge |
23 - 26 AWG |
PHYSICAL |
|
|
Housing |
Zinc-alloy fully shielded |
|
Contact pin |
Phosphor Bronze Alloy Plated With 50 micro-inch of Gold |
|
IDC |
Phosphor Bronze Alloy With 100 micro-inch 100% Sn Alloy |
GUARANTEE/WARRANTY
Serveredge products are manufactured at the highest standards using highest quality materials at an affordable price. This Serveredge product comes with a 2
years warranty standalone or a 25 years warranty as part of a certified structured cabling project. Subject to Serveredge Terms and Conditions*
