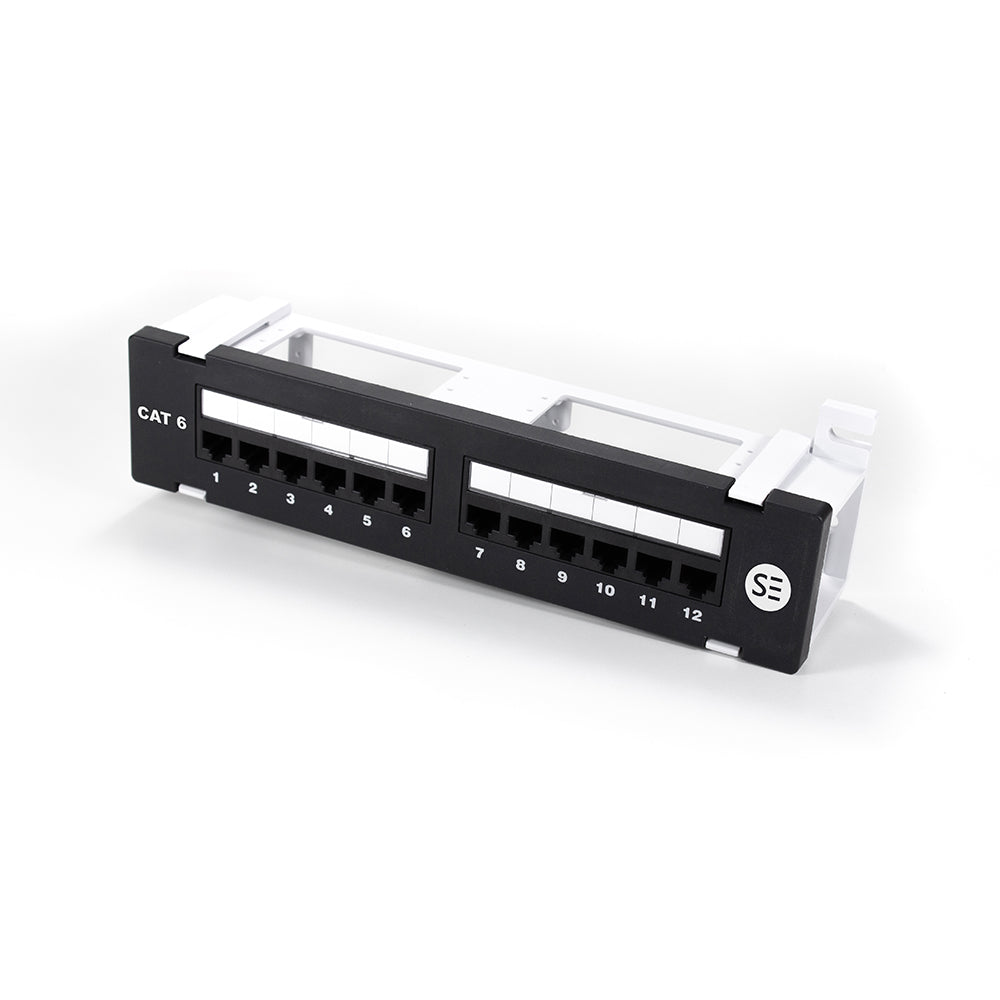

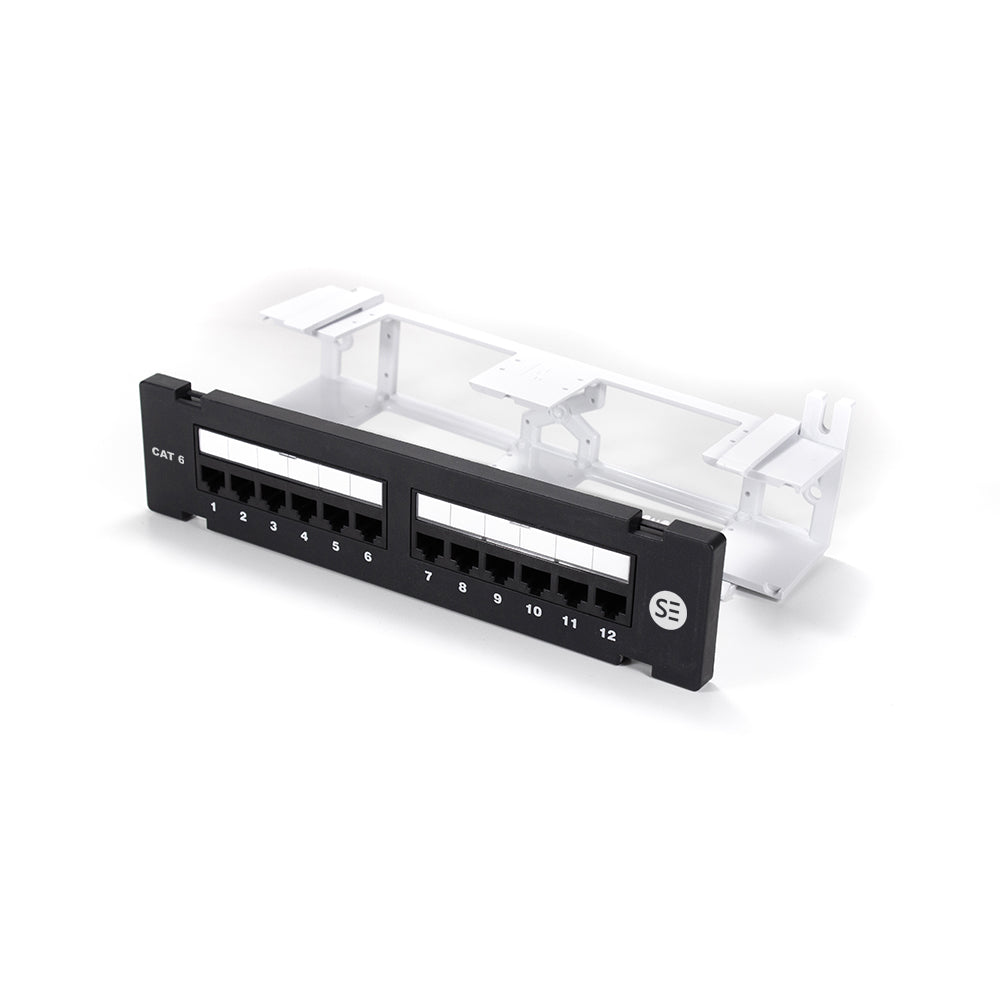

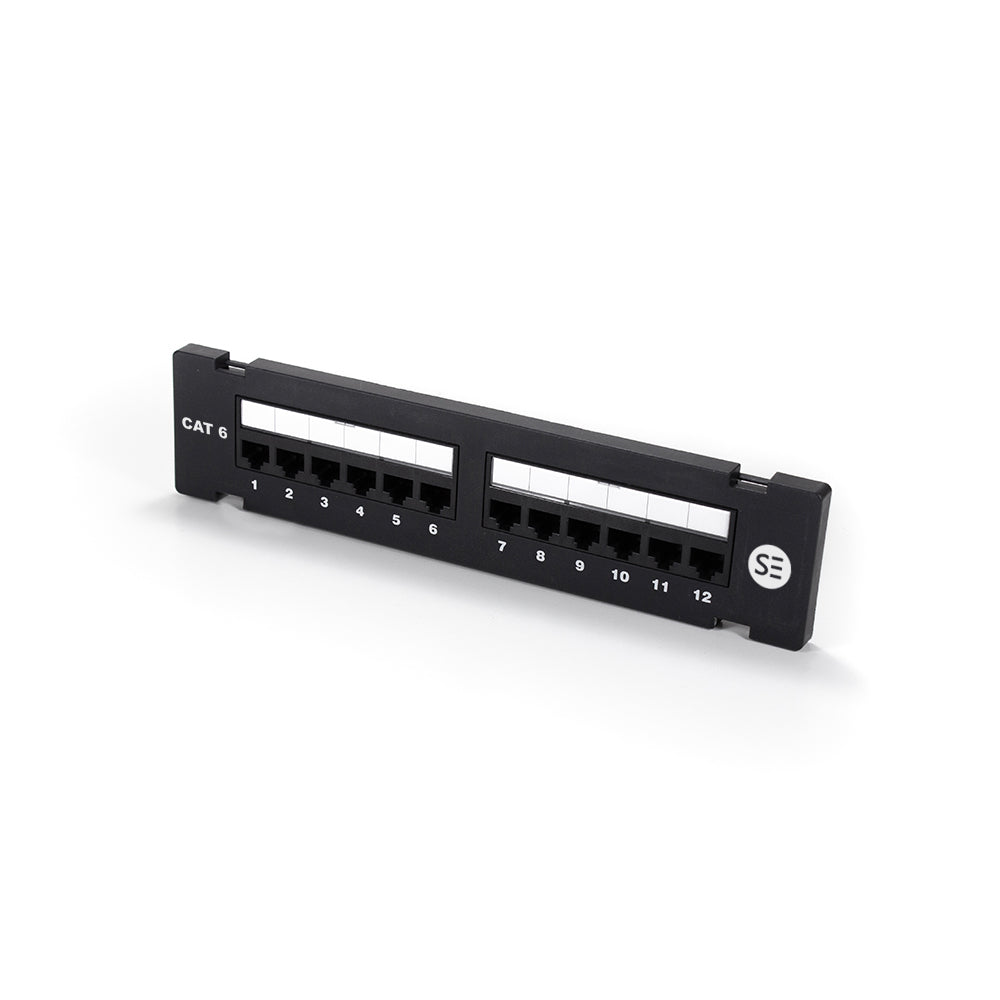

The Serveredge CAT6 Surface Mount Patch Panel is wall mounted with RJ45 jack panels with standard-surpassed transmission performance. It supports high bandwidth up to 250MHz and passes TIA/EIA-568B.2-1 Category 6 performance.
PRODUCT FEATURE
• Meets or exceeds ISO/IEC 11801, TIA/EIA-568-B.2-1 Standards
• UL 1863 Safety Listed
• Printed label for port identification
• Jack Type RJ45 8P8C CAT6 UTP
• IDC Wire Gauges 22 – 24 AWG
• Mounted on 89D bracket
• Replaceable 6 Port modules
• Hinged / snapped style windows
• Krone and 110 punch down tool compatible
PRODUCT SPECIFICATION
PHYSICAL
Housing: High-Impact, Flame retardant plastic, UL 94V-0
Spring Wire: Phosphor Bronze alloy plated with 50 micro-inch of Gold
IDC: Phosphor Bronze alloy with 100 micro-inch 100% Sn alloy
ELECTRICAL
Ports: 12
RU: N/A
Contacts: 50u Gold plated
Wiring Standards: T568A & T568B
Standards: Permanent Link & Channel ANSI/TIA-568-C.2, IEC60603-7-2 2nd Edition ISO/IEC11801 2.2 Edition, CENELEC EN 50173-1:2011
Network Media: CAT 6
Compatibility: Compatible with 22-26 AWG Solid and stranded cables
Mounting Point Retention Strength: 7.9kg
Temperature: -10° ~ 60°C (14°F ~ 140°F)
Certifications: CE, FCC
PRODUCT
Dimensions: (W) 254.25mm x (D) 60mm x (H) 58.6mm
Rack Height: N/A (Wall Mounted)
Colour: Black
PRODUCT INCLUDES
(1) 12 Port CAT6 Surface mounted patch panel
(4) Cable Ties
(1) Instructions
