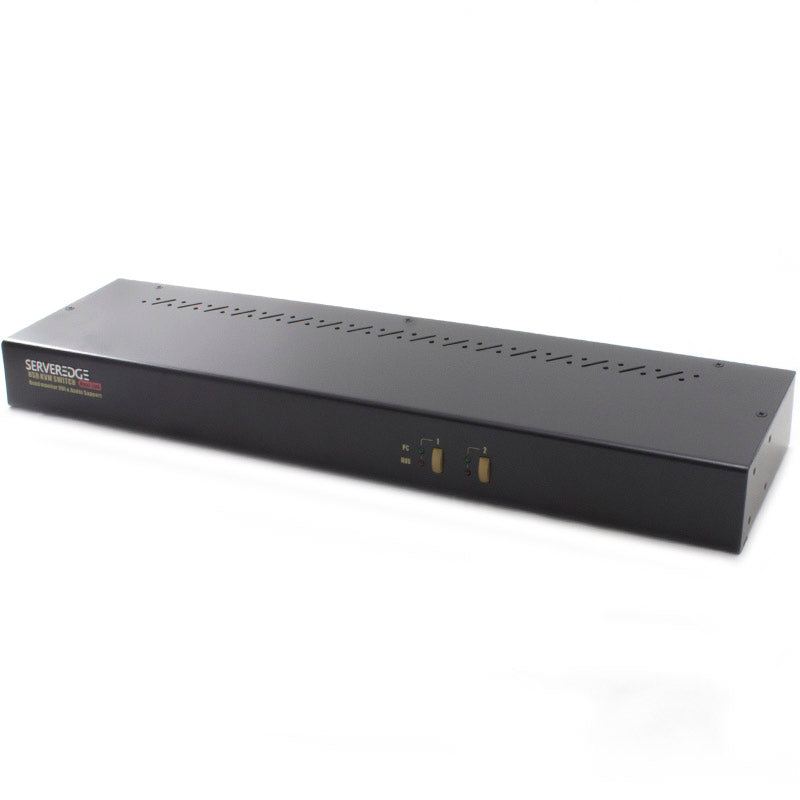

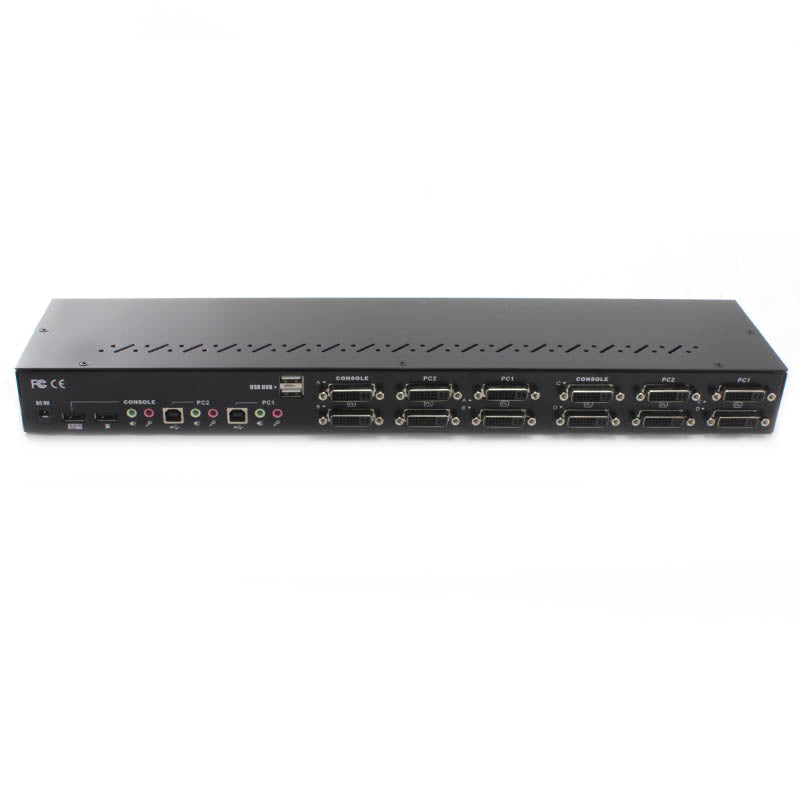

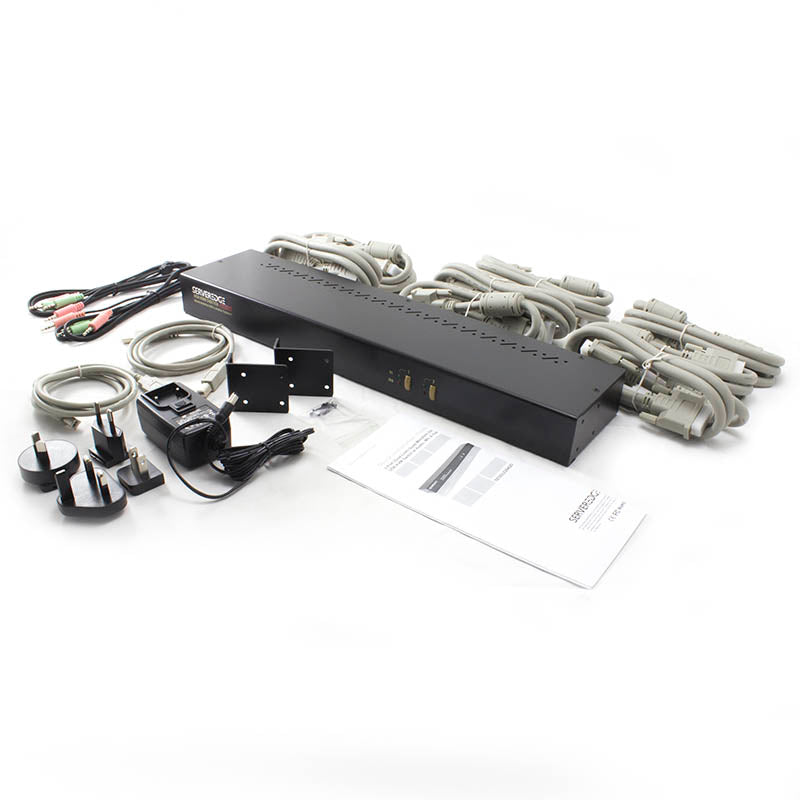

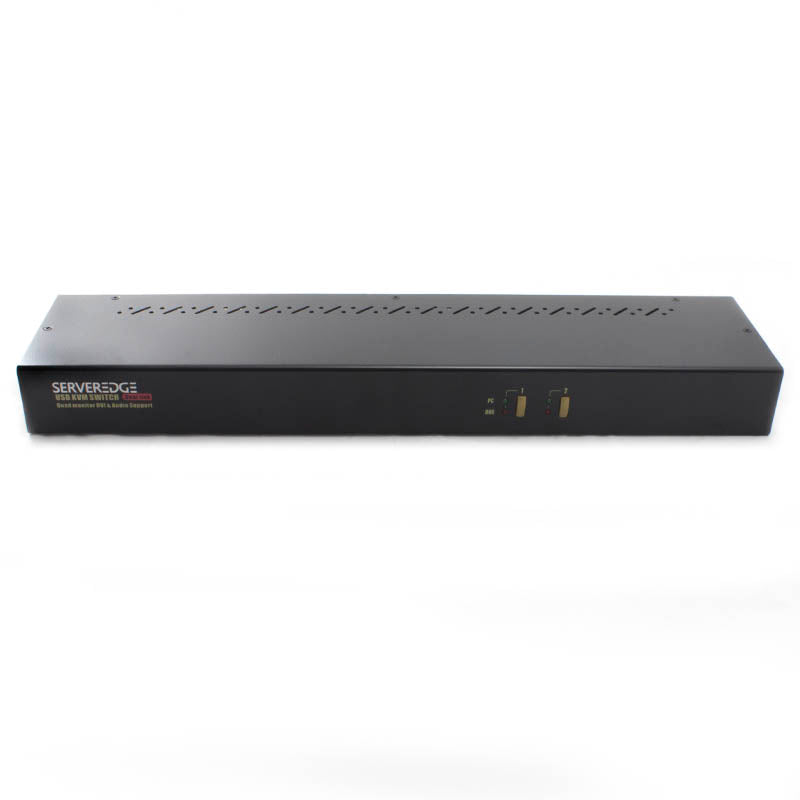

The Serveredge SEDDL0204QD 2-Port Dual-Link Quad Monitors DVI USB KVM Switch with Audio & Mic is TMDS-compliant and designed for sharing up to 4 DVI enabled displays between two computers with one keyboard and one mouse. The KVM supports DVI Dual Link video resolutions of up to (2560 x 1600) and also Analogue VGA resolutions up to (2048 x 1536). The KVM has 2 additional USB 2.0 ports for sharing USB peripherals such as external storage drives, web cams, printers etc.
PRODUCT FEATURE
* 2-Port Dual-Link Quad monitors DVI USB KVM switch with audio, mic & hub
* 2 x USB 2.0 Ports for sharing haring USB peripherals such as external storage drives, web cams, printers etc.
* TMDS / HDCP specifications compliant
* True Transparent USB emulation technology for all types of keyboards and mice
* Active Sync Replication for all time DDC emulation
* Supports DVI Dual Link video resolutions of up to (2560 x 1600) and also Analogue VGA resolutions up to (2048 x 1536)
* Warranty : 3-years
PRODUCT SPECIFICATION
Product Description |
2-Port Dual-Link Quad Monitors DVI USB KVM Switch with Audio & Mic |
| Number of Ports | 2 |
| Number of Console | 1 |
| Console Keyboard Connector | USB 2.0 Type A Female |
| Console Mouse Connector | USB 2.0 Type A Female |
| Console Video Connector | 4 x DVI Female |
| Console Audio/Mic Connector | 2 x 3.5mm Audio/Mic Jack Female |
| Console USB Hub Ports | 2 x USB 2.0 Type A Female |
| PC Keyboard Connector | 1 x USB Type B Female (per PC) |
| PC Mouse Connector | Via PC Keyboard Connector |
| PC Video Connector | 8 x DVI Female |
| PC Audio/Mic Connector | 4 x 3.5mm Audio/Mic Jack Female |
| PC selection | Push Button / Hotkeys |
| PC port LED | 2 (Green) |
| Hub port LED | 2 (Red) |
| Analog Display Resolution | 2048 x 1536 |
| Digital Display Resolution | 2560 x 1600 |
| Keyboard & Mouse Emulation | Yes (TTU) |
| Auto Scan Delay Time | 10~60 sec |
| DDC Emulation | A.S.R. |
| Power Adapter | DC 9V/3A |
| Weight | 1.6Kg |
| Dimension(L×W×H) | 438 x 100 x 44mm |
