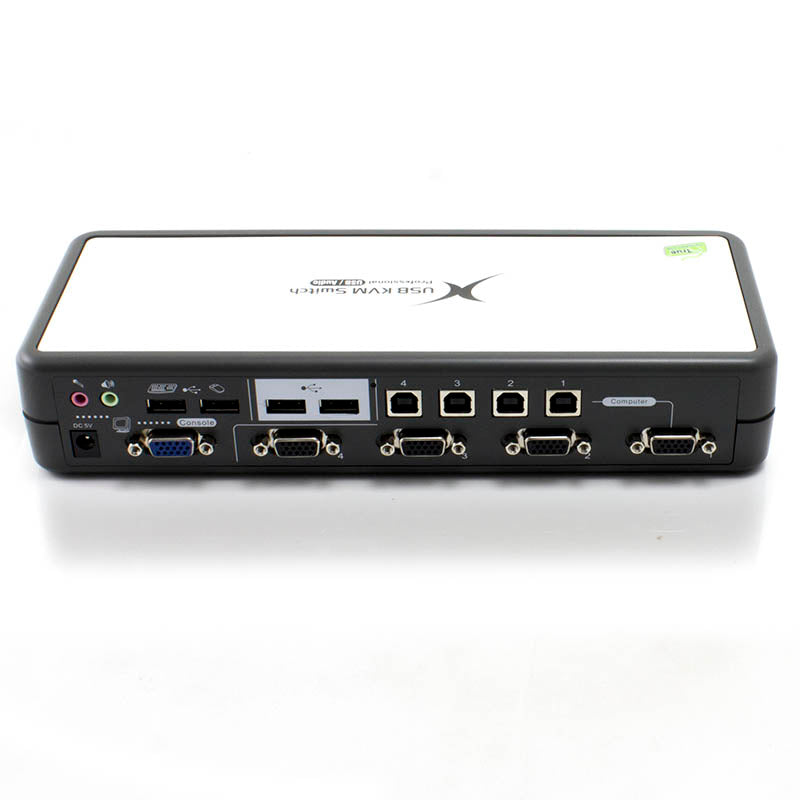

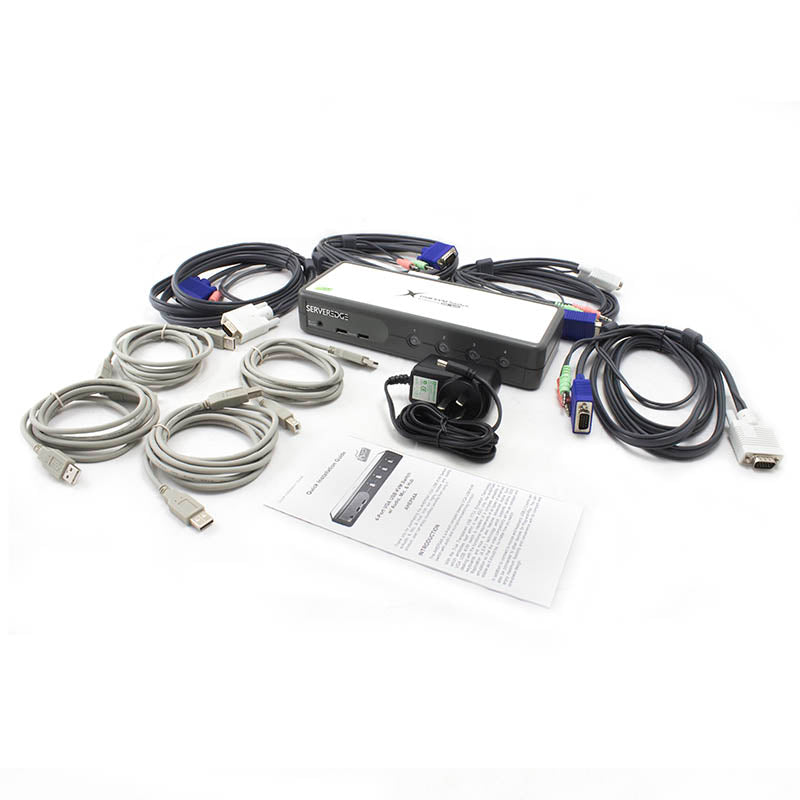

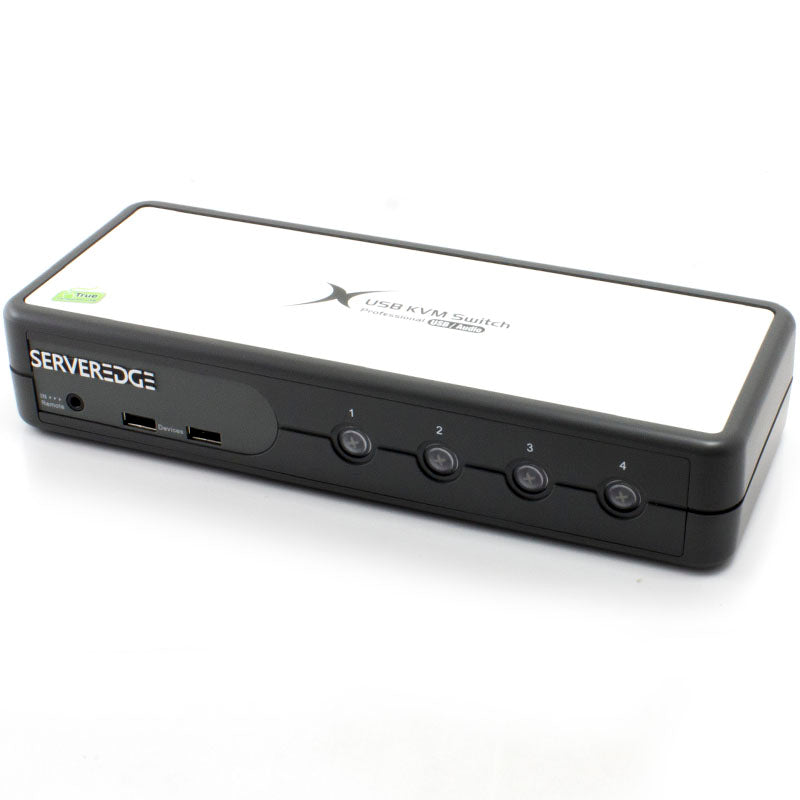

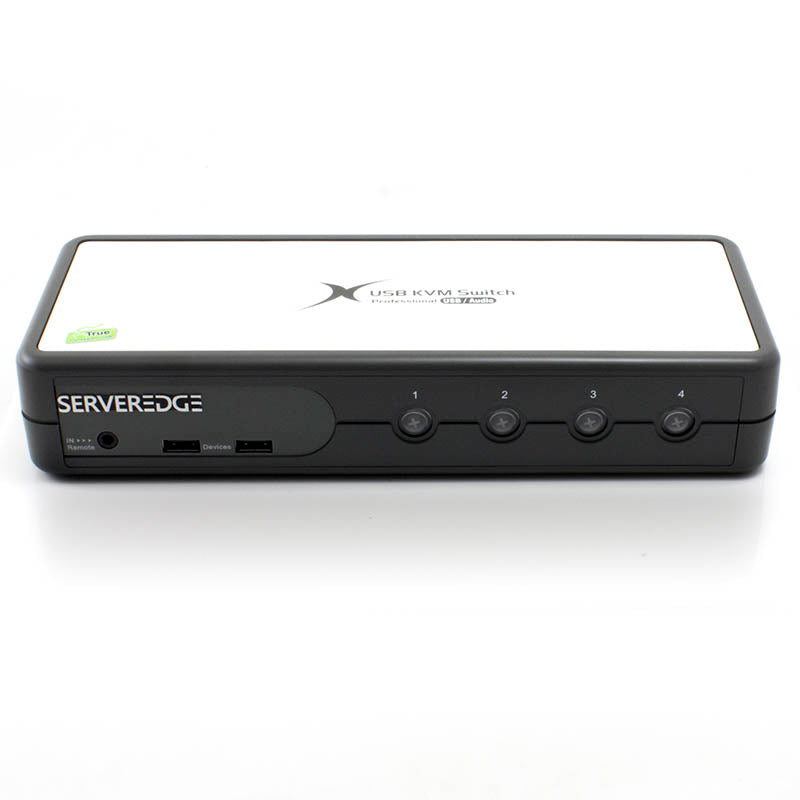

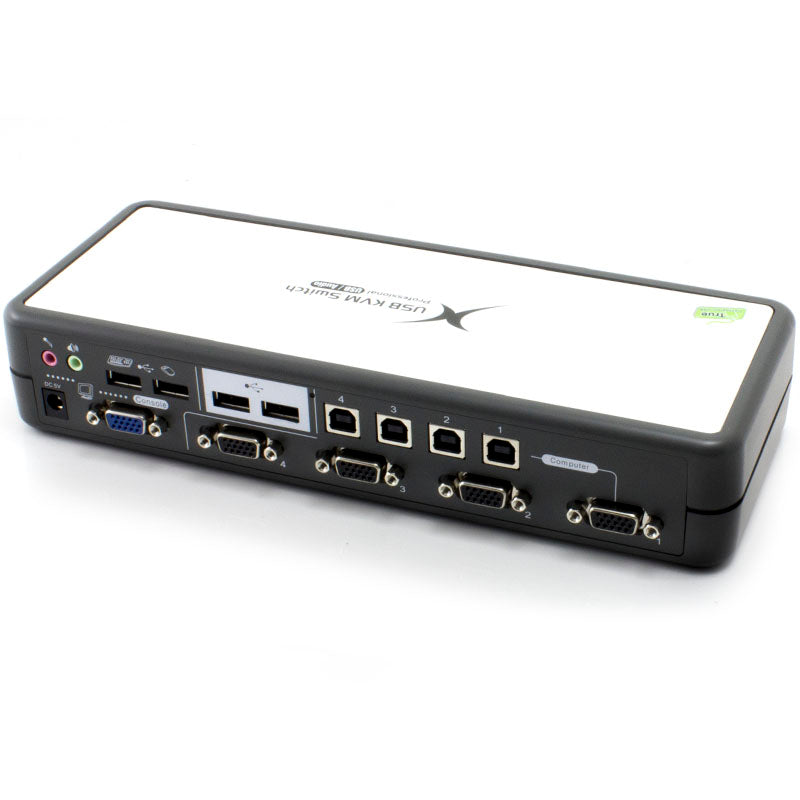

The Serveredge KD04UVH2 is a 4-port USB KVM switch with audio and microphone switching function. It also provides four USB 2.0 hub ports for high-speed USB 2.0 devices sharing. You can select the computers, USB device hub port control and audio/mic channel independently, using either front-panel buttons or keyboard hotkeys. This stylish Compact Desktop KVM Switch family is much more than an ordinary desktop KVM Switch. With Active Sync Replication (A.S.R.), KD04UVH2 can fully support advanced DDC video signaling requirement of the latest operating systems, such as Windows 7 and Mac OS X.
PRODUCT FEATURE
* 4 extra USB 2.0 device port for high-speed USB device sharing
* True Transparent USB emulation technology for any keyboard and mouse
* Active Sync Replication for DDC emulation
* Independent/simultaneous switching of computer/audio/USB hub ports
* PC selection by push button and keyboard hotkeys
* LED indicators for easy status monitoring
* Low power consumption using ASIC
* VGA video resolution support up to 2048 x 1536
* IR remote switching control
* Warranty : 3-years
PRODUCT SPECIFICATION
Product Description |
4-Port VGA USB KVM Switch w/ Audio, Mic & Hub |
| Number of Ports | 4 |
| Number of Console | 1 |
| Console Keyboard Connector | USB 2.0 Type A Female |
| Console Mouse Connector | USB 2.0 Type A Female |
| Console Video Connector | VGA HDB15 Female |
| Console Audio/Mic Connector | 2 x 3.5mm Audio/Mic Jack Female |
| Console USB Hub Ports | 4 x USB 2.0 Type A Female |
| PC Keyboard Connector | 4 x USB Type B Female |
| PC Mouse Connector | Via PC Keyboard Connector |
| PC Video Connector | 4 x VGA HDB15 Female |
| PC Audio/Mic Connector | 4 x 3.5mm Audio/Mic Jack Male |
| PC selection | Push Button / Hotkeys |
| PC port LED | 4 |
| Analog Display Resolution | 2048 x 1536 |
| Keyboard & Mouse Emulation | Yes (TTU) |
| Auto Scan Delay Time | 5~100 sec |
| Operation Temperature | 0 ~ 40°C |
| Storage Temperature | -20 ~ 60°C |
| Humidity | 0~90% RH, Non-Condensing |
| Power type | 2.5mm Power Jack |
| Power Adapter | DC 5V/2A |
| Weight | 450g |
| Dimension(L×W×H) | 262 x 101 x 45 mm |
| DDC Emulation | A.S.R |
| Safety / Emission | FCC, CE |
