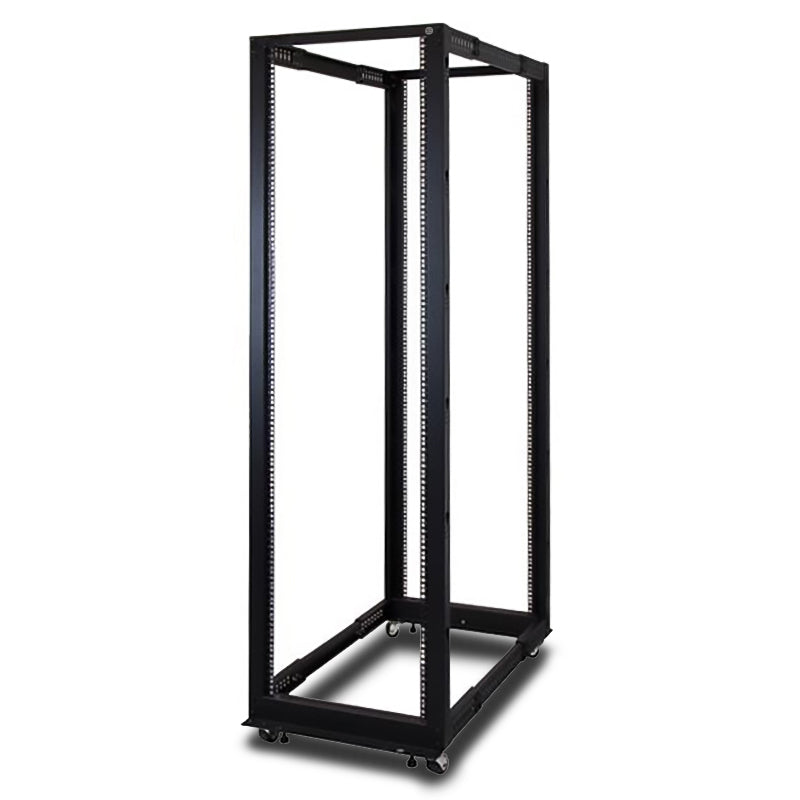

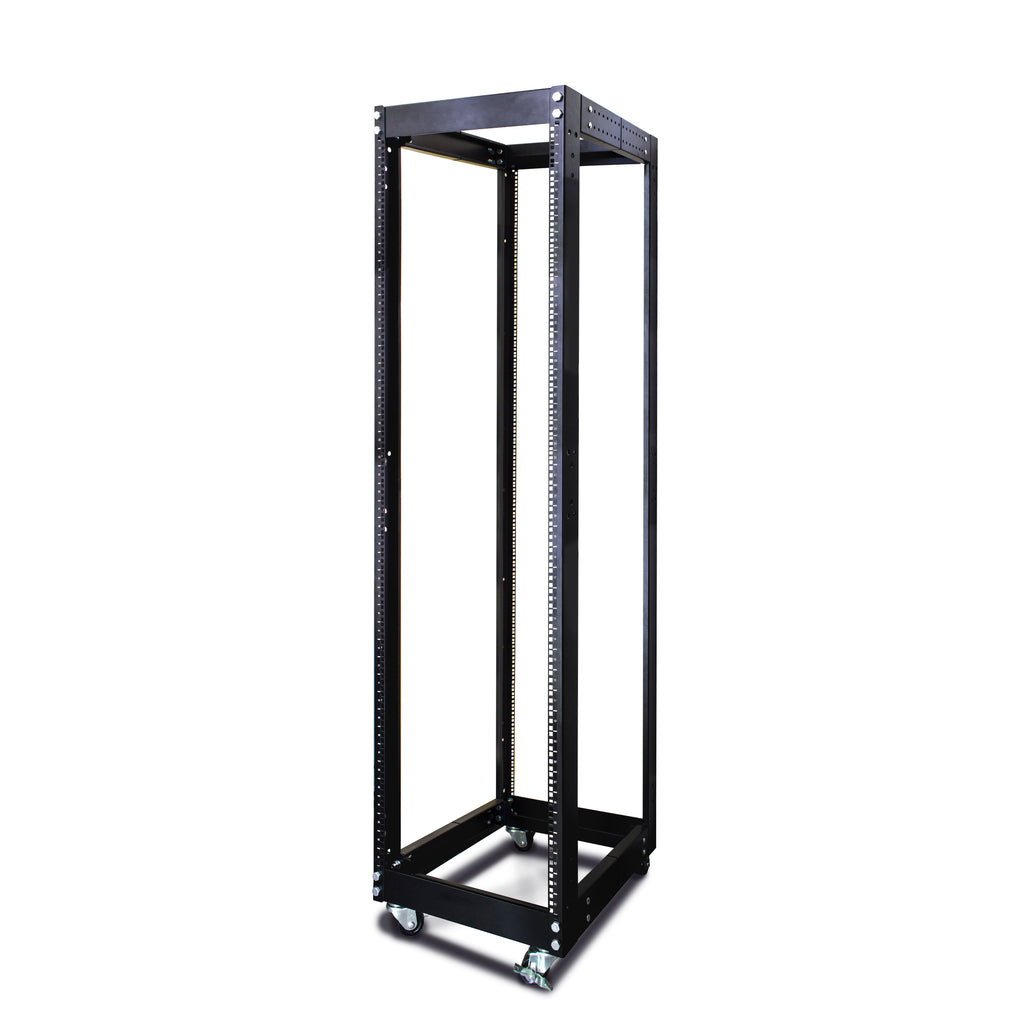

The Serveredge CBN-4P-42RU Open Frame 4 Post Server Rack is a perfect solution for securely storing your standard rack mount equipment in a sturdy, adjustable depth open-frame rack.
With features such as easy-to-read markings for both rack units (RU) and depth and a wide range of mounting depth adjustments (560-1020mm), this server rack is designed with ease of use in mind, making it easy to adapt the rack to fit your equipment.
It has a static loading capacity of up to 600kg. It is also compliant with industry rack standards (EIA/ECA-310, IEC 60297, DIN 41494), signifying its compatibility with most rack equipment.
PRODUCT FEATURE
* Adjustable mounting depth from 560-1020mm
* Supports a static loading capacity of 600kg

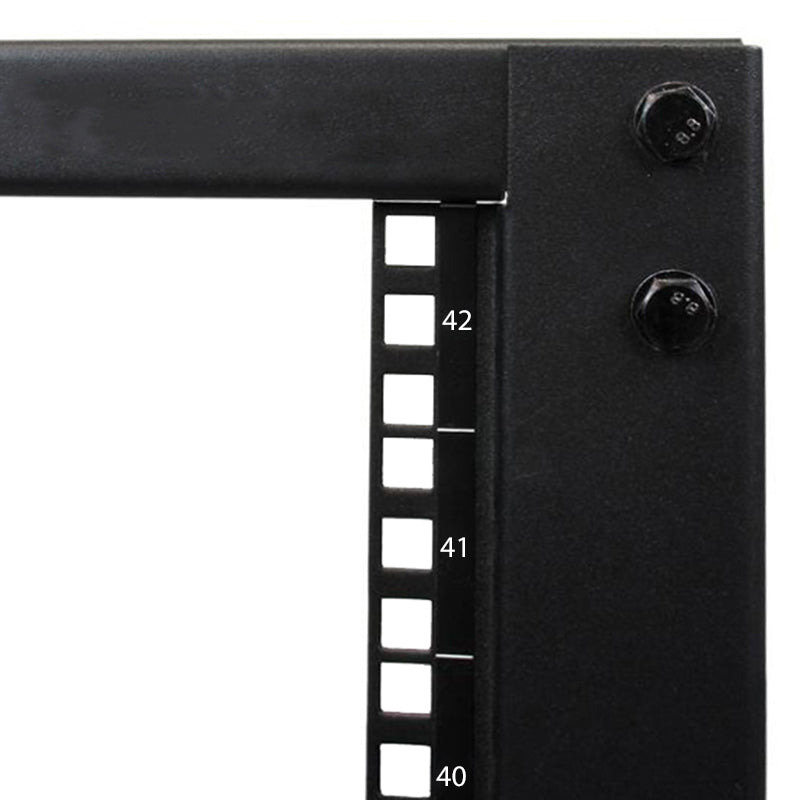

* Easy-to-read rack Unit (U) and depth adjustment markings

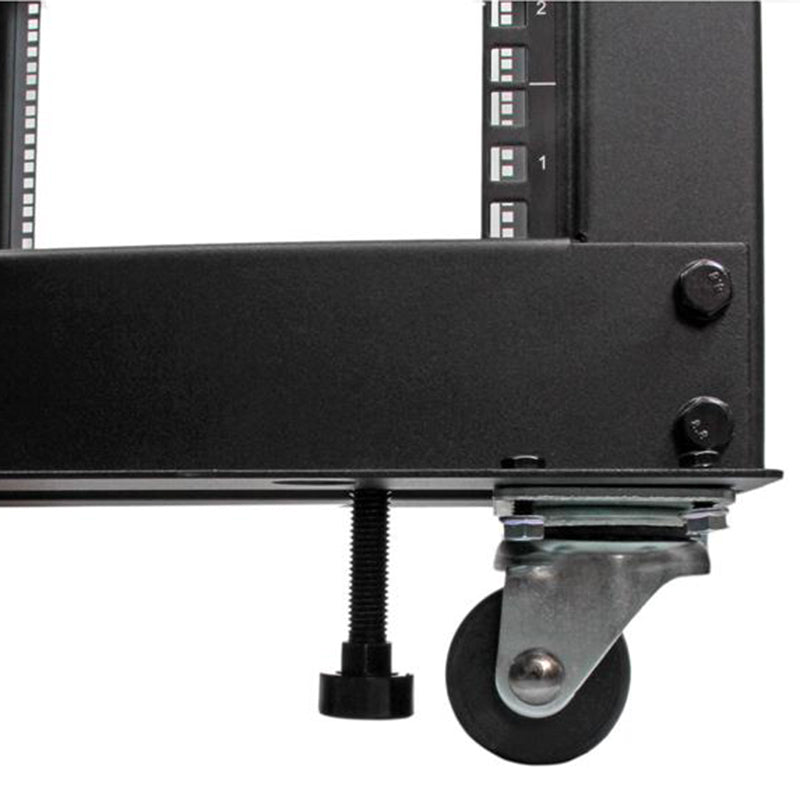

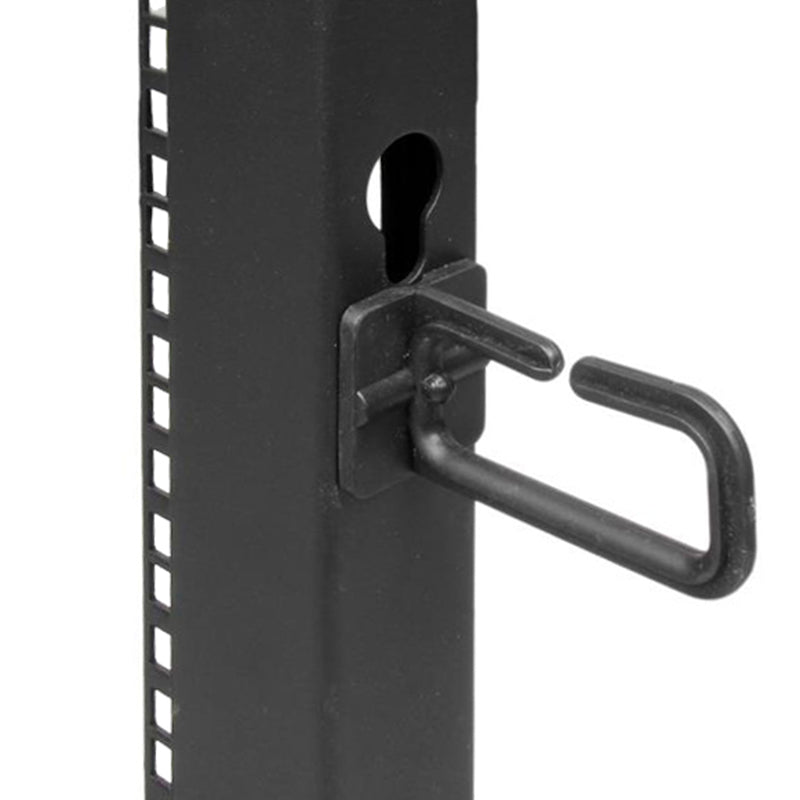

* Casters, leveling feet and cable management hooks included
* Pre-drilled holes to secure the rack directly to the floor
* Easy to assemble
* Confirm to Standard DIN 41494, EIA/ECA-310-E, IEC 60297-3-100
* Flat-packed for easy shipping
* Warranty : 25-years
PRODUCT SPECIFICATION
| Casters | Yes |
| Frame Type | Open Frame |
| Rack Type | 4-Post |
| RU Height | 42RU |
| Weight Capacity | 545kg |
| Colour | Black |
| Enclosure Type | Steel |
| Dimensions (H x W x D) | 2060mm x 610mm x 690-1100mm |
| Maximum Distance between Front and Rear Rack Rails | 1020mm |
| Minimum Distance between Front and Rear Rack Rails | 560mm |
| Flat Pack | Yes |
| Shipping (Package) Weight | 41 kg |
| Product Weight | 38.5 kg |
PACKAGING INCLUDES
| Left Vertical Rail | 2 |
| Right Vertical Rail | 2 |
| Base Bracket | 2 |
| Corner Section | 8 |
| Center Section | 4 |
| Top Bracket | 2 |
| M8 Bolt | 48 |
| M8 Washer | 48 |
| M8 (13mm) Wrench | 1 |
| M6 (10mm) Wrench | 1 |
| Phillips Screwdriver | 1 |
| M6 Cage Nut | 32 |
| PVC Cup Washer | 32 |
| M6 Phillips Head Screw | 32 |
| Cable Management Hook | 12 |
| Hook Mounting Screw | 12 |
| Casters | 4 |
| Leveling Feet | 4 |
| M6 Screw | 16 |
| M6 Flat Washer | 16 |
| M6 Flange Nut | 16 |
| Grounding Wires | 4 |
