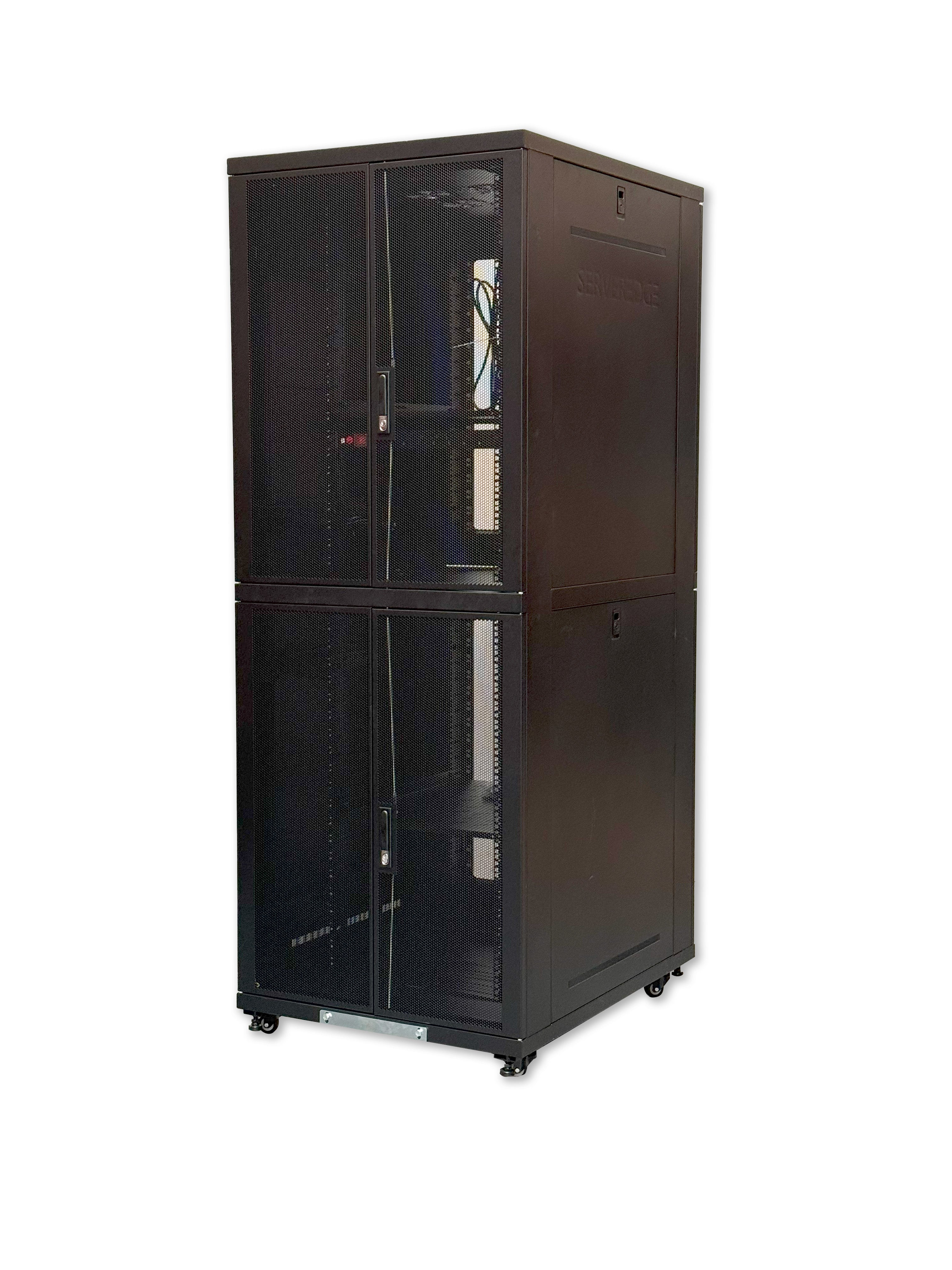

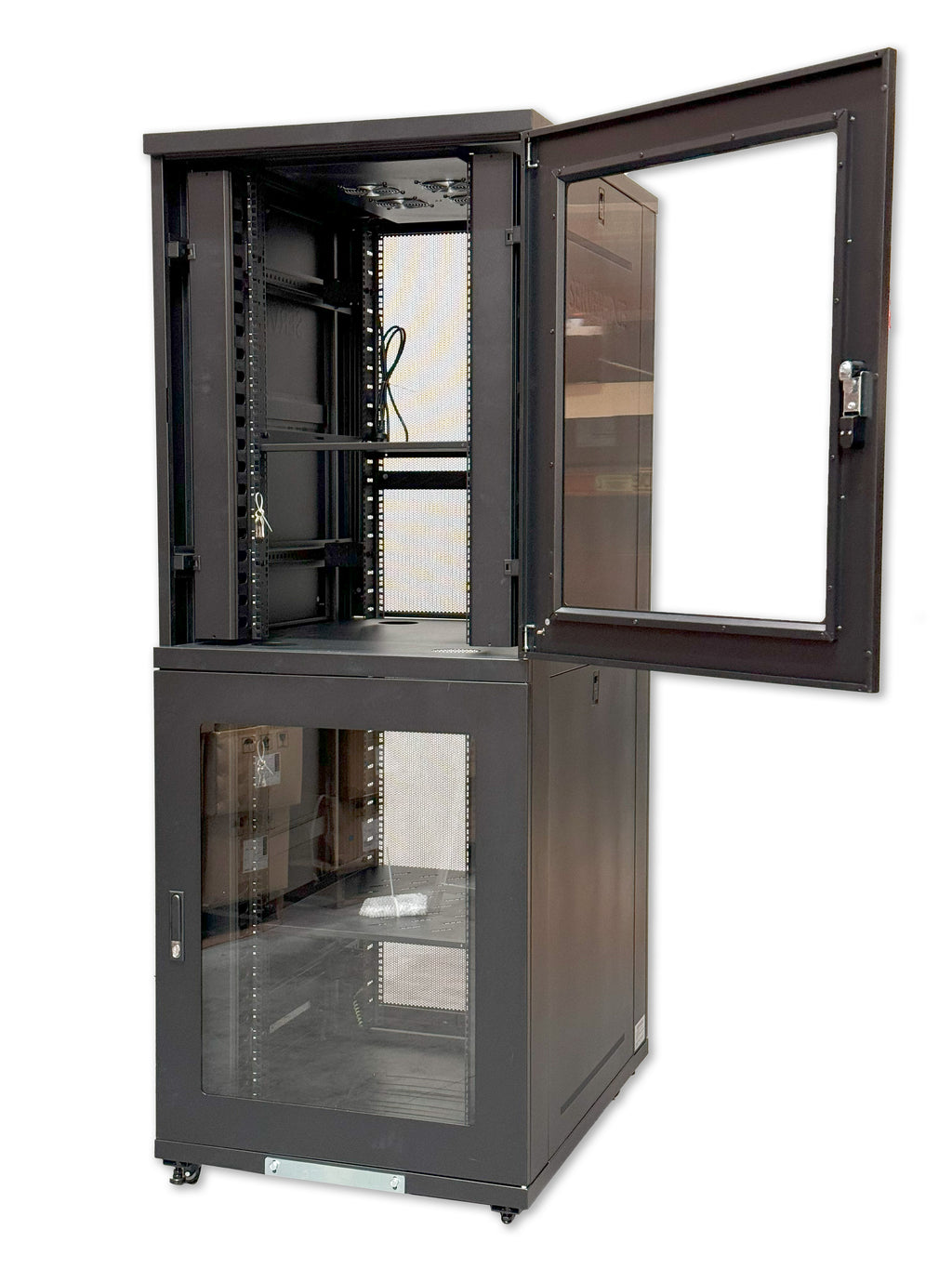

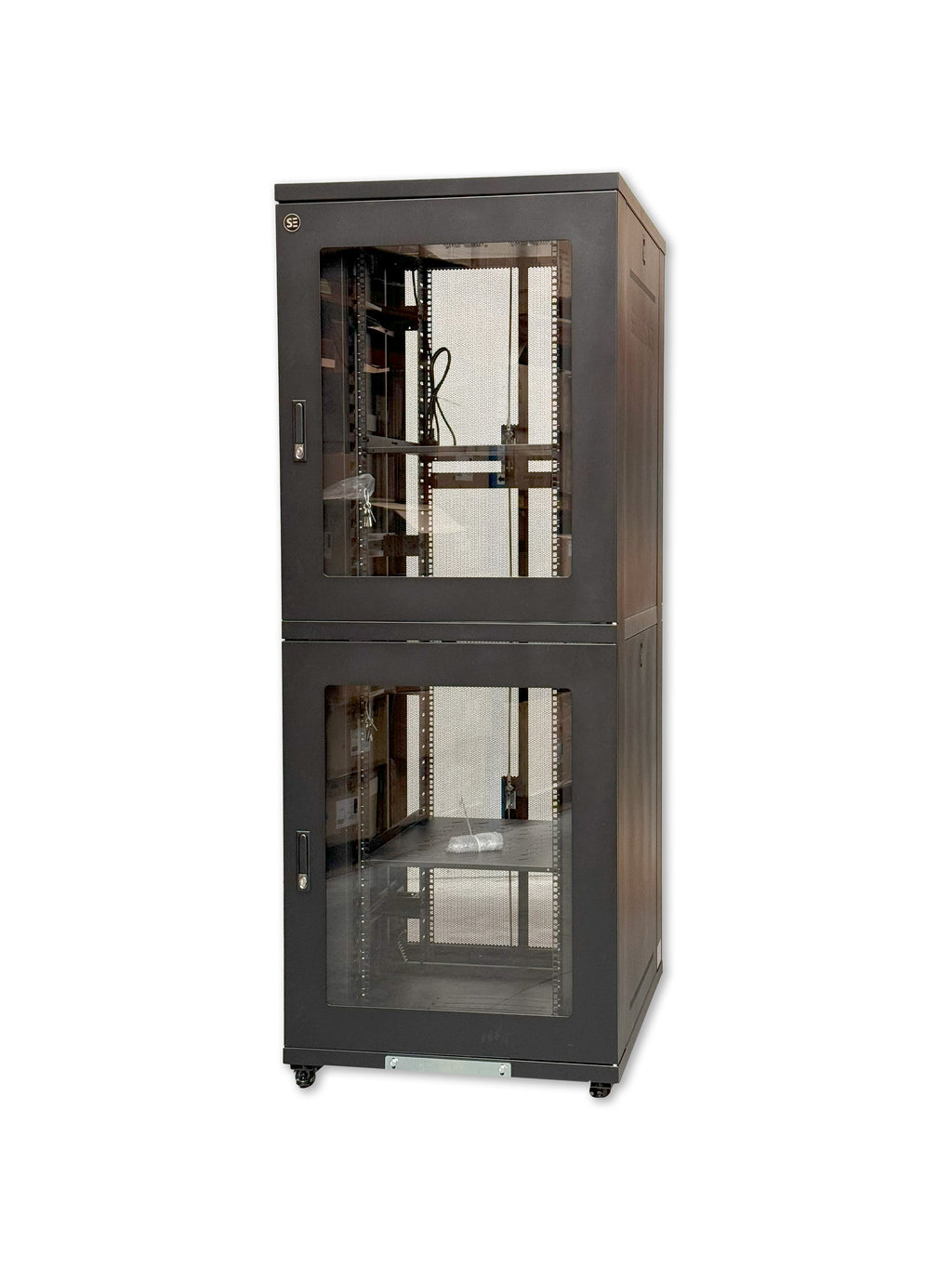

Serveredge CBN-42RU2D-812FS Co-location fully assembled server rack is a perfect solution for securely storing your standard 19inch rack mount equipment where two segrigated, secure sections are required in the one cabinet. This free-standing rack has been especially designed for use with Servers, Switches, AV Equipment, Security Systems, Telephone Systems, Patch Panels and other Networking Equipment. This Serveredge rack is packed with features designed to simplify rack equipment installations and maintenance. The server rack ships fully assembled for quick installation and comes with a 25-year manufacturer’s warranty*.
PRODUCT FEATURE
• Designed for IT, Audio Visual, Security and Data equipment
• Ships fully assembled for quick installation
• 1000kg of stationary load capacity
• Pre-installed lockable castors
• Leveling feet extend to allow enclosure to be positioned on uneven floors and are removable when not required

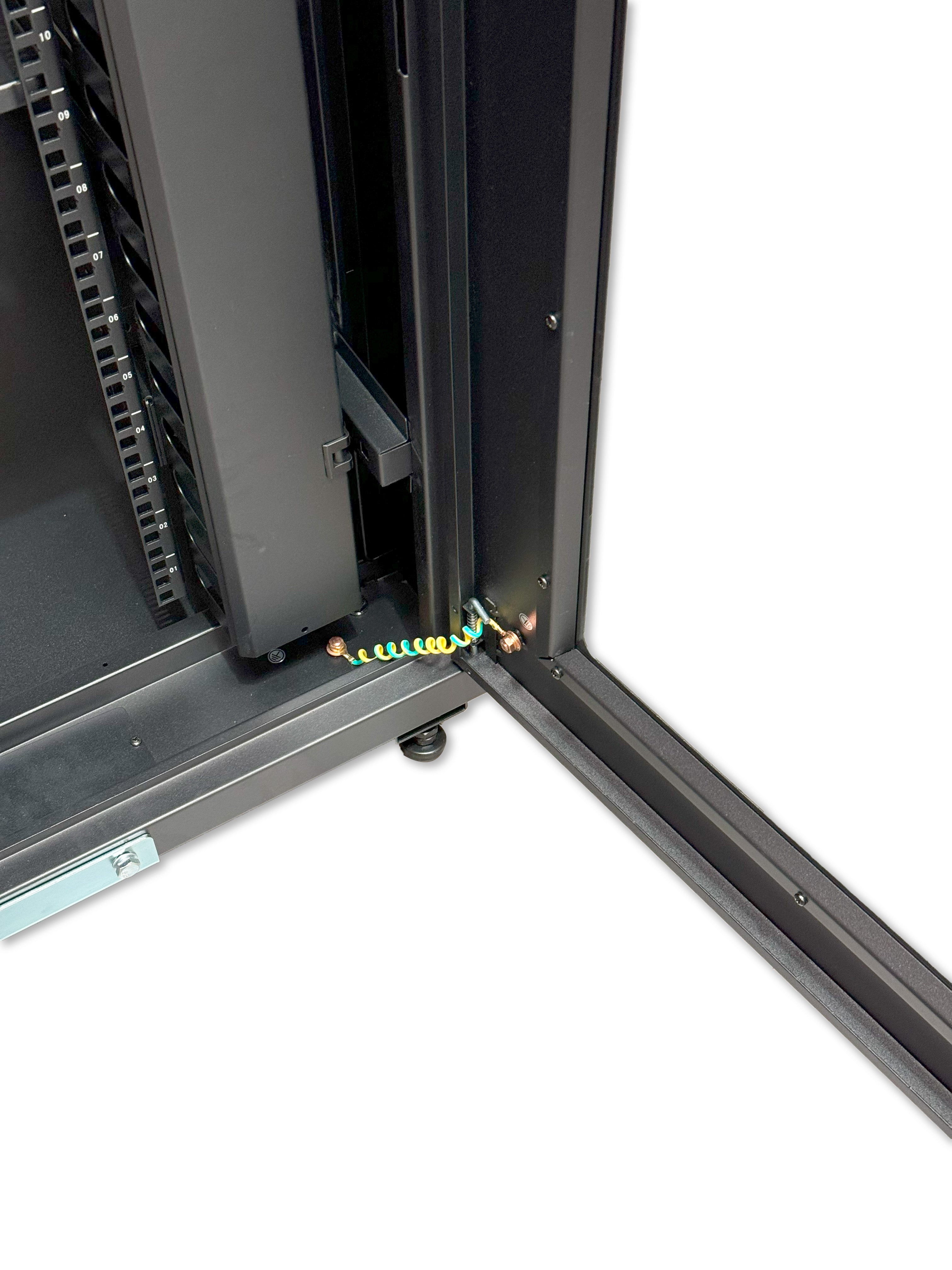

• Convenient grounding system with grounding lugs on doors and side panels
• Earth Straps on Side and Base of Server Rack
• Built in baying slots allow enclosures to be combined securely in rows (Baying kit sold separately)

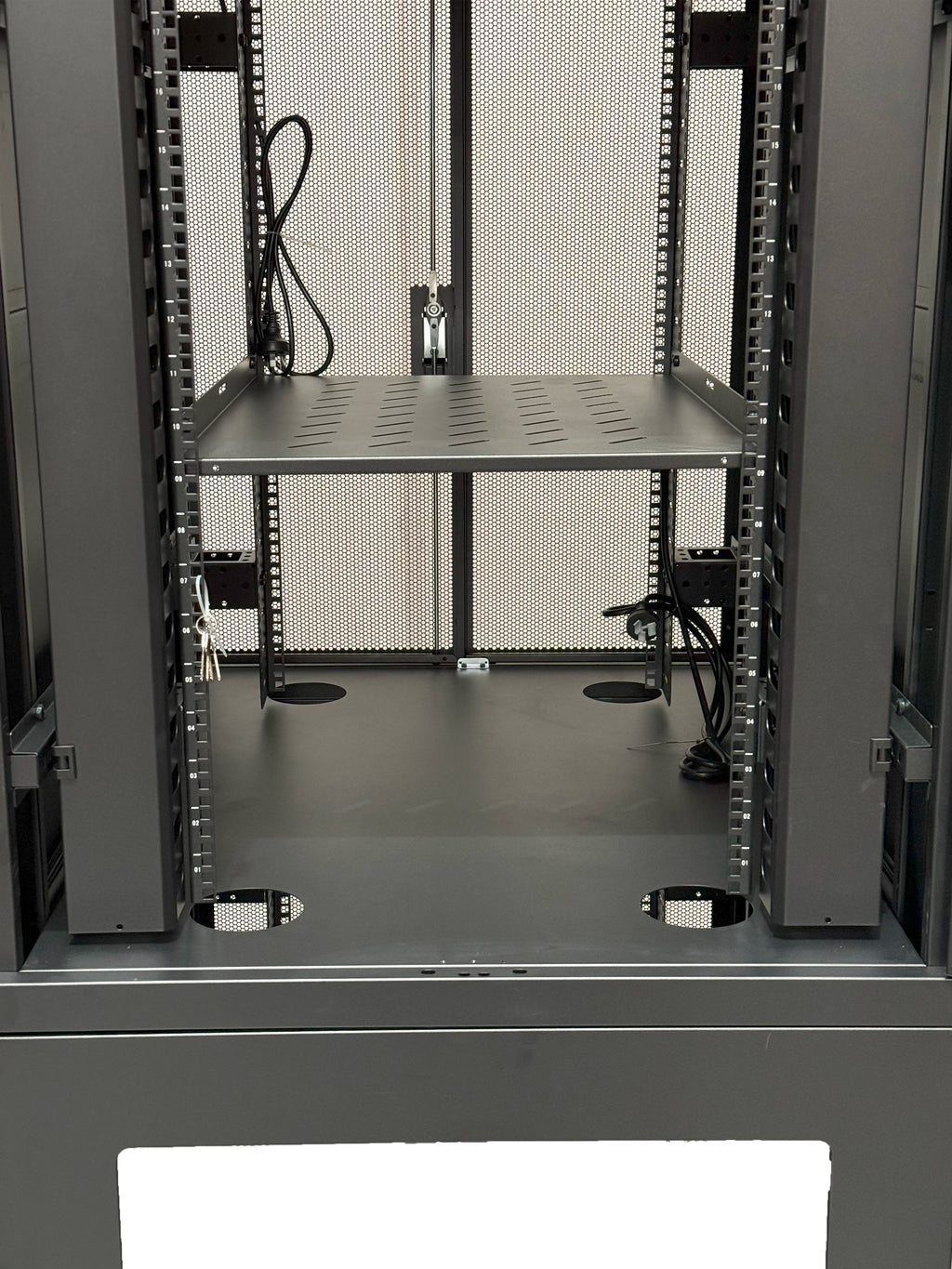

• Includes (2) fixed shelves with 700mm depth
• Locking and removable split side panels for easy access
• Conforms to Standard ANSI/EIA RS-31 -D, IEC297-2, DIN4191; PART1, DIN 4194; PAT7, GB/T3 47M 2-92* 25-year warranty*
PRODUCT SPECIFICATION
| Rack Height | 2 x 21RU 42RU Total |
| Shipping Dimensions (WDH/mm) | 850 X 1050 X 2104 |
| Shipping weight (kg) | 170 |
| Unit Dimensions (WDH/mm) | 800 X 1000 X 2147 |
| Unit weight (kg) | 160 |
| Colour | Black |
| Weight Capacity - Stationary (kg) | 1000 |
| Grounding lug | |
| Fixed Shelves depth (mm) | 700 |
PRODUCT INCLUDES
| 8 Way Horizontal PDU: (8) 3 Pin AUS GPO Output; (1) 3 Pin Aus Plug Input , 10A, 240V | × 1 |

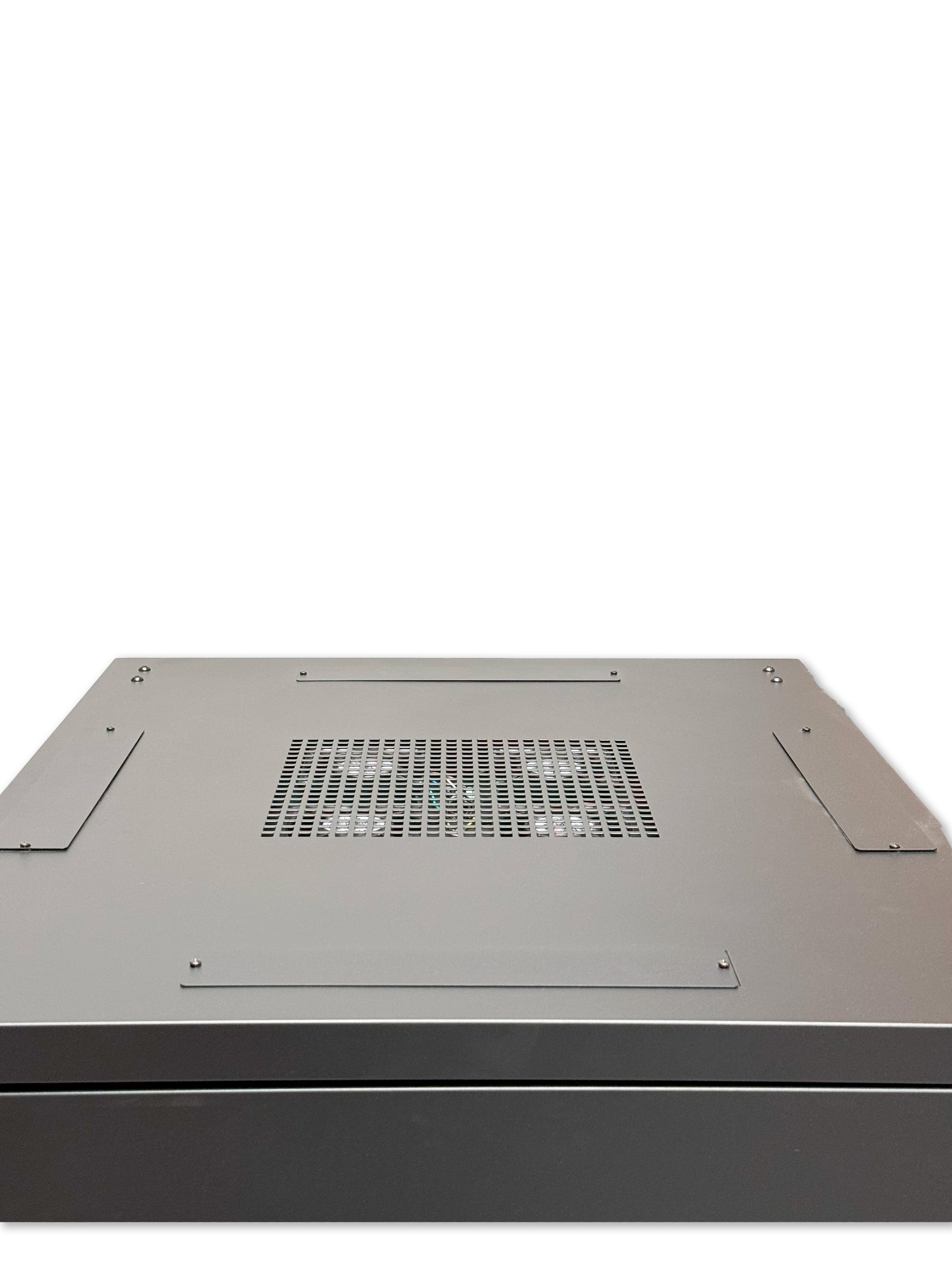

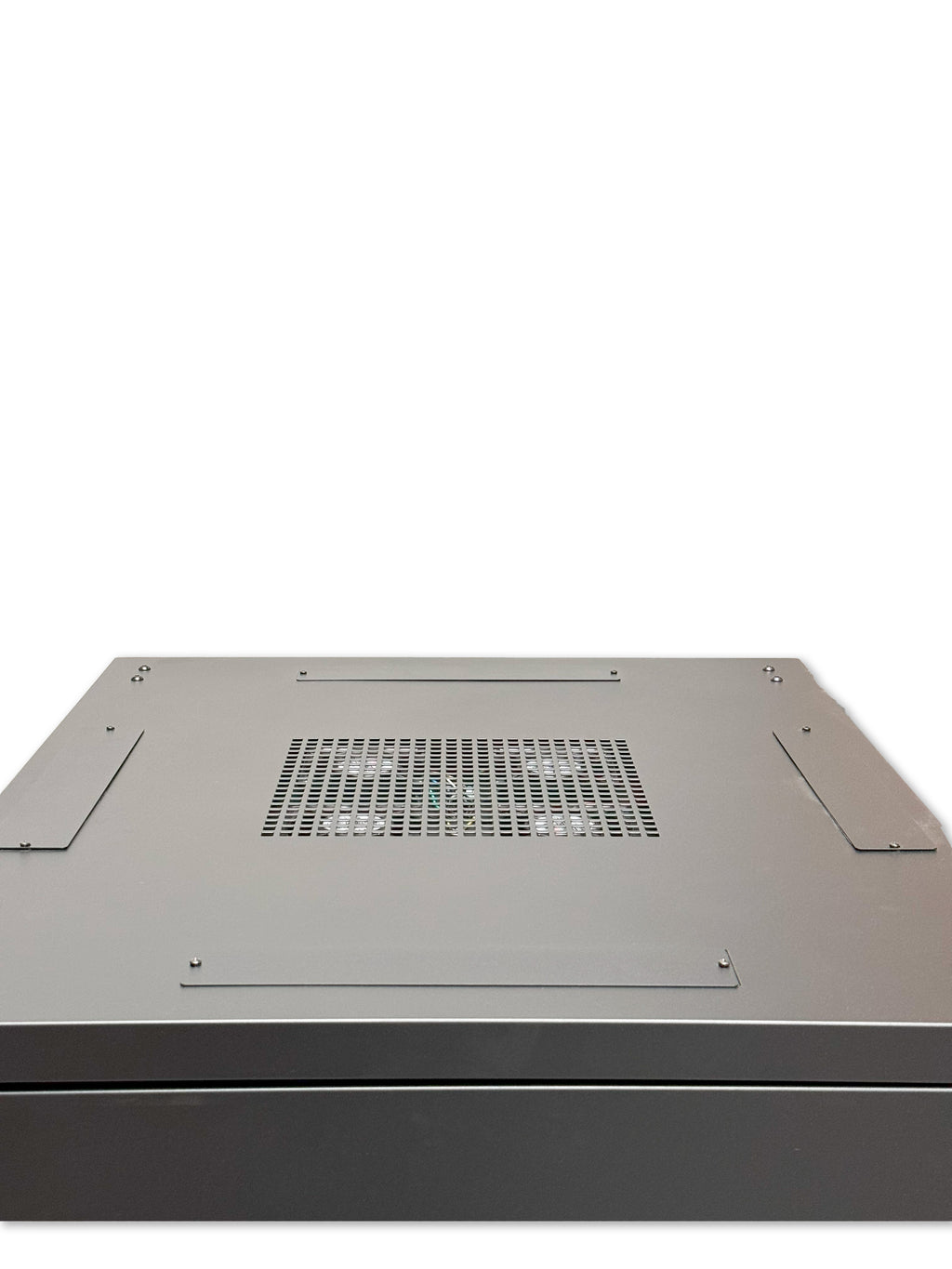

| 4 Way Roof Mount Fan | × 1 |

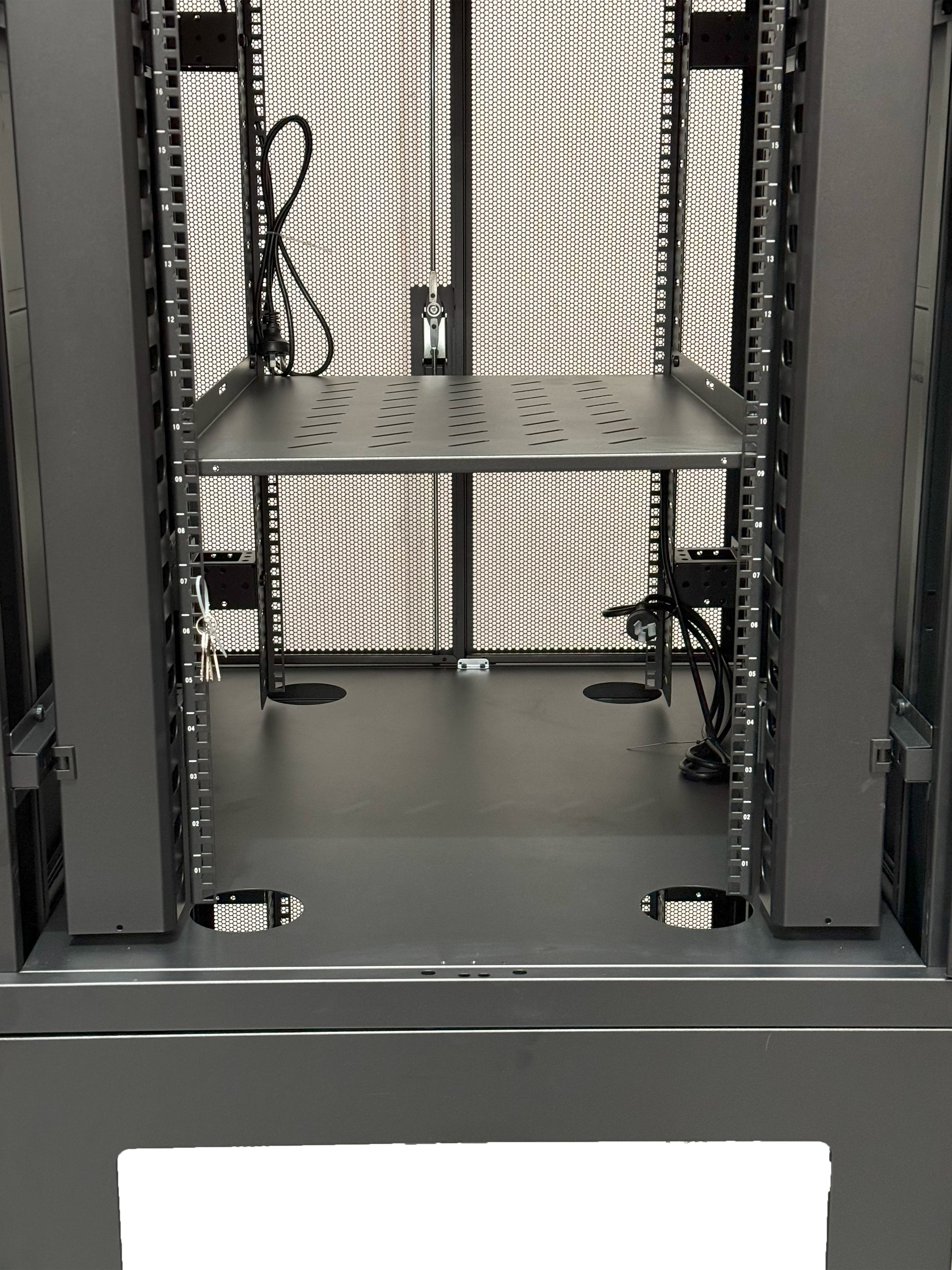

| Fixed Shelves (700mm Deep) | × 2 |

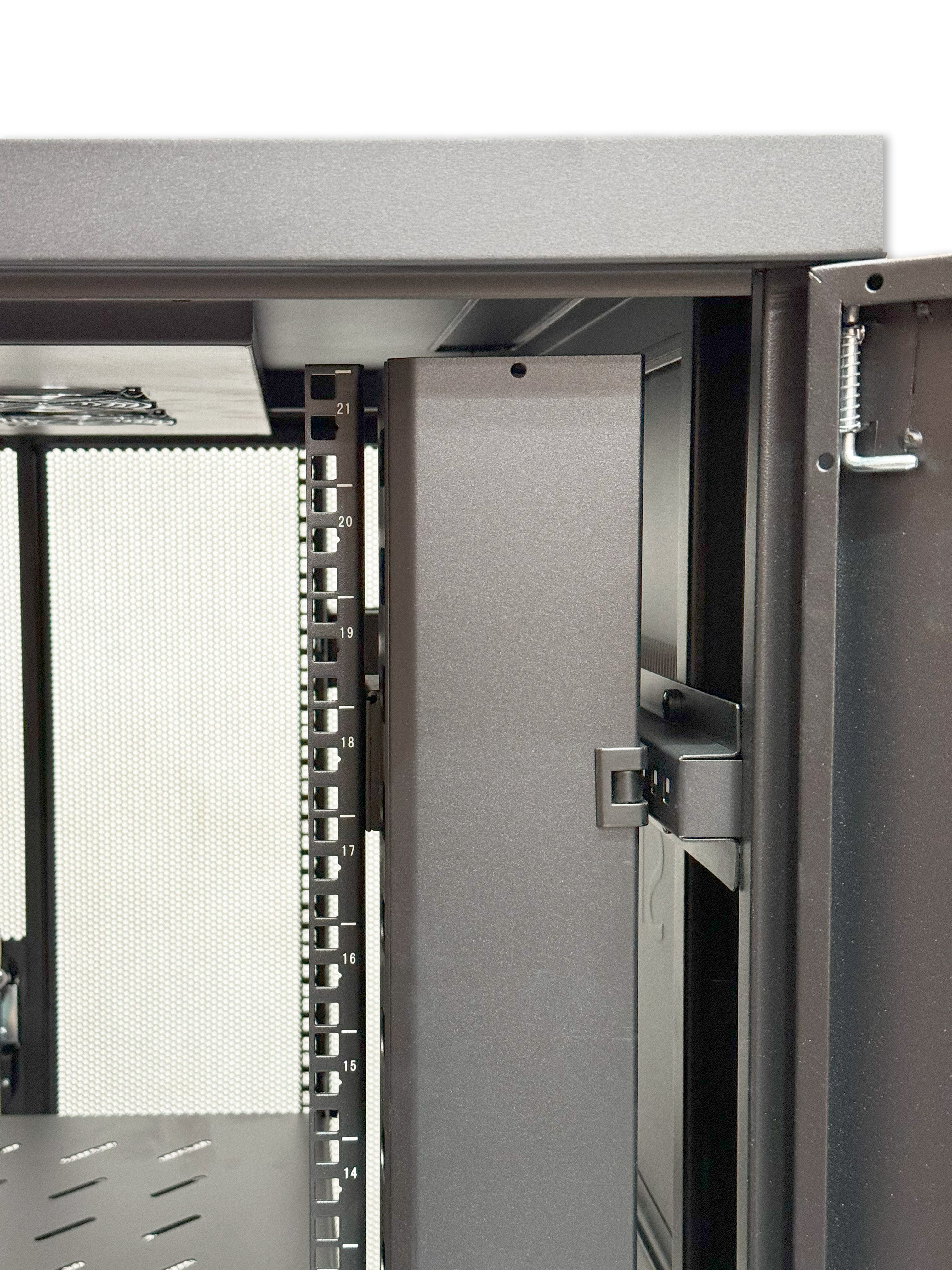

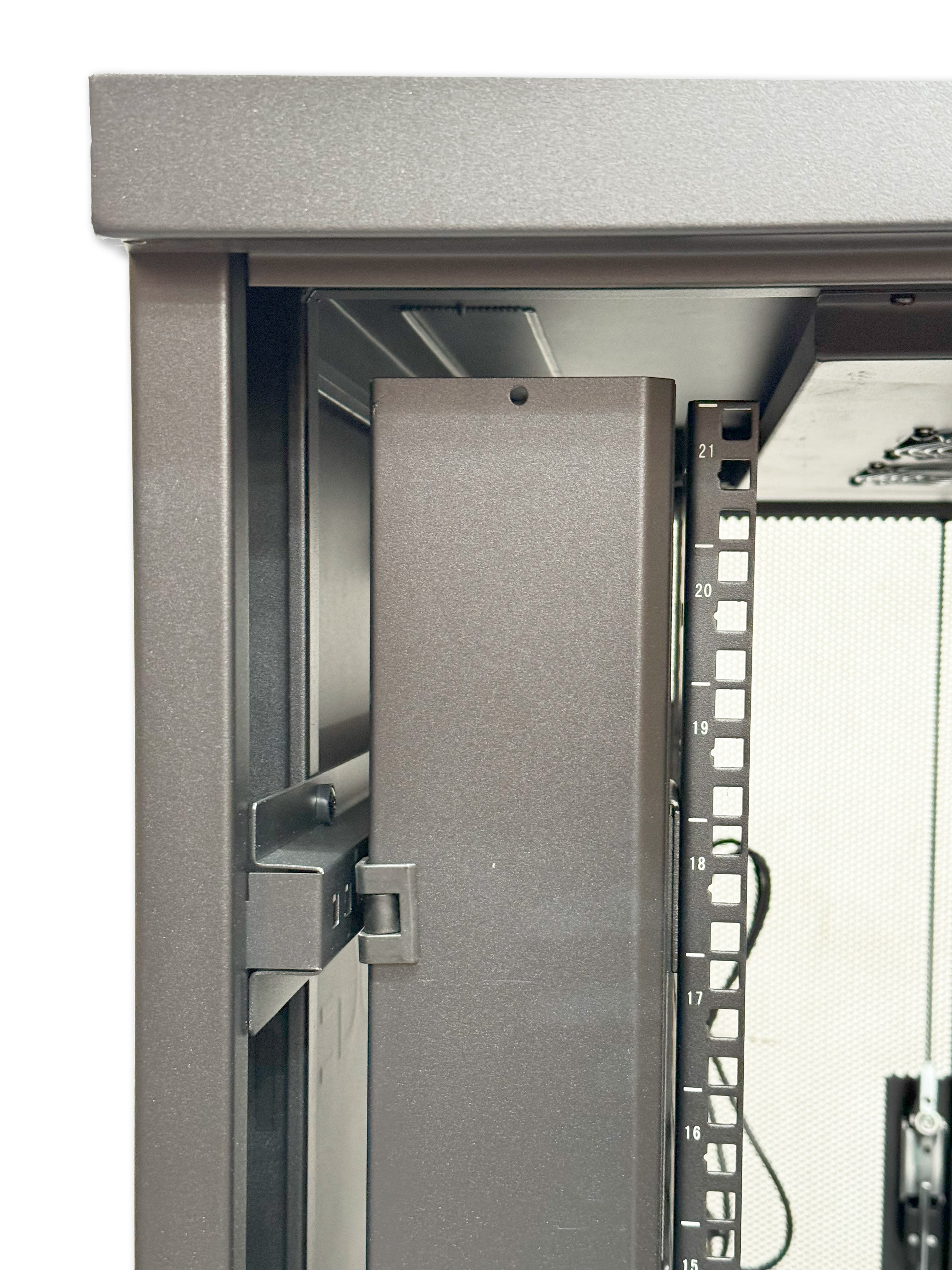

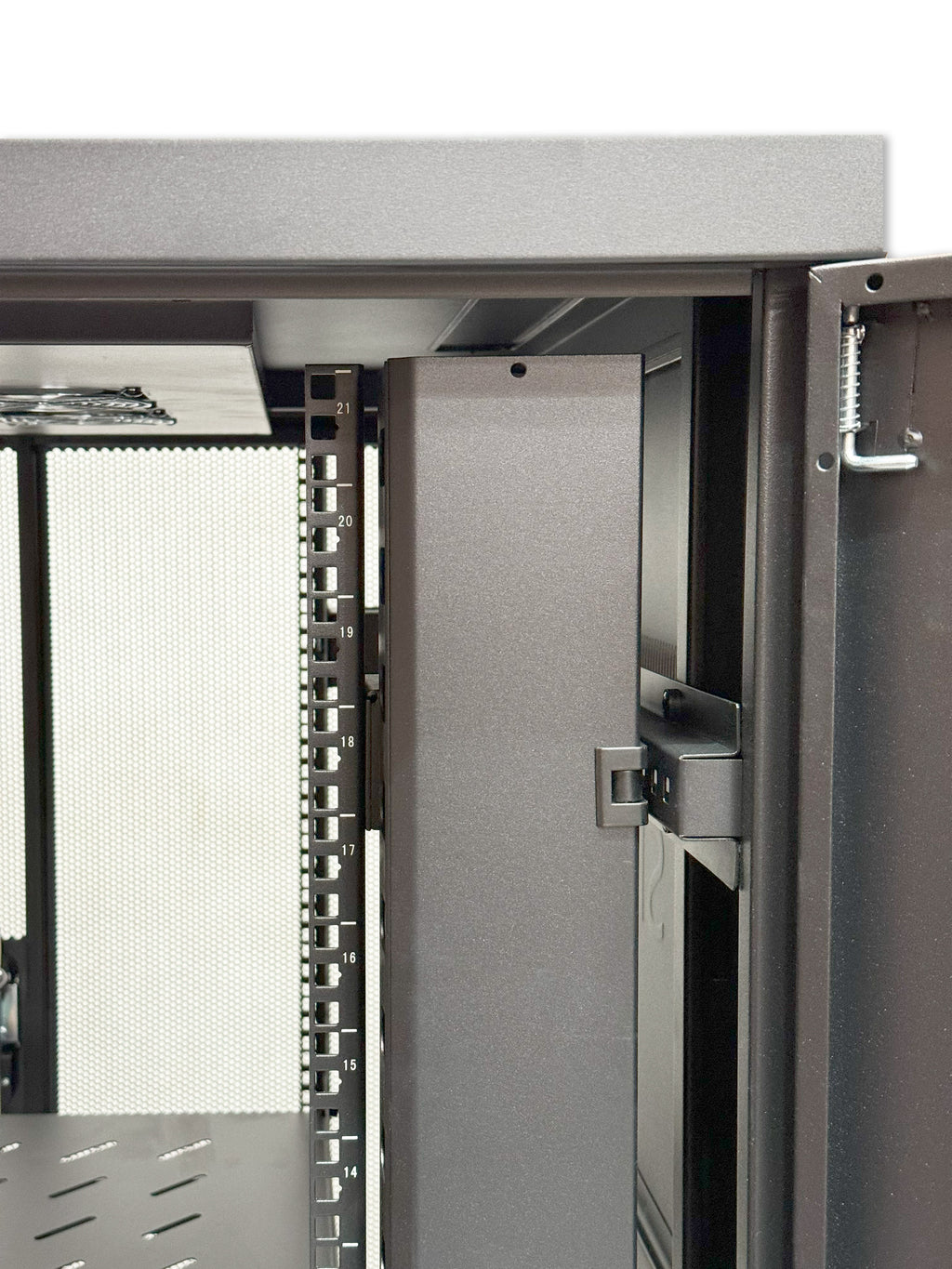

| Vertical Cable managers per rack | × 4 |
| Lockable Castors | × 4 |
| Stabilizing Feet | × 4 |
| Adjustable 19inch Mounting Rails | × 4 |
| Keys | × 2 |
| Heavy Duty M6 Cage Nuts, Washer & Screw | × 40 |

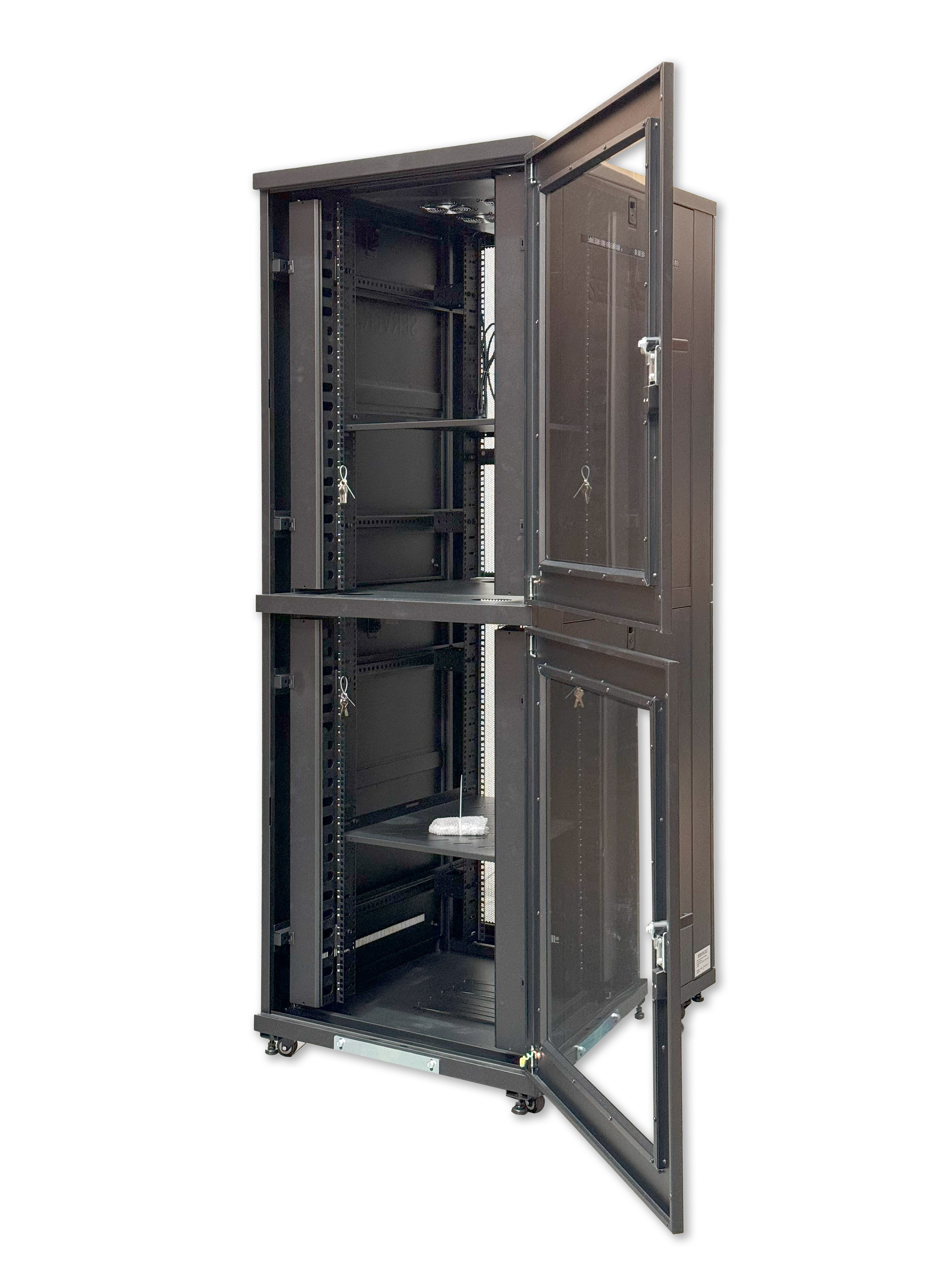

| Split 2 Way Front Glass Doors | |

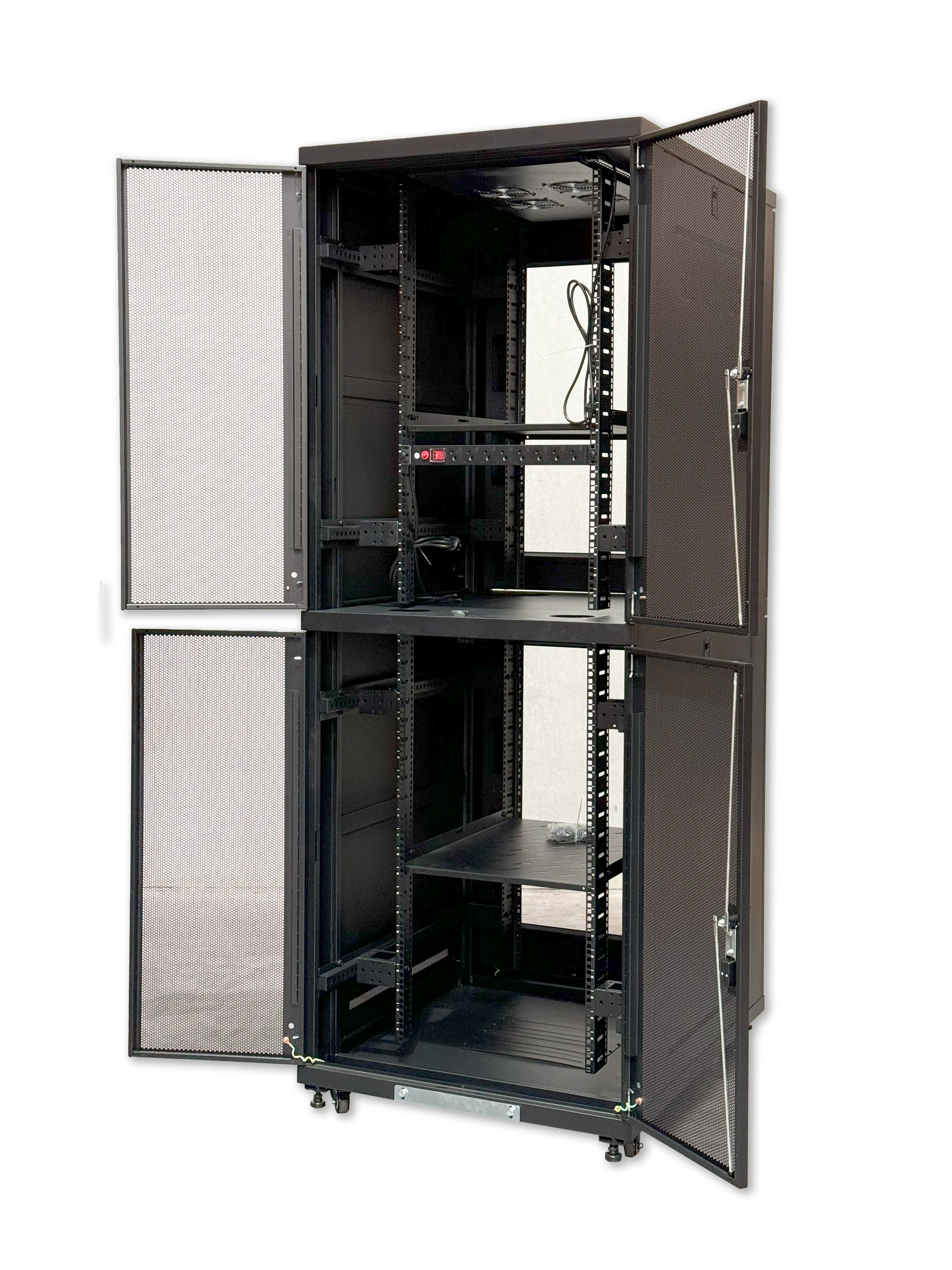

| Split 2 Way Rear Mesh Doors | |
| Split Lockable Side Panels | × 2 |
| Grounding Lugs - Front Door | |
| Earth Straps - Side and Bottom of Server Rack | |
