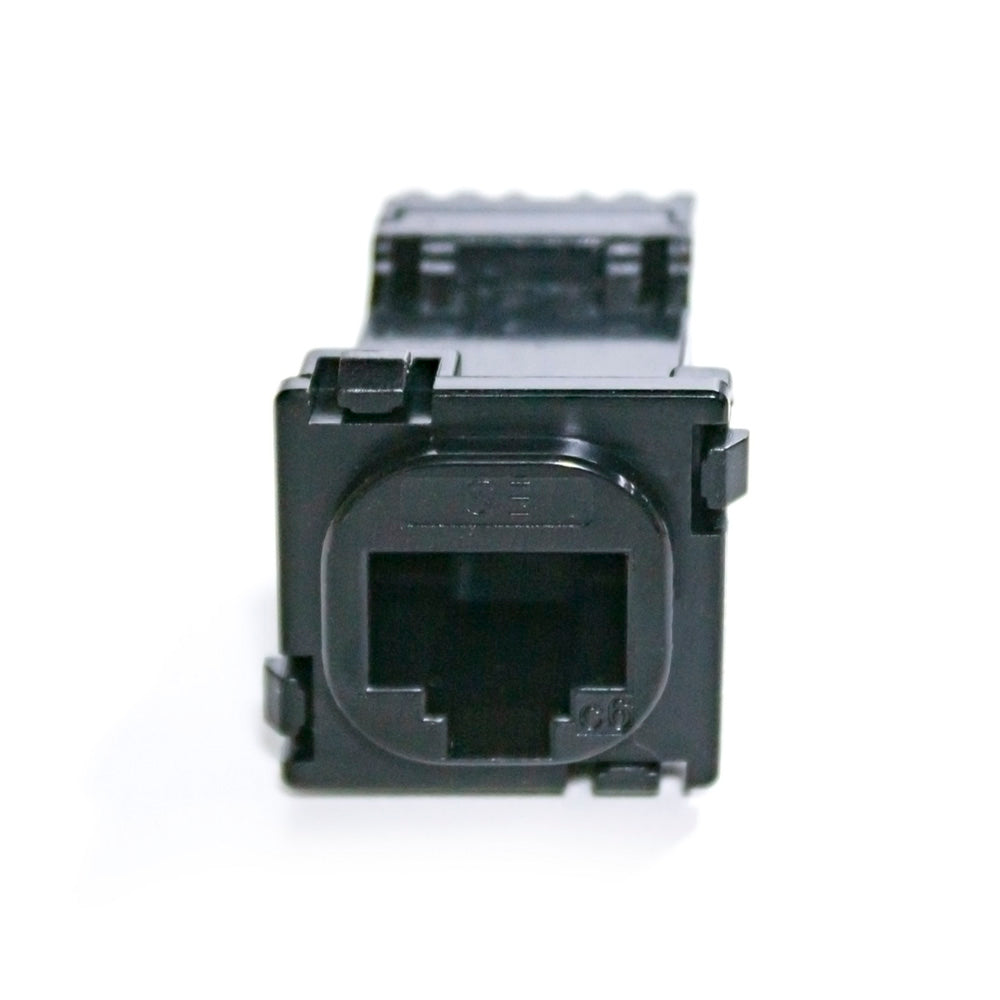

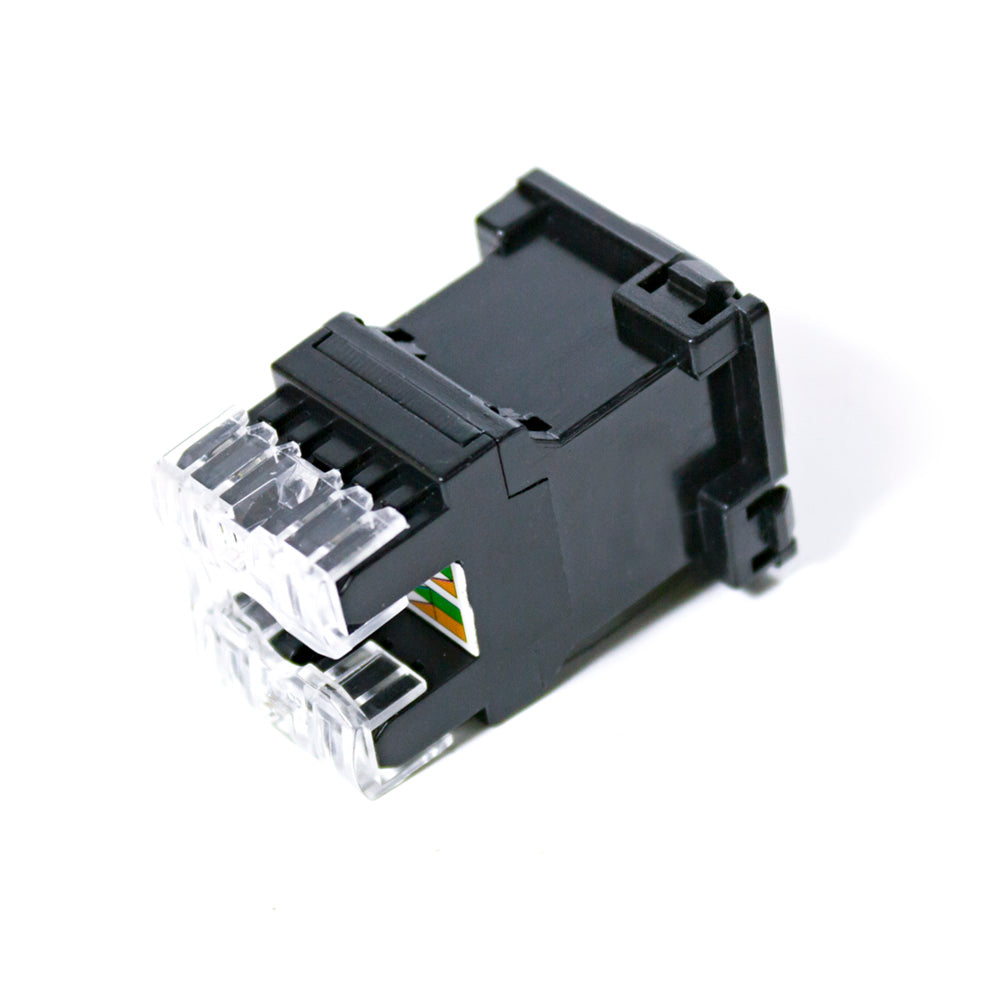

Serveredge modular keystone jacks are colour coded for both 568A and 568B standards.Wire retaining caps are supplied and can be used to provide additional cable strain relief.
PRODUCT FEATURE
* Fully compliant to ISO/IEC 11801 standard
* UL 94V-O rated
* Accepts solid 22-24 AWG diameter conductors

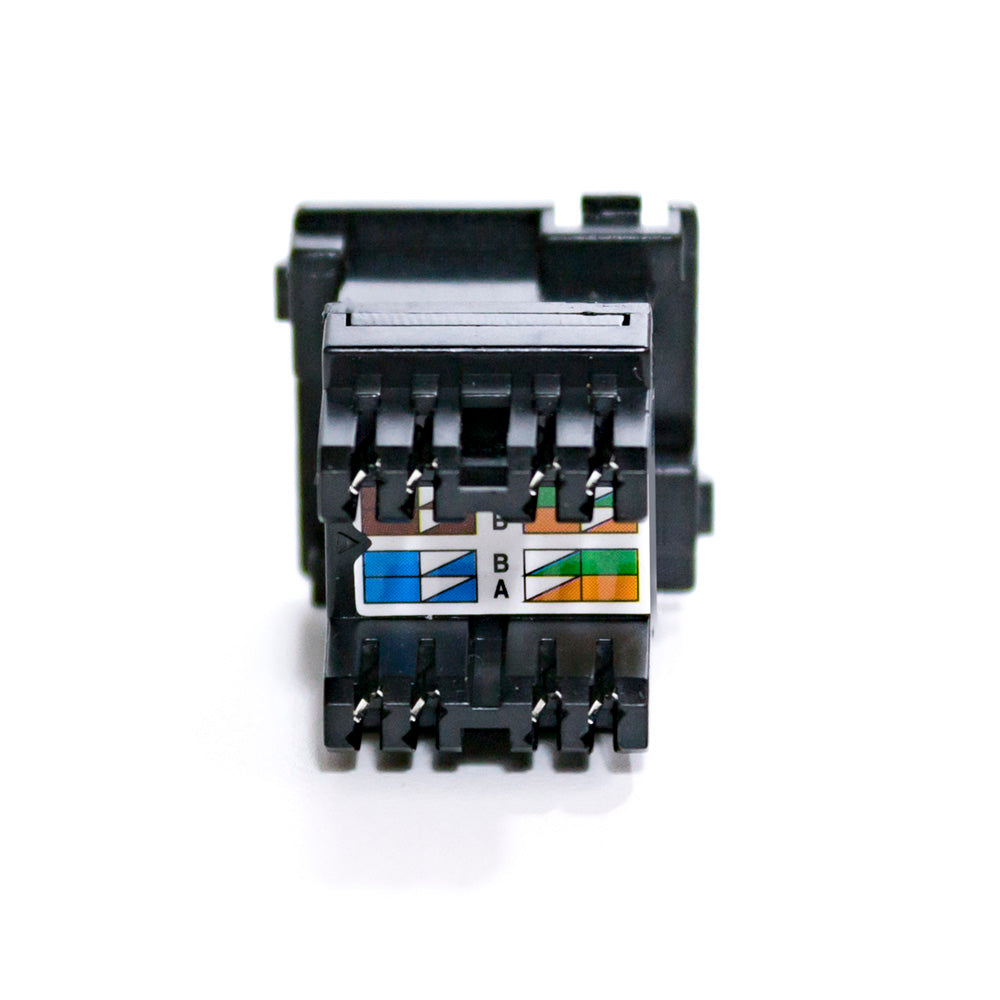

* Universal colour-coding for 568A and 568B standards
* Lead frame technology eliminates the possibility of PCB failures
PRODUCT SPECIFICATION
Color: Black
Electrical Insulation Resistance: 500 MO min. @ 100V d.c
Dielectric Withstanding Voltage:1000V d.c. or a.c. Peak Contact to Contact @ 60Hz for 1 minute
Insertion / Extraction Life: 750 Cycles Minimum IDC Wire Gauge : 22 ~ 24 AWG
Transmission Performance: Fully compliant with ISO/IEC 11801, Meet all requirements specified in connecting hardware requirement of ANSI/ TIA- 568 - C.2 Cat.6
