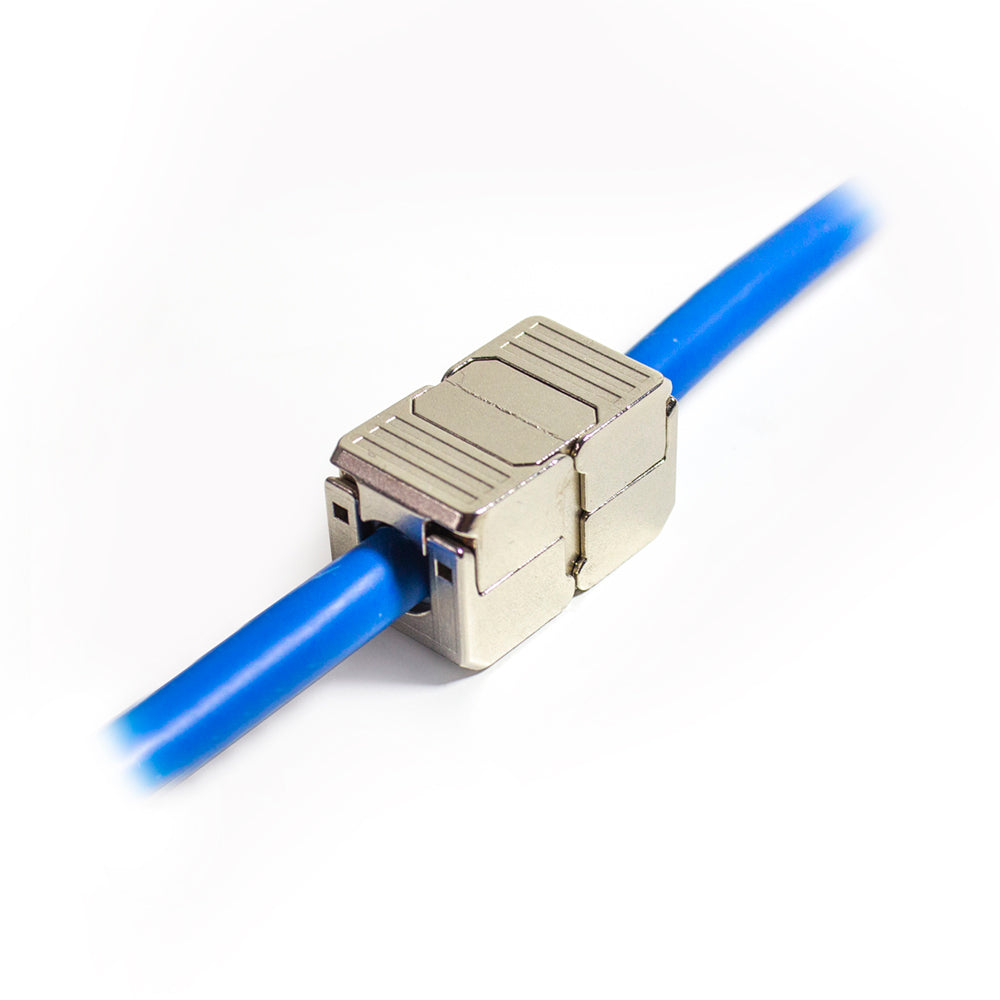

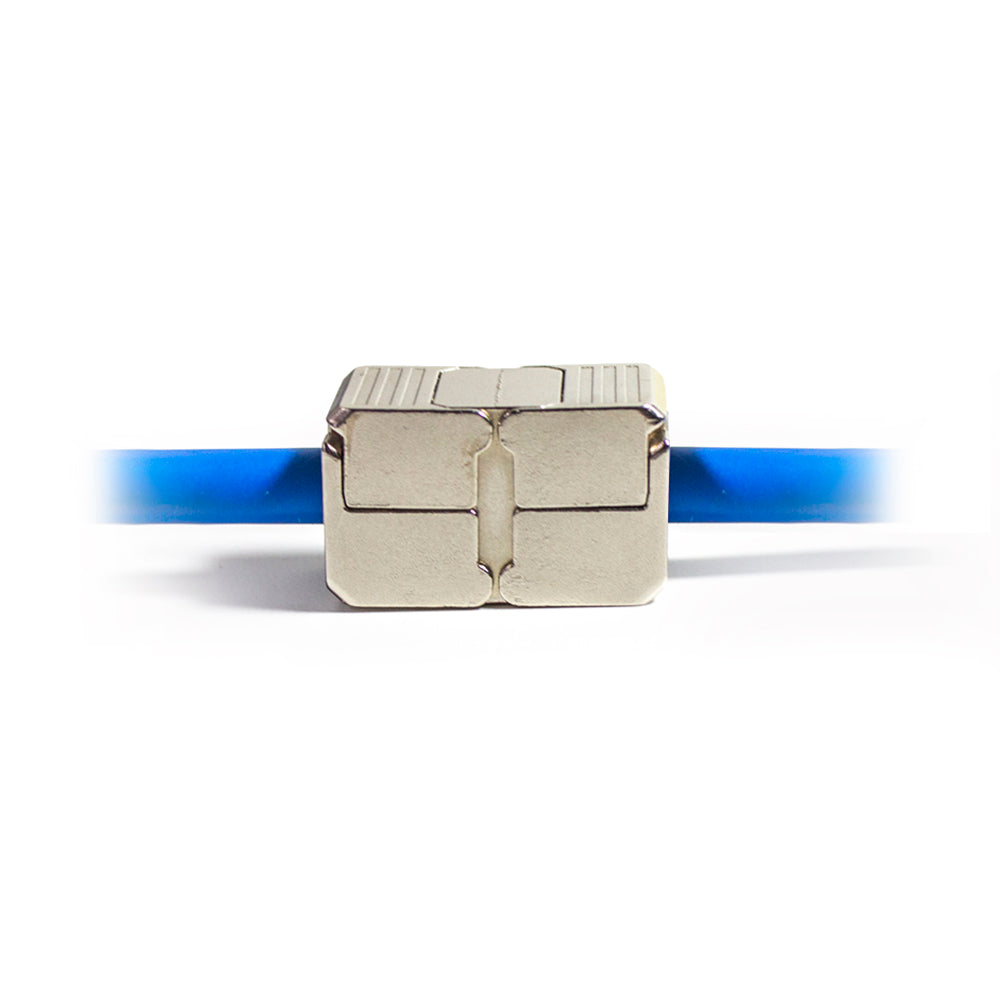

Serveredge Cat6A Shielded In-Line Coupler
Serveredge Cat6A Shielded In-Line Coupler
Serveredge Cat6A Shielded In-Line Coupler
Roll over image to zoom in Click on image to zoom
Serveredge Cat6A Shielded In-Line CouplerServeredge Cat6A Shielded In-Line CouplerServeredge Cat6A Shielded In-Line Coupler

Serveredge Cat6A Shielded In-Line Coupler

SKU: C6A-SH-TCUP

Termination-Instruction
Product Brochure
Certification
Technical Info


The Serveredge Cat6A Shielded In-Line Coupler protect critical data from EMI (electromagnetic interference) and RFI (radio frequency interference). This makes them ideal for use in health care, manufacturing, and other environments where EMI and RFI may be present.
They are designed to maximize your network performance. The fully shielded design provides minimal pair to pair cross talk and maximum immunity to noise at entire frequency range.


PRODUCT FEATURE

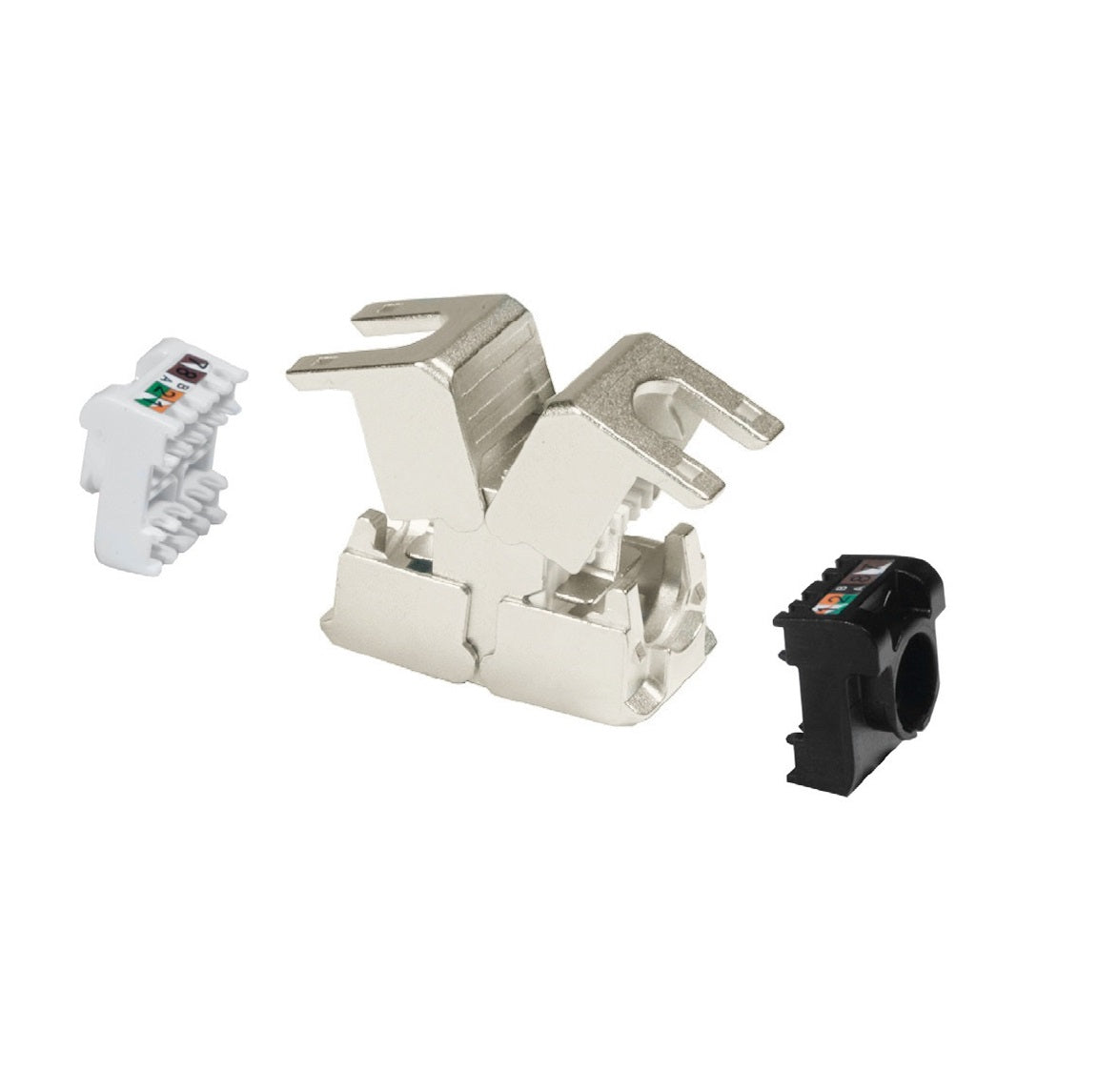

* CAT6A FTP tool less coupler

* Compatible with CAT6A connecting hardware

* For connection of installation cable with patch cable for end-to-end links for consolidation point applications

* Easy assembly without the need for special tools


PRODUCT SPECIFICATION

* UL 1863 safety listed

* Meet all requirements specified in channel requirement of ISO/IEC 11801-1, Class EA ANSI/TIA-568.2-D Category 6A

* IDC Wire Gauge 22~24 AWG

* Electrical Insulation Resistance: 500 MΩ min. @ 100V d.c.

* Dielectic Withstanding Voltage: 1000V d.c or a.c Peak

* Housing: Zinc-alloy fully shielded


YOU'RE REVIEWING: Serveredge Cat6A Shielded In-Line Coupler

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
C
Customer
C6A STP in-line coupler

I'm generally very much apposed to inline joints as they are usually substandard. However, when in a situation where you are "built out" or "snookered', I'll use them as a last resort if a new cable can't be run. That said, I was pretty blown away once I got my Fluke tester and the cable passed still having enough headroom to be compliant after fixing a break. I can recommend you keep a few of these in your kit.
