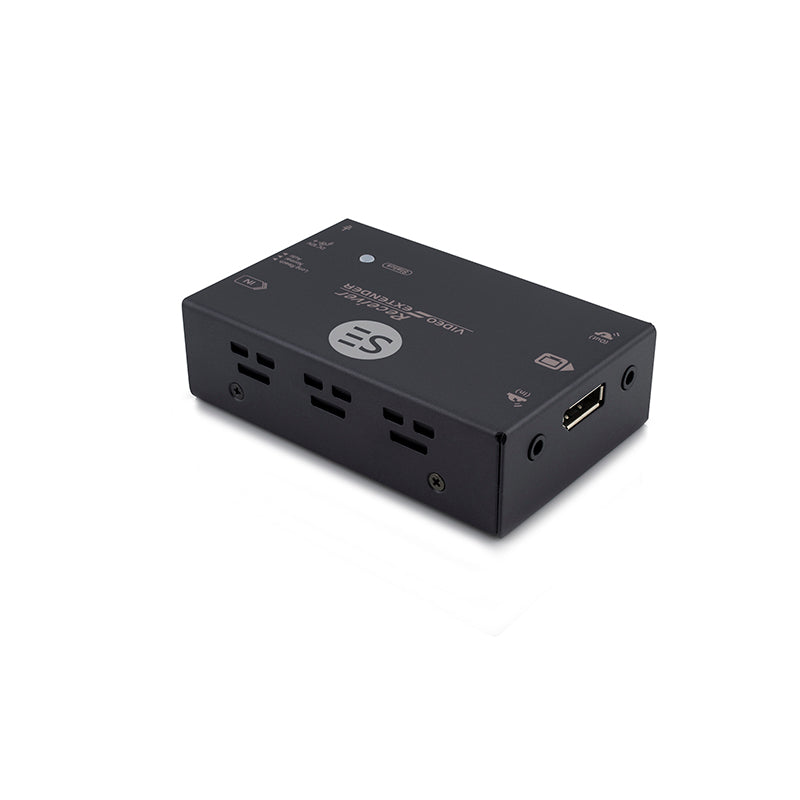

The Serveredge SEDG-DP100EXT is a DisplayPort over HDBaseT extender kit (Tx/Rx) for DisplayPort signal transmission up to 100 meters (WQXGA (2560 X 1600) resolution up to 70m) over a single CAT5e/CAT6/CAT6A cable with Bi-directional IR control capability. The kit is HDCP compliant and only needs power supply at either Transmitter or Receiver end. EDID Migration ensures the optimum video performance and supports resolutions up to WQXGA (2560 X 1600) and Full HD 1080p
Its an advanced and inexpensive all-in-one connectivity solution to minimise-cost with use of only a single CAT cable between Transmitter and Receiver. Its perfect for applications like hospitality (hotels, conference rooms), digital signage (airports, shopping malls), surveillance cameras, whole-home networking, and point-to-point consumer applications.
PRODUCT FEATURE
WQXGA (2560 X 1600) and Full HD capability
Supports WQXGA (2560 X 1600) and Full HD displays. Future proofs AV systems in preparation for technology improvements.
HDCP Compliant
Adheres to latest specification for High-bandwidth Content Protection. Allows protected content stream to pass between devices
Only Single Power Supply Required
Only requires single power supply at either transmitter or receiver endSaves time and integration costs
Extended distance DisplayPort extension
Transmits DisplayPort signals up to 100m @ 1080P over CAT5e/6/6A or WQXGA (2560 X 1600) up to 100m. Uses easy-to-integrate category cable for low-cost, reliable system installation
Bi-directional IR
Delivers WQXGA (2560 X 1600) and Full HD video, audio and Bi-directional IR over a single cable. Eliminates multiple cable runs between source and display
Warranty : 2 Years
PRODUCT SPECIFICATION
Transmitter UnitSEDG-DP100EXTL |
Receiver UnitSEDG-DP100EXTR |
|
| Input → Output | DisplayPort x 1 → RJ-45 x 1 | RJ-45 x 1 → DisplayPort x 1 |
| LED (Status LED) | Multi-Colour x 1 | Multi-Colour x 1 |
| Video Resolution (max)* | WQXGA (2560 x 1600 @ 60Hz) Full HD (1920 x 1080 @ 60Hz) |
|
| Extension Distance* | WQXGA 2560 x 1600 @ 70M Full HD 1920 x 1080 @ 100M |
|
| Power Supply | DC 12V (Phantom Power) | |
| Enclosure | Metal | |
*Above video resolution and extension distance are based on a single CATx 24AWG solid cable without cascade. STP cabling is recommended for environments with high EMI or RFI. For the best performance results, using stranded cabling or other thinner cables, and coiling of excess cable lengths should be avoided.

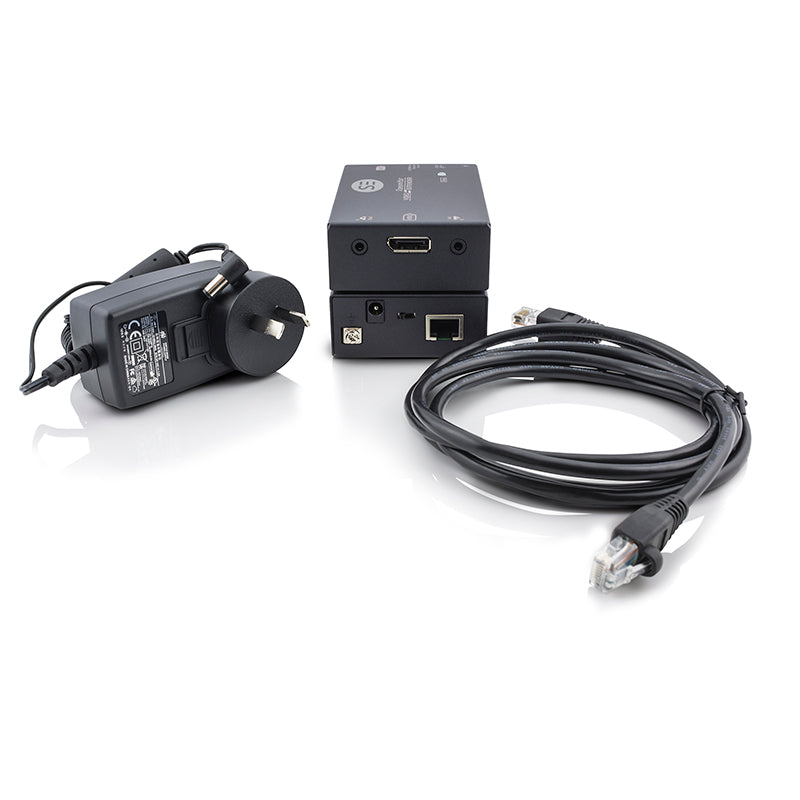

PACKAGING INCLUDES
| DisplayPort Extender Transmitter Unit | 1 |
| DisplayPort Extender Receiver Unit | 1 |
| Power Adapter Set (option: Power Adapter with necessary AC Cord/Plug-in Power Adapter) | 1 Set/Pc |
| CAT5 Cable | 1 |
| User's Manual | 1 |
| Foot Pad Set | 2 |
