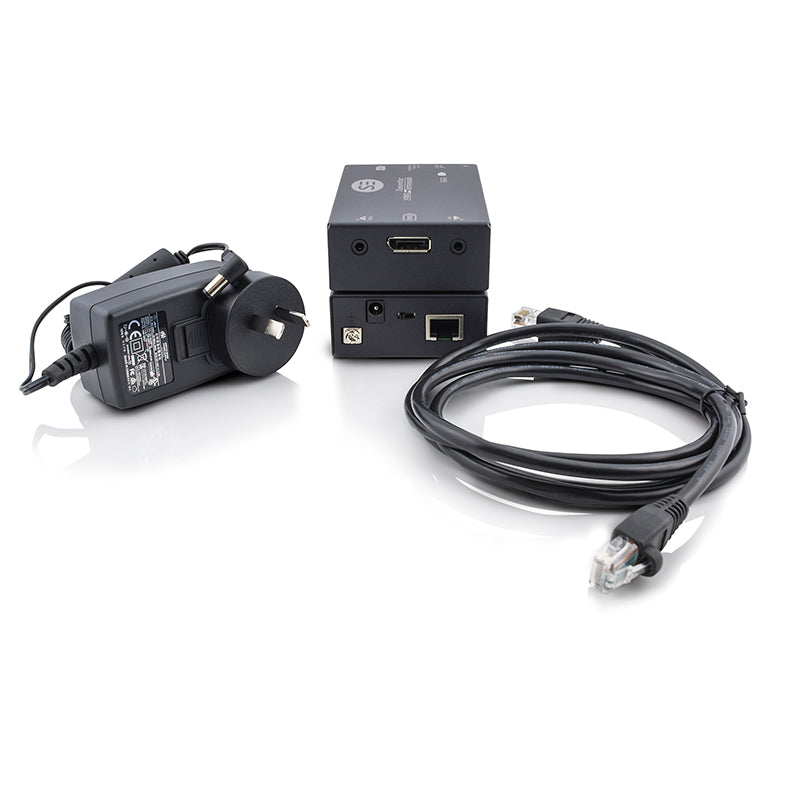

Serveredge DisplayPort Extender Kit Over Single Cat5e/6/6a with 3D - Up to 70 meters

The Serveredge DisplayPort HDBase-T Extender over CAT5e/6/6A transmits uncompressed 3D video and audio over CAT5e/6/6a cable of up to 70 meters. It supports WUXGA (2560 x 1600) resolution up to 35 meters and Full HD (1920 x 1080) to the distance of 70 meters.

This Serveredge extender is HDCP complaint and requires single Power supply at either transmitter or receiver end.

PRODUCT FEATURE

* Extend DisplayPort signal up to 70 meters
* Uses HDBaseT^TM technology
* Support Phantom Power -- single power supply at either one end of two units (Tx & Rx)
* Low cost standard CAT5e/6 LAN cable; advanced and inexpensive all-in-one connectivity technology
* HDCP compliant and Blu-ray ready
* EDID Migration ensures the optimum video performance
* 3D TV, HDTV compatible; supports most of the popular screen resolutions up to XGA, SXGA, UXGA, WSXGA... Full HD, WUXGA, WQHD and WQXGA system.
* Support resolutions up to Full HD 1080p and WQXGA (2160 x 1600)
* Compact size; easy to set up; simple to install
* Diversified and flexible video input and output selection allowing users to select HDMI or DisplayPort to the extension system
* 2-year warranty

PRODUCT SPECIFICATION

 *Above video resolution and extension distance are based on a single CATx 24AWG solid cable without cascade. STP cabling is recommended for environments with high EMI or RFI. For the best performance results, using stranded cabling or other thinner cables, and coiling of excess cable lengths should be avoided.

PACKAGING INCLUDES
