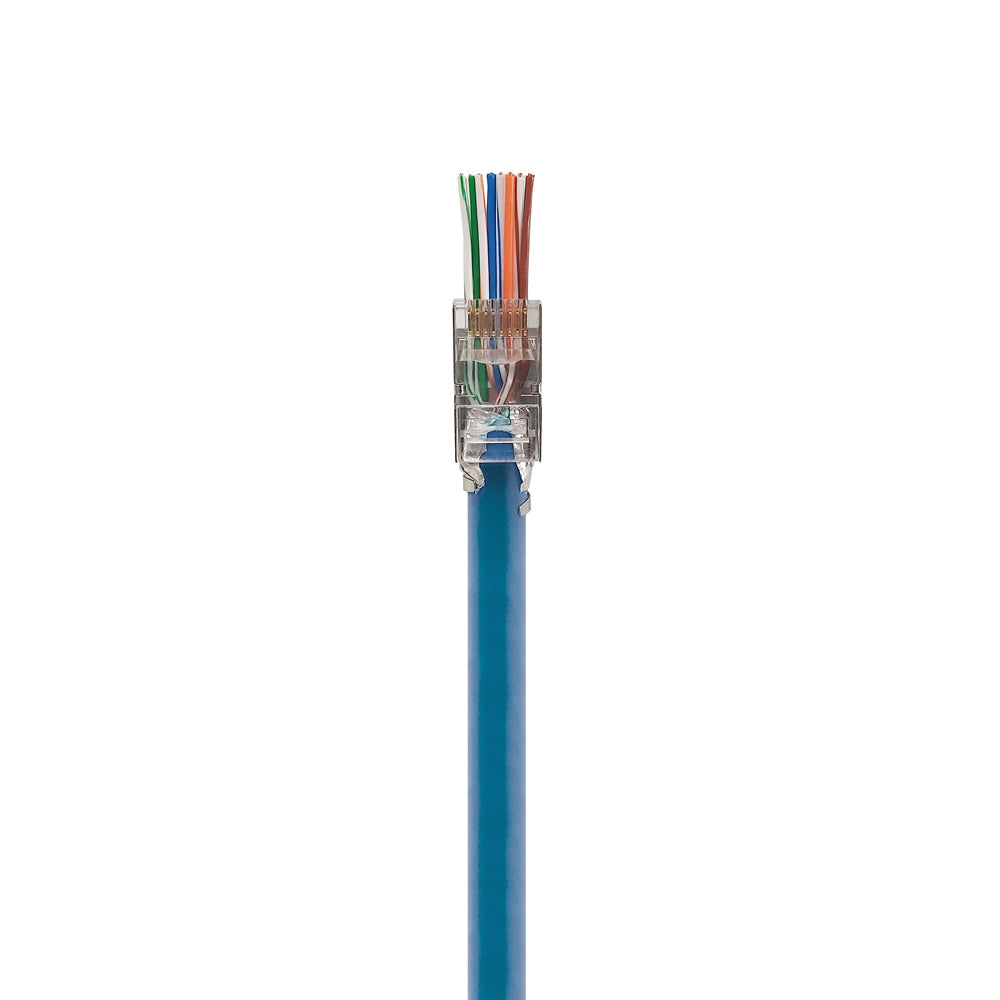

The Serveredge PT Series CAT 6 Pass Through Crimp Connector simplifies twisted pair terminations by allowing the conductors to be inserted through the plug module and out the front. This allows the technician to easily verify the correct wiring configuration. Electrical performance of the termination is optimized by pulling the connector down over the cable outer jacket and seating it tightly in the rear of the connector. By reducing the distance between the wire twists and contacts, performance is optimized!
PRODUCT FEATURE
* CAT 6A UTP PT Series plug
* Compatible with CAT 6A component performance
* A fast and reliable termination helps save labor costs and installation time
* Compatible with both solid and stranded copper cable
APPLICATION
* For Ethernet Serveredge CAT 6A F/UTP & CAT 6A UTP
* Provides either T568A or T568B wiring configuration
* ANSI / TIA CAT 6A
* Compatible with cable dimensions from 22-23 AWG
STANDARDS
* UL 1863 safety listed
* Meets all CAT 6 specified requirments for ISO / IEC 11801-1
