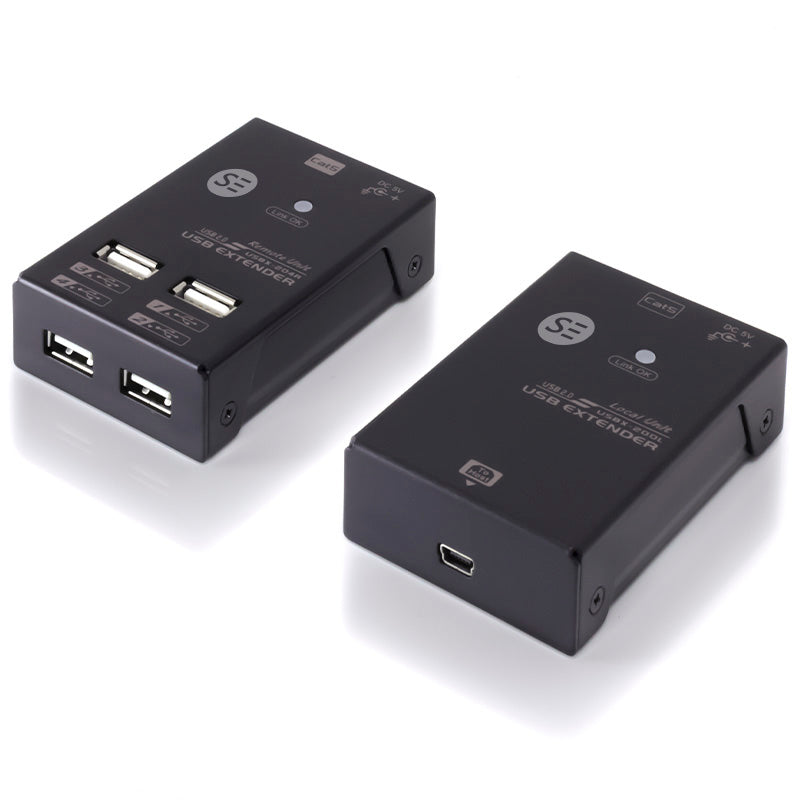

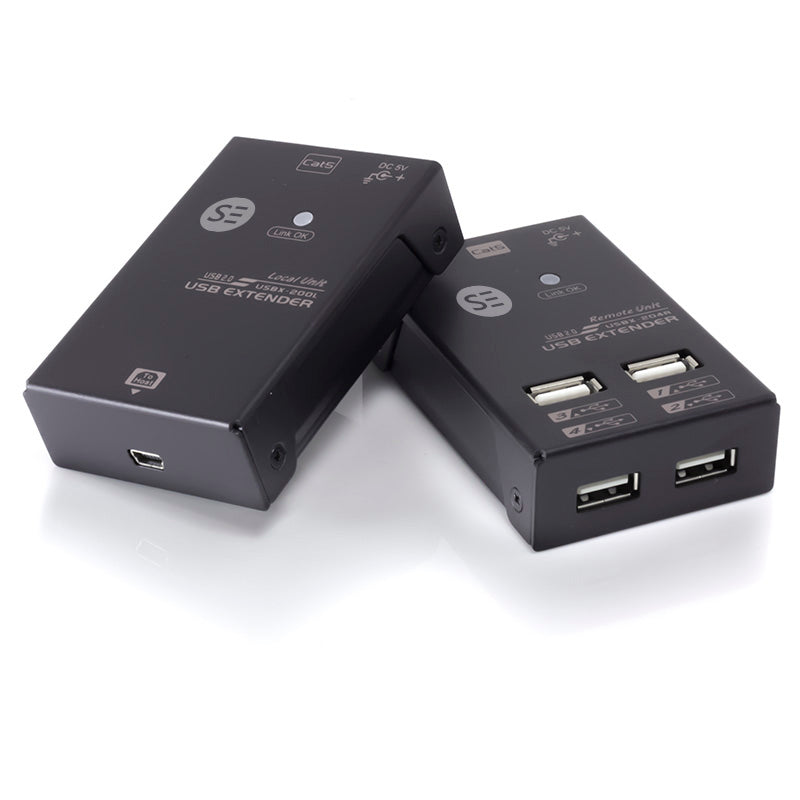

The Serveredge SE50UEX4P is the 4 Port USB 2.0 Extender over Single Cat.5e/6, which allows users to extend 4 USB signal up to 70 meters over a single Cat.5e/6 Ethernet cable. With expandable devices demanded that the SE50UEX4P supports maximum 8 USB devices by connecting with USB Hub, and comply with USB 2.0 or 1.1 devices: keyboard, mouse, flash drive, hard drive…etc.
PRODUCT FEATURE
* Supports USB 2.0 high-speed and USB 1.1 (low-speed, full speed) devices
* Operates with USB 2.0 high-speed host controllers and USB 1.1 classic hosts.
* Plug and play.
* No driver installation required
* Supports all major operating systems including Windows• ®, Mac OS®, and Linux®
* Single port USB extender. Number of devices can be increased by using standard USB Hub.
* Ideal for I/O devices, printers, scanners, web cams, hard drives, flash drives and mp3 players
* Bus powered local unit at computer. D/C power at remote unit
PRODUCT SPECIFICATION
| Extend Distance | 50m over Cat.5e (or better) |
| Transmitter Connecto | 1 x USB Type B (Female) 1 x RJ45 |
| Receiver Connector | 4 x USB Type A (Female) 1 x RJ45 |
| Power adapter | Transmitter (no need) Receiver ( DC 5V) |
| Operating temperature | 0°Cto 50°C |
| Maximum USB devices supported | 8 USB devices by connecting USB Hub |

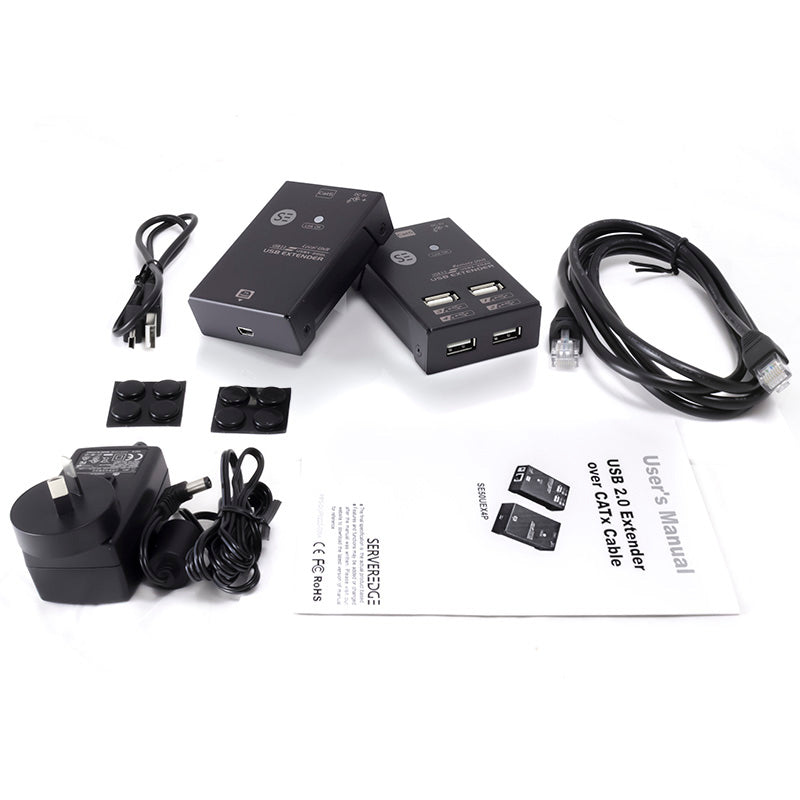

PACKAGING INCLUDES
| Rangeboost Ethernet Local Unit | 1 |
| Rangeboost Ethernet Remote Unit | 1 |
| Power Adapter | 1 |
| Warranty Card | 1 |
