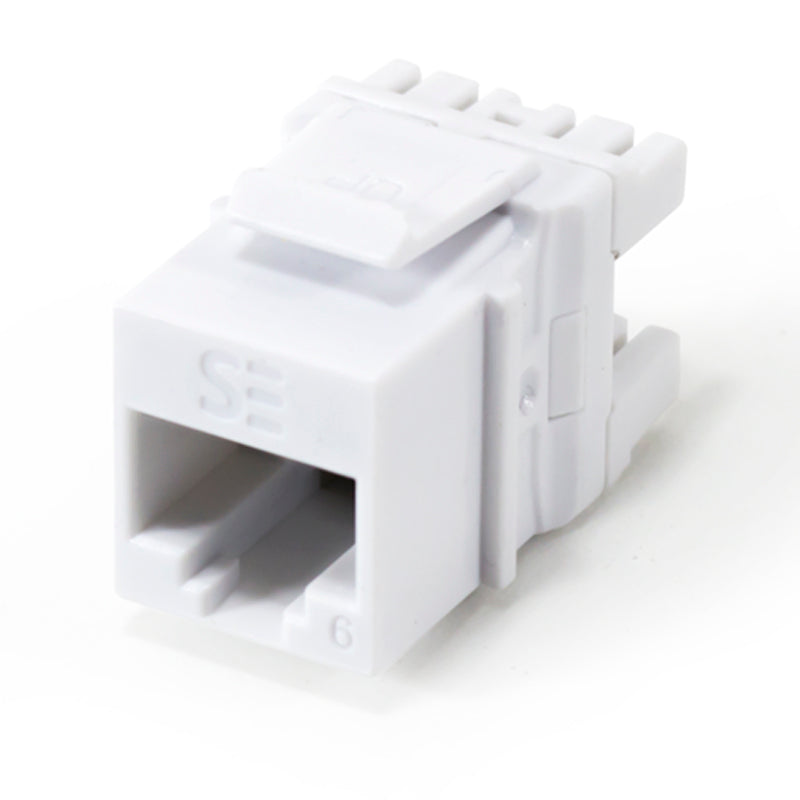

Name: UNIVERSAL CAT6, UTP, RJ45 MODULAR KEYSTONE JACK - Comes in Packs of 10
Brand: Serveredge
SKU: KSUC6Q-10WH
Availability: InStock

UNIVERSAL CAT6, UTP, RJ45 MODULAR KEYSTONE JACK - Comes in Packs of 10

Roll over image to zoom in Click on image to zoom

These modular keystone jacks are colour coded for both 568A and 568B standards and can be terminated using a 110 or krone tool. A Serveredge Quick Tool, product code QTKS, is now available saving time and money when terminating multiple jacks. Wire retaining caps are supplied and can be used to provide additional cable strain relief.

PRODUCT FEATURE

• Fully compliant to ISO/IEC 11801 Standard

• UL 94V-O rated

• Accepts solid 22-24 AWG diameter conductors

• Universal colour-coding for 568A and 568B standards

• Lead frame technology eliminates the possibility of PCB failures

• Compatible with Serveredge Quick Tool (QTKS)
