The Serveredge basic PDUs are the most efficient way to power protect your rack mount equipments. Serveredge PDUs are built to both Australian & International standards and requirements, so that your equipment can deliver the most optimum performance while using minimum of your valuable rack space. The PDUs have a Metal Alloy casing which makes them durable for rack mount use in vertical applications.
PRODUCT FEATURES
• Output Ports: (14) IEC C13, (2) IEC C19
• Overload Protection
• Vertical Mounting capabilities saves valuable rack space.
• Input Power Source: 3 Pin Captive Plug, 32A
• Power Indicator Light.
* Warranty: 2 Years Manufacturers Warranty
PRODUCT SPECIFICATIONS
| Configuration | 0RU, Vertical |
| Colour | Black |
| Maximum Depth | 45mm |
| Maximum Height | 572.2mm |
| Maximum Width | 45mm |
Output |
|
| Output | (14) IEC C13, (2) IEC C19 |
Input |
|
| Input | (1) IP56 3 Pin Round Captive Input Plug |
| Cable-length | 3m |
| Maximum input current | 32A |
| Voltage | 240V |
Conformance and Compliance |
|
| EESS Conformity |
PACKAGING INCLUDES
| SEDG-16PV-C13C19-32A | 1 |
YOU'RE REVIEWING:

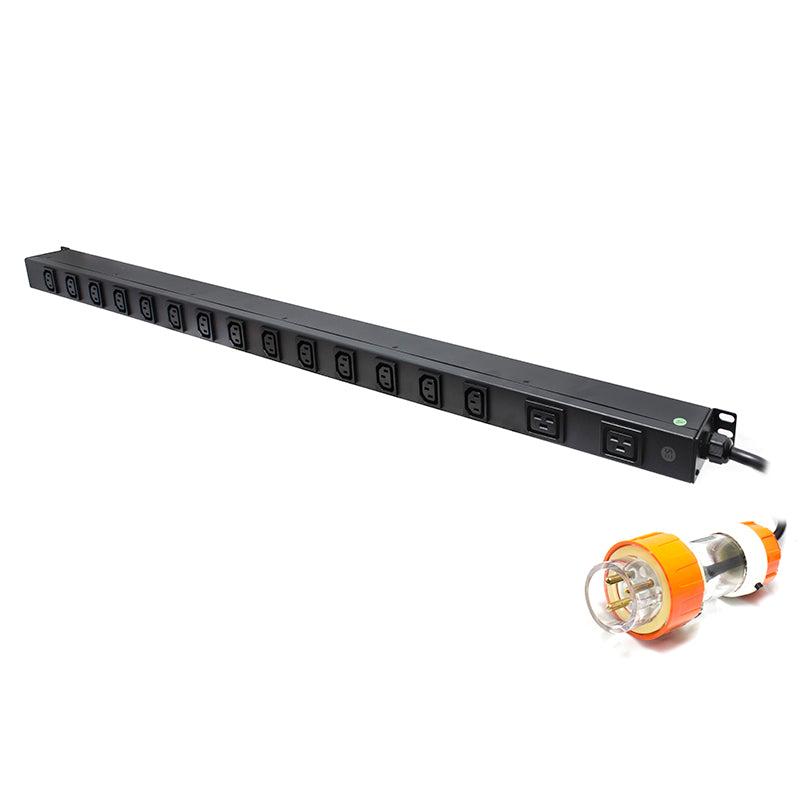

Vertical 16 Port IEC PDU, (14)IEC C13 Output, (2) IEC C19 Output, (1)IP56 3-Pin Round Captive Plug, 32A
